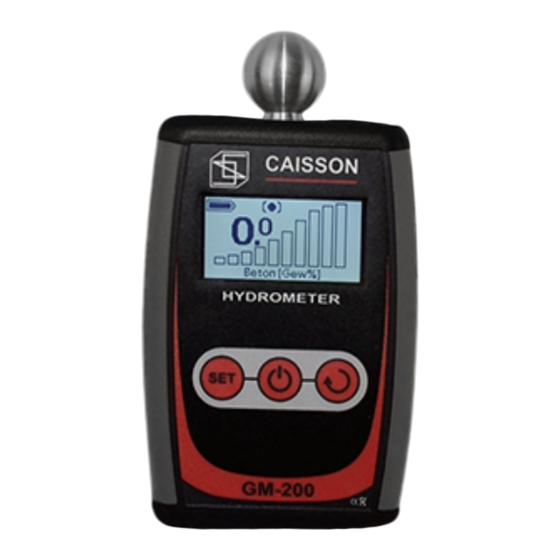

INTRODUCTION
The hydrometer is used to measure the moisture
content of concrete, plaster, cement, EPS, and also
wood.
The undeniable advantages of the method are:
high resolution,
•
ease of use,
•
non-destructive measurement.
•
The compact frame size, ergonomic shape and non-
slip rubber on the edges of the device ensure a firm
grip and convenient use.
The installed accelerometer allows for proper
alignment of the device for measurement thus
increasing the comfort of its use.
TECHNICAL DETAILS
Dimensions: 142x79x24mm
•
Weight: 200 g (with battery pack)
•
Power source: two AA batteries
•
Average operating time with full batteries: 20 hours
•
Display: monochrome with a resolution of 128x63 pixels, backlit
•
Manual screen orientation
•
Operating temperature: 5°C to 40°C
•
Scales: 9 measurement scales
•
tel: +49(0)2821-894390
GM-200
HYDROMETER
CAISSON Elektronik GmbH
Boschstrasse 16, D-47533 Kleve, Deutschland
info@caisson-gmbh.de www.caisson-gmbh.de
Advertisement
Table of Contents
Related Manuals for CAISSON GM-200
Summary of Contents for CAISSON GM-200
-
Page 1: Technical Details
Average operating time with full batteries: 20 hours • Display: monochrome with a resolution of 128x63 pixels, backlit • Manual screen orientation • Operating temperature: 5°C to 40°C • Scales: 9 measurement scales • CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland info@caisson-gmbh.de www.caisson-gmbh.de tel: +49(0)2821-894390... - Page 2 The selected scale is displayed at the bottom of the screen. To change the measurement scale, briefly press the “SELECT MATERIAL” button. CAUTION! When the device turns on, the display will show the latest selected scale. CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 3 Table 1. Names and descriptions of the measurement scales available in GM-200 Scale No. Scale name Description Relative Scale Basic scale. Shows the relative humidity of the material. Anhydrite Screed This scale is meant for moisture measurements in anhydrite floors. The displayed value is...
-
Page 4: Language Selection
“Back” option of the top level menu. GM-200 in menu mode. 1 – Select the previous menu item or decrease a value, 2 – Confirm the selected option or value, 3 – proceed to the next menu item or increase a value. -
Page 5: Power Supply
10. Power supply The GM-200 hygrometer is powered by two AA batteries. You may use either disposable or rechargeable batteries. The Battery status indicates the battery charge level. If an empty battery icon is displayed, replace the batteries. Batteries should be replaced with a new set of batteries of the same kind.
