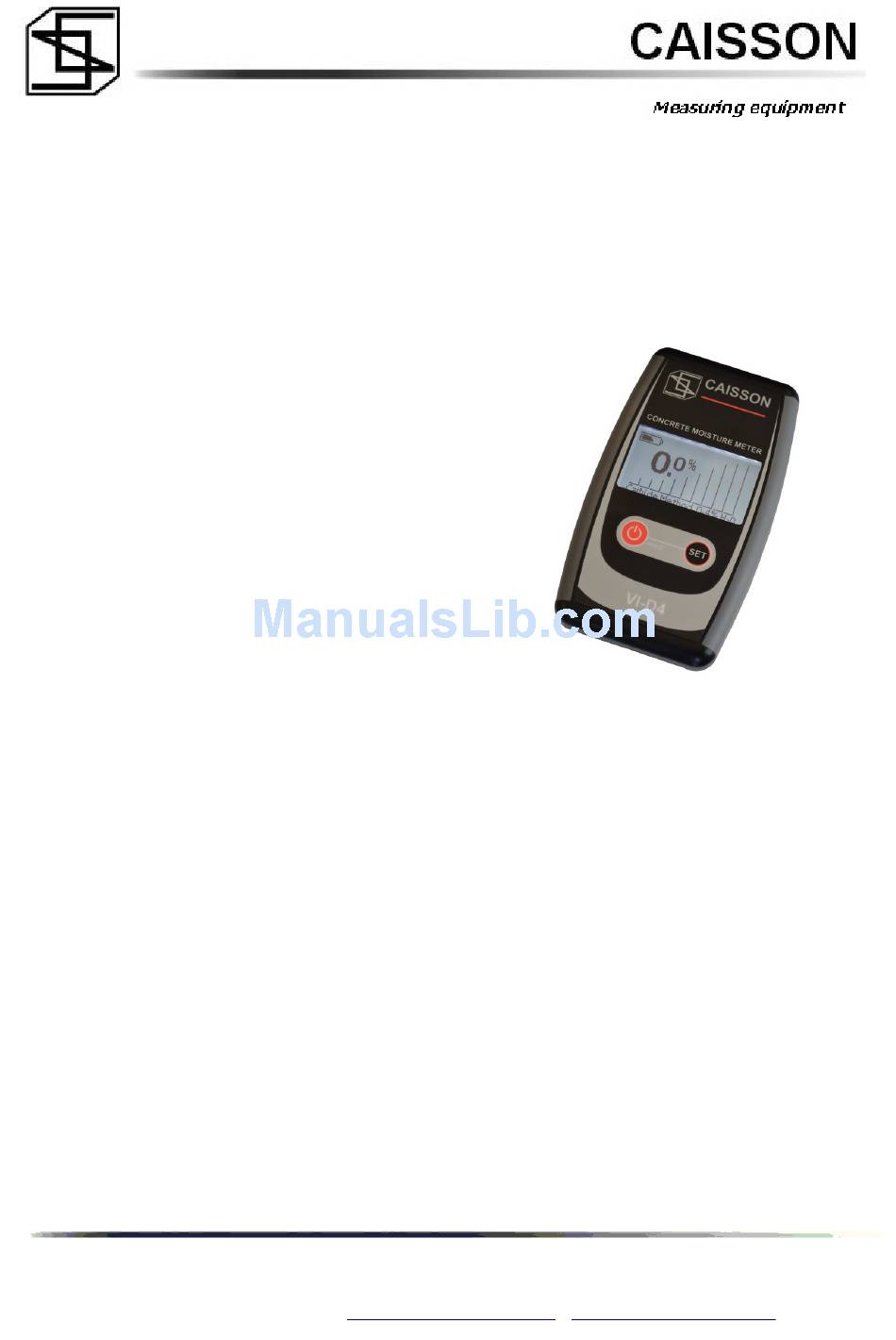

INTRODUCTION
VI-D4 meter was designed in order to measure
concrete humidity. Its unquestionable advantage is
nondestructive method of measurement with
simultaneous high accuracy and easiness of use.
TECHNICAL DETAILS
• Dimension: 147x89x33mm
• Power supply: 2xAA battery
• Average working time on one battery set:
20 hours
• Display: graphic monochrome 128x64 pixels,
size 61x33mm with backlight
• Operating temperature range: 5°C to 40°C
• Accuracy: ±0.5%
• Scales:
1 - Concrete (0-6%H2O)
2 - Cement Screed (0-6%H2O)
3 - Cement Screed (0-4% CM)
4 - Anhydrite Screed (0-3.5% H2O)
5 - Anhydrite Screed (0-1.9% CM)
6 - Caisson 0.3-15.3 Scale (0.3-15.3m)
7 - Relative Scale (0-100%)
tel: +49(0)2821-894390
VI-D4
Concrete Moisture Meter
CAISSON Elektronik GmbH
Boschstrasse 16, D-47533 Kleve, Deutschland
info@caisson-gmbh.de www.caisson-gmbh.de
Advertisement
Table of Contents
Related Manuals for CAISSON VI-D4
Summary of Contents for CAISSON VI-D4
- Page 1 VI-D4 Concrete Moisture Meter INTRODUCTION VI-D4 meter was designed in order to measure concrete humidity. Its unquestionable advantage is nondestructive method of measurement with simultaneous high accuracy and easiness of use. TECHNICAL DETAILS • Dimension: 147x89x33mm • Power supply: 2xAA battery •...
- Page 2 1. General function VI-D4 meter calculates humidity of analyzed material by measuring its electrical impedance. The relation between humidity of certain material and its impedance is directly proportional. Impedance is measured through generating low frequency electric field between electrodes. The meter measures low intensity alternating current flowing through electric field and on that basis calculates moisture of tested material.
- Page 3 All cleaning and cover-removing works should be finished at least 48 hours before taking the measurement. VI-D4 meter should not be used to measure concrete on which there is water in a liquid state. Measurements should be avoided in areas exposed to direct sunlight or other sources of heat.
- Page 4 5. Modes & Functions Normal Mode The main measuring method of VI-D4 meter is Normal mode. In this setting the measured value is refreshed continuously. Max. Hold mode If the measured area is not easily reachable and it is impossible to read the value while measuring, the Max.
- Page 5 6. Power suppl VI-D4 meter is battery powered. It uses 2 AA type batteries. Both, rechargeable and standard batteries may be used. Battery status shows the remaining capacity of the batteries. If the currently used batteries are almost out of charge, the battery icon will show empty.
- Page 6 7. Warranty Notwithstanding the statutory warranty claims, CAISSON provides a warranty in accordance with the laws of the Customer's country for a period of at least two years from the date of sale of the device to the end user. The warranty covers only those faults which are caused by defects in material or workmanship.
