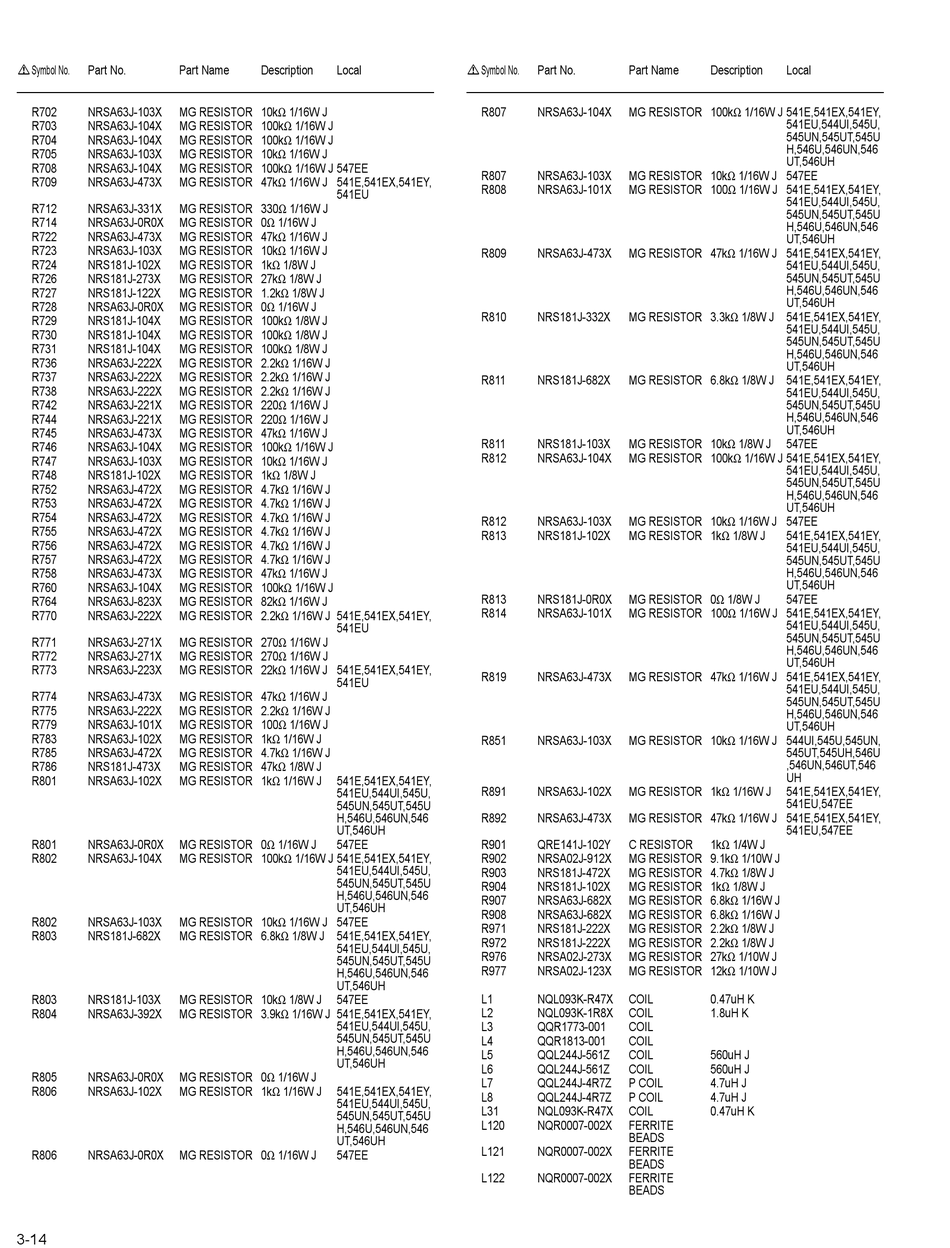

JVC KD-G541E Service Manual page 52

 Symbol No. Part No. Part Name
R702 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R703 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R704 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R705 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R708 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 547EE
R709 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 541E,541EX,541EY,
R712 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R714 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R722 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R723 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R724 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R726 NRS181J-273X MG RESISTOR 27kΩ 1/8W J
R727 NRS181J-122X MG RESISTOR 1.2kΩ 1/8W J
R728 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R729 NRS181J-104X MG RESISTOR 100kΩ 1/8W J
R730 NRS181J-104X MG RESISTOR 100kΩ 1/8W J
R731 NRS181J-104X MG RESISTOR 100kΩ 1/8W J
R736 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R737 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R738 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R742 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R744 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R745 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R746 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R747 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R748 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R752 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R753 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R754 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R755 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R756 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R757 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R758 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R760 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R764 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R770 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J 541E,541EX,541EY,
R771 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R772 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R773 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J 541E,541EX,541EY,
R774 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R775 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R779 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R783 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R785 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R786 NRS181J-473X MG RESISTOR 47kΩ 1/8W J
R801 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R801 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R802 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 541E,541EX,541EY,
R802 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 547EE
R803 NRS181J-682X MG RESISTOR 6.8kΩ 1/8W J 541E,541EX,541EY,
R803 NRS181J-103X MG RESISTOR 10kΩ 1/8W J
R804 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J 541E,541EX,541EY,
R805 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R806 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R806 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
3-14
Description Local
541EU
541EU
541EU
541E,541EX,541EY,
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
547EE
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
547EE
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541E,541EX,541EY,
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
547EE
 Symbol No. Part No. Part Name
R807 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 541E,541EX,541EY,
R807 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 547EE
R808 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 541E,541EX,541EY,
R809 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 541E,541EX,541EY,
R810 NRS181J-332X MG RESISTOR 3.3kΩ 1/8W J 541E,541EX,541EY,
R811 NRS181J-682X MG RESISTOR 6.8kΩ 1/8W J 541E,541EX,541EY,
R811 NRS181J-103X MG RESISTOR 10kΩ 1/8W J
R812 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J 541E,541EX,541EY,
R812 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 547EE
R813 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R813 NRS181J-0R0X MG RESISTOR 0Ω 1/8W J
R814 NRSA63J-101X MG RESISTOR 100Ω 1/16W J 541E,541EX,541EY,
R819 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 541E,541EX,541EY,
R851 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J 544UI,545U,545UN,
R891 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R892 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J 541E,541EX,541EY,
R901 QRE141J-102Y C RESISTOR
R902 NRSA02J-912X MG RESISTOR 9.1kΩ 1/10W J
R903 NRS181J-472X MG RESISTOR 4.7kΩ 1/8W J
R904 NRS181J-102X MG RESISTOR 1kΩ 1/8W J
R907 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R908 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R971 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R972 NRS181J-222X MG RESISTOR 2.2kΩ 1/8W J
R976 NRSA02J-273X MG RESISTOR 27kΩ 1/10W J
R977 NRSA02J-123X MG RESISTOR 12kΩ 1/10W J
L1 NQL093K-R47X COIL
L2 NQL093K-1R8X COIL
L3 QQR1773-001 COIL
L4 QQR1813-001 COIL
L5 QQL244J-561Z COIL
L6 QQL244J-561Z COIL
L7 QQL244J-4R7Z P COIL
L8 QQL244J-4R7Z P COIL
L31 NQL093K-R47X COIL
L120 NQR0007-002X FERRITE
BEADS
L121 NQR0007-002X FERRITE
BEADS
L122 NQR0007-002X FERRITE
BEADS
Description Local
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
547EE
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541E,541EX,541EY,
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
547EE
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
541EU,544UI,545U,
545UN,545UT,545U
H,546U,546UN,546
UT,546UH
545UT,545UH,546U
,546UN,546UT,546
UH
541E,541EX,541EY,
541EU,547EE
541EU,547EE
1kΩ 1/4W J
0.47uH K
1.8uH K
560uH J
560uH J
4.7uH J
4.7uH J
0.47uH K
