3.2.6 Removing the loading/feed motor assembly

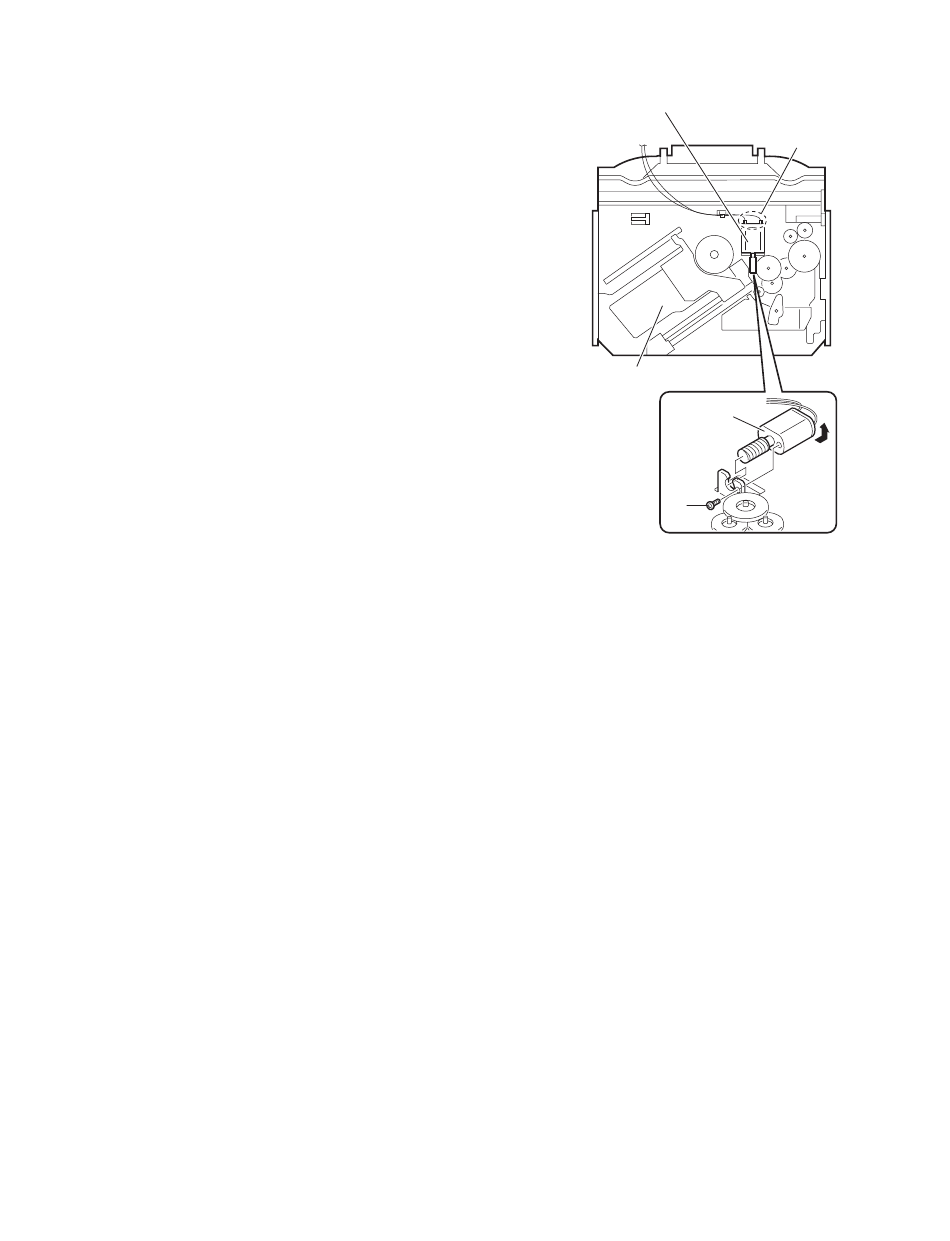

(See Fig.9)
• Remove the top cover, base board and chassis unit.
From the bottom side of the chassis unit, remove the screw D
and take out the loading/feed motor assembly in the direction of
the arrow.
Reference:
Remove the wires from the soldered sections g of the loading/
feed motor assembly as required.
Loading/feed motor assembly
Chassis unit
Loading/feed
motor
assembly
D
Fig.9
(No.MA384<Rev.001>)1-15
g
