3.2.11 Removing the mode switch

(See Fig.16)
• Remove the top cover, base board, chassis unit, clamper assembly,
trigger arm and top plate assembly.
(1) From the top side of the top plate assembly, remove the
link gear spring from the sections x of the link gear L and
link gear R.
(2) Remove the link gear L in an upward direction while releasing
the claws y of the link gear L in the direction of the arrow.
(3) Move the mode switch in the direction of the arrow 1 to remove
the sections z of the top plate assembly.
(4) Move the mode switch in the direction of the arrow 2 and
remove the mode switch from the sections (aa, ab).
Note:
When reattaching the link gear L, attach it after aligning the
hole ac of the link gear L to the hole ac of the link gear R.
Reference:
When reassembling, reverse the above removing procedure.
1-18 (No.MA384<Rev.001>)
Top plate assembly
Link gear spring
aa
Link gear L
Link gear R
Link Link
gear R gear L
ac ac

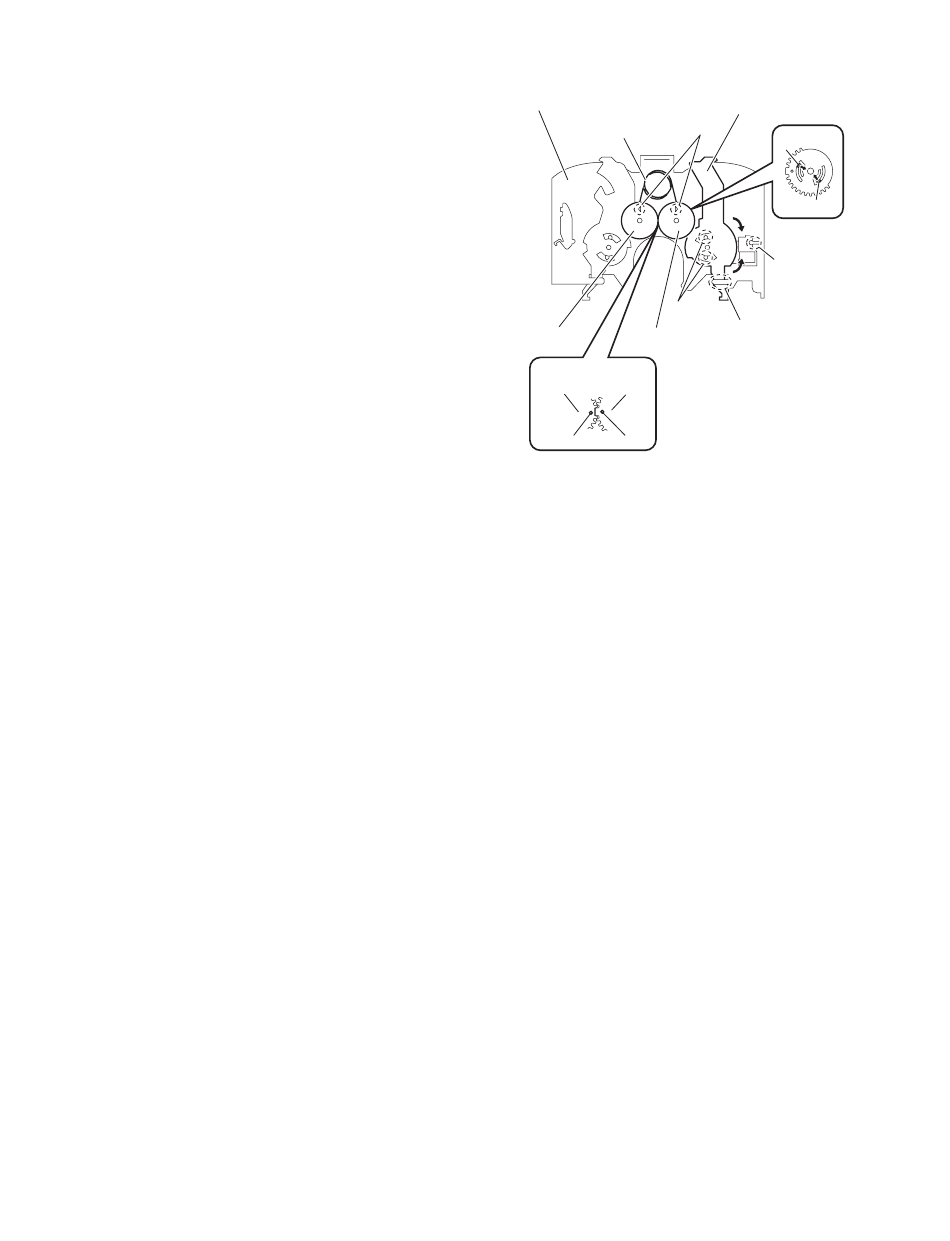

Fig.16
Mode switch
x
y
y
1
ab
2
z
