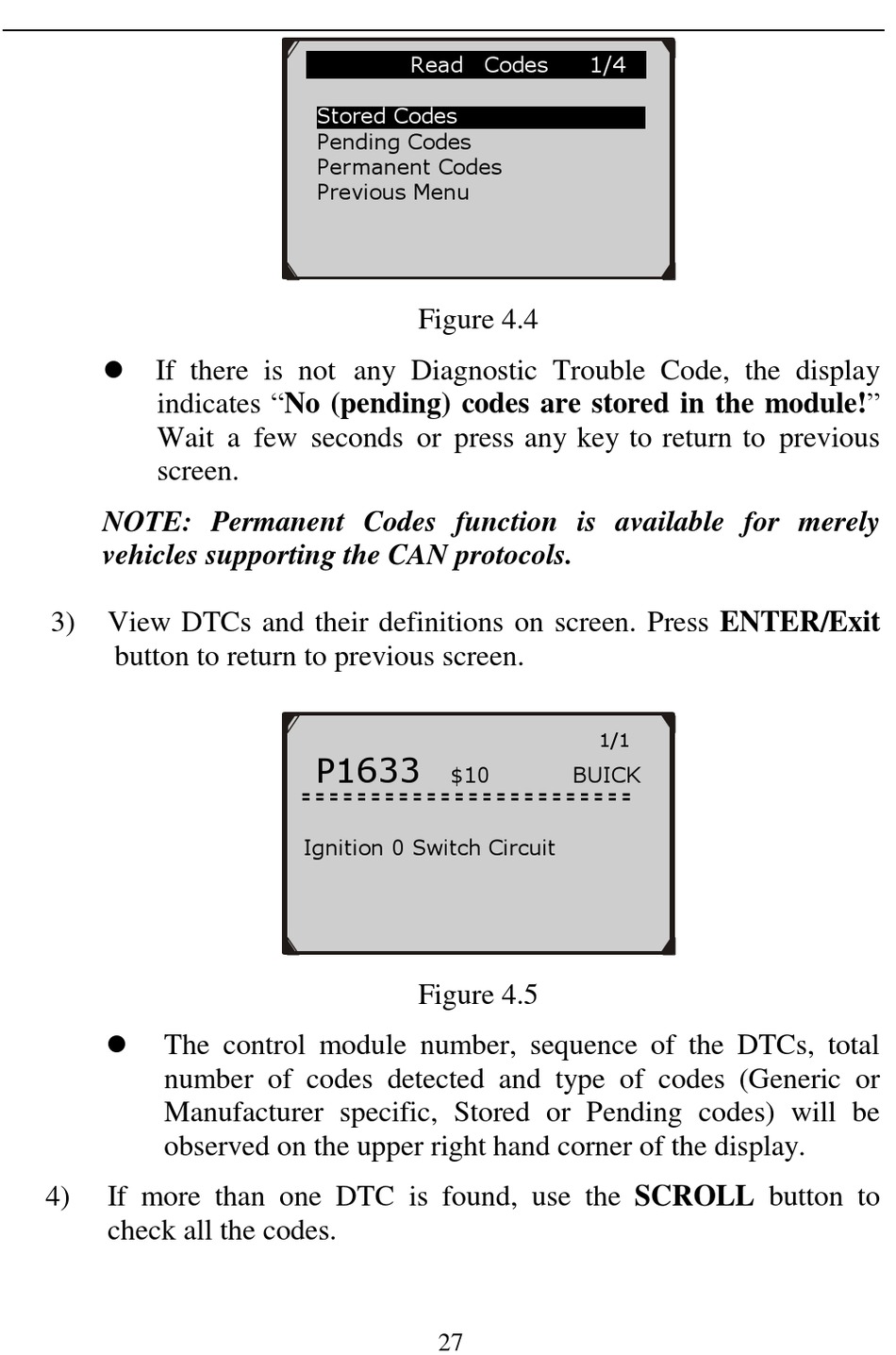

If there is not any Diagnostic Trouble Code, the display
indicates "No (pending) codes are stored in the module!"
Wait a few seconds or press any key to return to previous
screen.
NOTE: Permanent Codes function is available for merely
vehicles supporting the CAN protocols.
3) View DTCs and their definitions on screen. Press ENTER/Exit
button to return to previous screen.

The control module number, sequence of the DTCs, total
number of codes detected and type of codes (Generic or
Manufacturer specific, Stored or Pending codes) will be
observed on the upper right hand corner of the display.
4) If more than one DTC is found, use the SCROLL button to
check all the codes.
Read Codes
Stored Codes
Pending Codes
Permanent Codes
Previous Menu
Figure 4.4
P1633
$10
Ignition 0 Switch Circuit
Figure 4.5
27
1/4
1/1
