3) When completed, select Previous Menu and press the
ENTER/Exit button to exit.
Update Mode
This function allows you to update the scan tool software and DTC
library through a computer.

To update your scan tool, you need the following items.
AutoLink
A PC or laptop with USB ports
A USB cable
1) Download the programs to be updated in
your computer.
2) Run the MaxiLink II Tool Kit in your computer. (Figure 3.11)
3) Connect the scan tool to your computer through the USB cable
provided.
4) From System Setup screen in scan tool, use the SCROLL
button to select Update Mode, and press the ENTER/Exit
button.
5) Select the programs to be updated in your computer. There are
two types of programs: operating system and DTC library
(Figure 3.11).
6) Click Update in the MaxiLink II Tool Kit window to begin
updating.

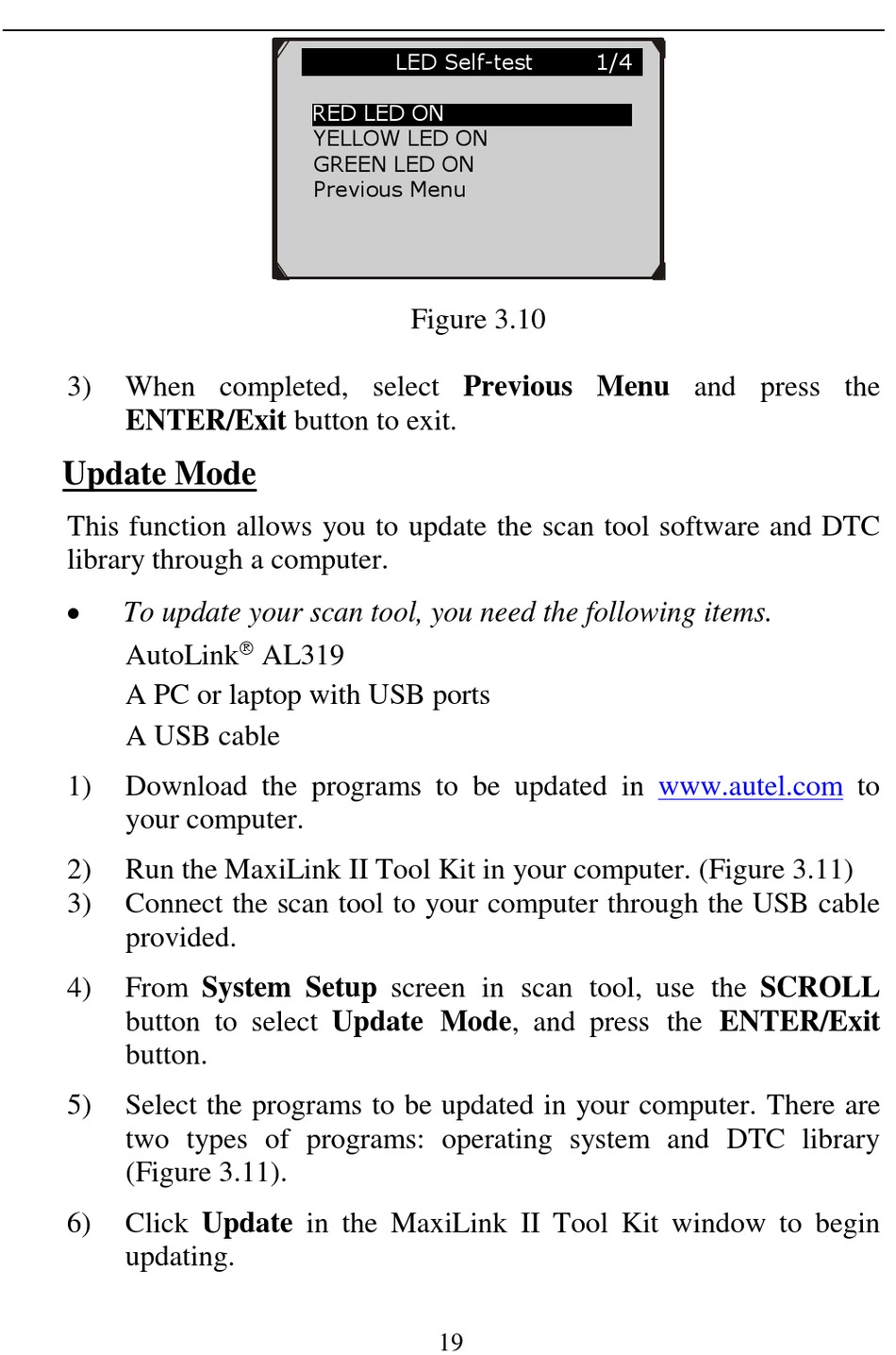

LED Self-test
RED LED ON
YELLOW LED ON
GREEN LED ON
Previous Menu

AL319
Figure 3.10
19
1/4
www.autel.com to
