Typical Unit Parts Arrangement
GROUND LUG
CONTACTOR 1-POLE (K1-1)
HIGH PRESSURE
SWITCH (S4)
LIQUID LINE
SERVICE VALVE
LIQUID LINE
SERVICE VALVE
PORT
FIELD CONNECTION
FOR LIQUID LINE SET
FIELD CONNECTION
FOR SUCTION LINE
TYPICAL PLUMBING
(COPELAND COMPRESSOR)
COMPRESSOR
HARNESS
SUCTION LINE
SERVICE VALVE
PORT
SUCTION LINE
SERVICE VALVE

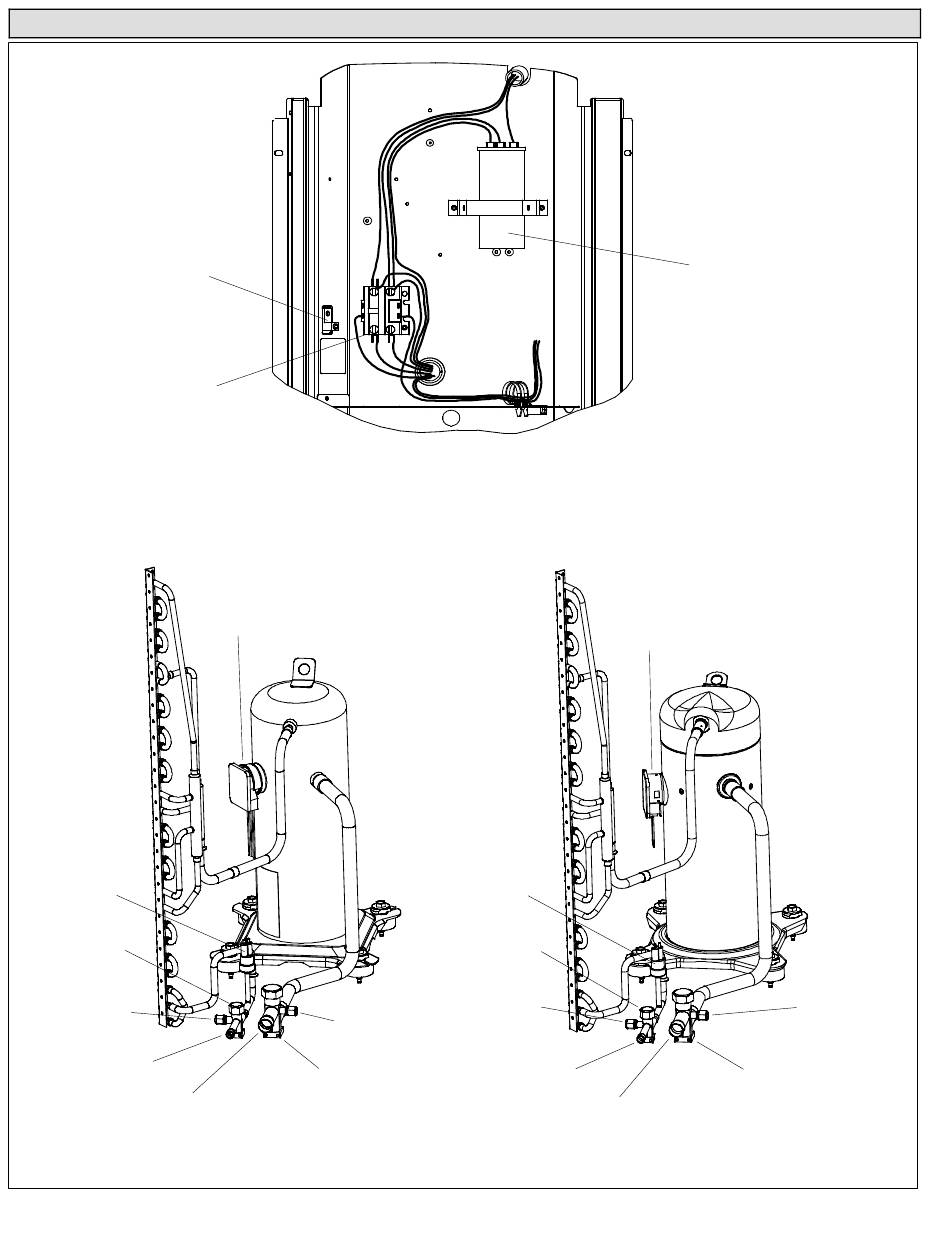

Figure 1. Typical Parts Arrangement
CONTROL BOX
HIGH PRESSURE
SWITCH (S4)
LIQUID LINE
SERVICE VALVE
LIQUID LINE
SERVICE VALVE
PORT
FIELD CONNECTION
FOR LIQUID LINE SET
FIELD CONNECTION
FOR SUCTION LINE
Page 4
CAPACITOR (C12)
COMPRESSOR
HARNESS
SUCTION LINE
SERVICE VALVE
TYPICAL PLUMBING
(LG COMPRESSOR)
SUCTION LINE
SERVICE VALVE
PORT
