Fisher & Paykel GWL15 Installation Instructions

NOTE TO THE INSTALLER
FINAL CHECK LIST
HAVE YOU CARRIED OUT THE FOLLOWING

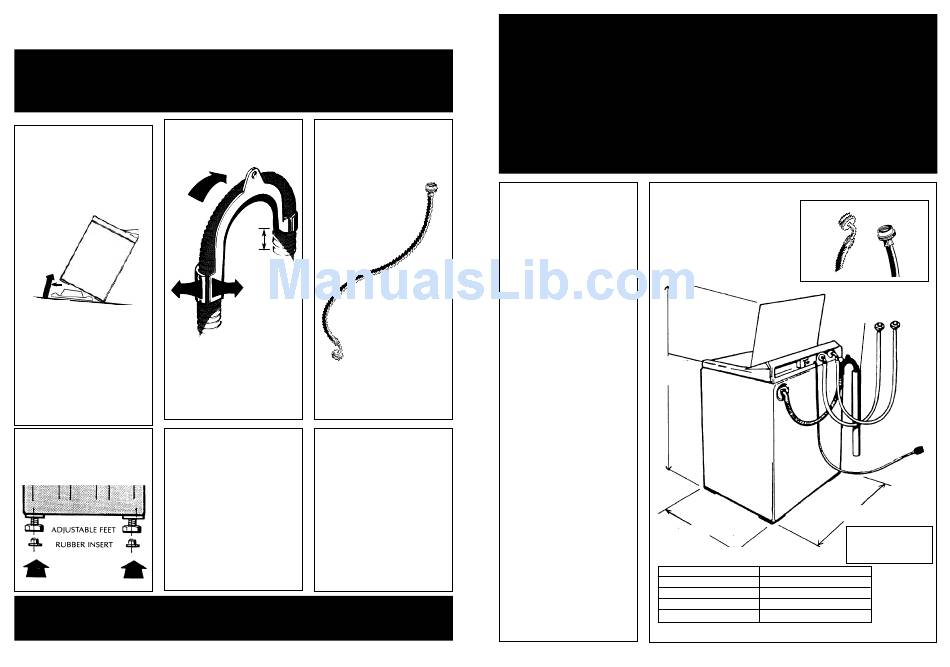

REMOVE TRANSIT
BOTTOM PACKER
PULL HOSE
THROUGH
GUIDE
Bottom packer MUST be removed
from the base of the washer, before
The drain hose guide MUST be
the basket packer is removed.
fitted to the drain hose and should
not extend more than 3/4" (20mm)
from the end of the guide. Place
the drain hose in tub or standpipe.
LEVELING
Make sure washer is level and MUST be properly grounded to
four rubber inserts are properly conform to local codes and
installed. ordinances.
WARNING: Improper connection of
equipment-grounding conductor can
result in a risk of electric shock. Check
with a qualified electrician or
serviceman if you are in doubt as to
whether the appliance is properly
grounded.
READ AND OBSERVE ALL SAFETY INSTRUCTIONS - CONSULT
THE PRODUCT USE & CARE BOOK FOR CUSTOMER CAUTIONS
Specification subject to change without notice
After you have followed the procedures on
the previous pages. Check the following.
DRAIN HOSE INLET HOSE
CONNECTIONS
3/4"
(20mm)
Filter end must
be connected
to faucet.
Washer
end of
hose.
GROUNDING OPERATION
1.Turn faucets on. Check for leaks,
noise, vibration, correct water
temperatures and proper
operation in spin.
2.Turn hot and cold water faucets off
and instruct customer to do the
same when washer is not in use.
3. Give customer the Use & Care
Book and Installation Instructions.
INSTALLATION INSTRUCTIONS FOR YOUR
BEFORE YOU BEGIN - READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to installer: Be sure to leave these instructions with the Customer.
Note to Consumer: Keep these instructions with your Use & Care Book for future reference.
Faucet
INSTALLATION REQUIREMENTS
end of
hose
LOCATION
Washer must be installed on firm
flooring to minimize vibration during
spin cycles. Concrete flooring is
best, but wood base is sufficient
providing floor support meets FHA
standards.
Washer should not be installed on
rugs or exposed to the weather.
PLUMBING
Water Temperature
Your cold water should not exceed
95˚F (35˚C) or your hot water exceed
150˚F (65˚C). Temperatures above
this may damage your washer.
Shut off valves
Both hot and cold shut-off valves
(faucets) should be available in
laundry area.
Drain
Water may be drained into a
standpipe or set tub. The standpipe
1
must be 1 / " (38mm) minimum
2
inside diameter and must be open to
the atmosphere.
ELECTRICAL
This appliance must be supplied with
110V-120V, 60Hz, and connected
to an individual, properly grounded
branch circuit, protected by a 15 or
20 amp circuit breaker or time
delay fuse.
P/N 420264A
ECO SMART WASHER
Note: This appliance must be properly grounded.
SPECIFICATIONS
Lid Clearance
HEIGHT
Allow for
adjustable
feet
DEPTH
DIMENSIONS
MODEL
DEPTH
WIDTH
HEIGHT to top of console 40 1 /2
HEIGHT LID OPEN 1 /2
55
Specification subject to change without notice
Faucet
Washer
end of
end of
hose
hose
Standpipe Height
1 /2
33 " to 78"
WIDTH
Inlet water pressure
Max 150 psi (1MPa)
Min 3 psi (20kPa )
All models
1 /2 " (650mm)
25
1 /2 " (650mm)
25
"- 41 1 /2 " (1020-1050mm)
"- 56 1 /2 " (1410-1440mm)
