Page 2

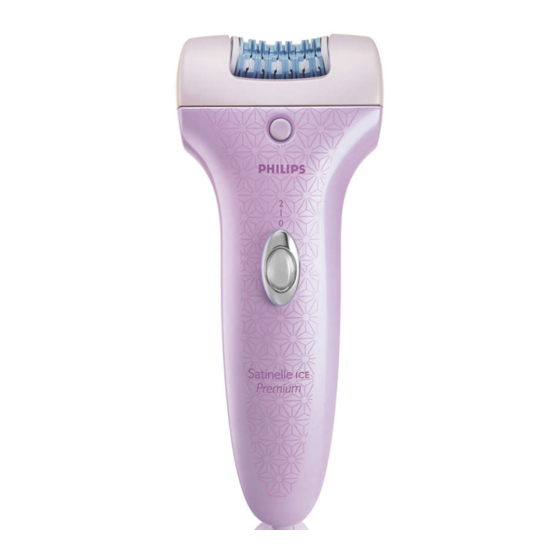

PARTS LIST & EXPLODED VIEW HP6502/Japan 10 * Service code Description Service code Description 4203 035 53880 Epilation Head 4203 035 53230 Cooling Accu Legs 4203 035 52610 Protecting Cap 4203 035 52640 Protecting Sleeve 4203 035 53070 Shaving Foil 4203 035 53890 Soothing Cap 4203 035 68210...
Page 3
Instruction for exchanging the Gearwheel 3 HP6502/Japan Remove the small gearing cover with a small screwdriver. Here you see the opened gearing. As you can see, the small edge from the release knob is hampering you by removing the damaged gearwheel. Cut this small edge with a very sharp knife, so that the damaged gearwheel becomes free.
Page 4
Instruction for exchanging the Gearwheel 3 HP6502/Japan Cutted edge. Now you are able to exchange the damaged gearwheel.
