Summary of Contents for oset 16.0 ECO

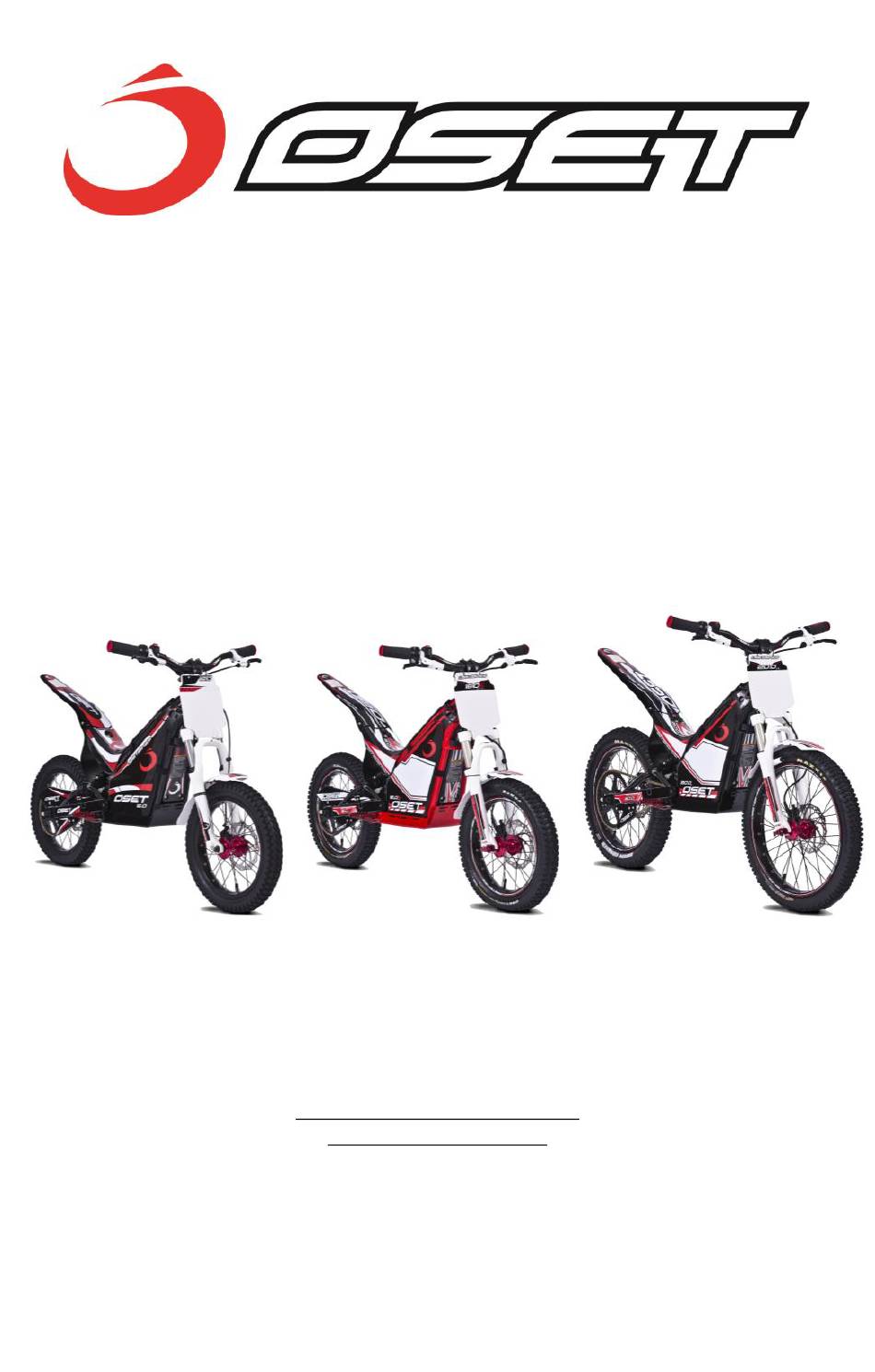

- Page 1 OWNERS MANUAL 2015 OSET 16.0 Eco, 16.0 Racing & 20.0 Lite OSET Corp 425 Kristen Ct, Unit 6 Montrose, CO 81401, USA 303 990-2390. http://www.OSETBIKES.com info@OSETBIKES.com INS011419 - v1.0...
-
Page 2: Introduction
They are brilliant for practicing in back yards; front yards, garages, and even indoors! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. OSET’s may only be ridden in safe areas where all laws are being followed and all required permissions are given. -
Page 3: Please Read
See distributor contact information on the osetbikes.com web site. OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. -
Page 4: Warnings, Cautions And Notes
Please read, understand and follow all Warning, Caution and Note notices on your OSET electric bike and those included in this Manual. If you do not understand any of this important information, please contact your selling dealer/distributor or the OSET Customer... - Page 5 WARNING: OFFROAD USE ONLY. It is illegal and hazardous to use this vehicle on streets and thoroughfares. Use on streets exposes the rider to hazards from motorists and other vehicles. Use on streets can lead to accidents resulting in death or serious injury, and property damage.
- Page 6 Please don’t ever allow your OSET to be ridden without one. Riders should also wear suitable riding gear - gloves, eye protection and boots. Boots should NOT HAVE LACES.
- Page 7 • It’s the law; obey it: Obey all laws. OSET’s are for OFF-ROAD USE ONLY. OSET bikes can not be used on public roads or sidewalks. The purchaser, owner, and/or riders of this machine are directly responsible to know and obey all local, state, and federal laws regarding the riding and use of this machine.
- Page 8 PLEASE call OSET Customer Service. WARNING! OSET Bikes are designed to operate at specific voltages only. Use of any other battery with a voltage higher than that specified will result in motor failure. OSET CORP considers such modifications and/or changes to its...
-
Page 9: Table Of Contents
Page 25 Wiring Information Page 26 Wiring diagram Page 27 Electrical diagnostic flow chart Page 28 Setting Up Your OSET for Riding: Page 29 Riding Instructions and Safety Tips: Page 30 1. Stationary Learning: Page 30 2. First Ride: Page 31 3. -
Page 10: Oset 16.0 Eco
- Foot pegs - Cast Alloy. - Handlebars - Alloy. Motor: - 800w 36v OSET Neodymium magnet DC motor. Gearing: - 9T front sprocket, 68T rear. #219 chain Controller: - 36 volt, 80 amp pulse width modulating, with inline relay and fuse. -
Page 11: Oset 16.0 Racing
SPECIFICATIONS – OSET 16.0 Racing Performance: - Maximum Speed - 15mph - Maximum Range - 8 miles - Weight Limit (Rider) - 80lbs (36.5kg) NOTE! Many factors affect speed and range capabilities. Terrain, average speed, rider weight, tire pressures, wind, hills etc. all have an impact. -
Page 12: Oset 20.0 Lite
- Handlebars - Alloy. Motor: - 900w 36v - Rare earth neodymium magnet motor (OSET 48v Motor running at 36v) Gearing: - 10T front sprocket, 86T rear. #219 chain Controller: - 36 volt, 80 amp pulse width modulating, with inline relay and fuse. -
Page 13: Unpacking And Assembly
(16.0R & 20.0L only) 1/ Manual for rear shock 2. Place your OSET on a solid & level stand, with both wheels off the ground. 3. Remove all the packing materials. 4. Using the supplied Allen wrench, make sure the steering stem is in the forward facing position and tighten the top and side bolts securely and evenly. - Page 14 5. Fit front mudguard using the bolts, nuts & spacers provided (picture 1). 6. Remove disk pad spacer (picture 2 - this item is used for transport only). 7. Loosen caliper Allen bolts (Picture 5 - 5mm wrench) - so it will move side to side so as to aid fitting of wheel.
- Page 15 15. Compress and check each brake lever in turn. The lever should not compress completely to the bar. Each individual brake should hold the bike securely when you push the OSET against the brake. If your brake needs adjustment, follow the instructions on page 20. Learning riders should be aware which lever operates which brake.
-
Page 16: Switches, Dials And Indicators
SWITCHES, DIALS & INDICATORS: The key switch is located on top of the tank, in front of the rubber bung. The charge port can be found on the left side of the frame next to the steerer tube. Key Switch: A The key switch turns the power on and off. -
Page 17: Power Dial
DRIVE TRAIN: Your OSET features a traditional chain and sprockets. It is direct drive, with no gears. With the motor mounted in the swingarm, suspension movement has no effect on tension. -
Page 18: Motor Performance
MOTOR PERFORMANCE & MAINTENANCE: The OSET motor has been designed for high performance. Do not power wash the motor. Check that the sprocket bolt is tight periodically. Water proof grease can be applied around the shaft where it enters the motor for additional protection from the elements. -
Page 19: Suspension
The 16.0R and 20.0L have telescopic front ‘air’ forks with rebound adjustment. A specific high pressure air pump (fig 1) is required to add pressure which can be purchased from OSET. The compression (fig 2) and rebound (fig 3) is simply adjusted by the dial/knob shown in the images below. -
Page 20: Daily Maintenance And Cleaning
FRONT WHEEL REMOVAL AND INSTALLATION: Please refer to the section on assembling your OSET bike (page 13) for information on installing the front wheel, and reverse the instructions for removal. REAR WHEEL REMOVAL AND INSTALLATION: 1. -
Page 21: Brake Adjustment
Ref 3 Ref 4 Ref 5 Ref 6 To re-install the wheel reverse the above procedures. Ensure the chain is correctly adjusted and lubricated, the wheel is aligned, and all nuts and bolts are tight BRAKE ADJUSTMENT: A separate owners’ manual is provided with full details on brake maintenance and adjustment. - Page 22 - With the wheel raised, pull the brake lever. This will allow the caliper to ‘center’ on the disc. - With the lever still holding the pads tightly on the disc, re-tighten the caliper bolts. - If the wheel does not spin freely with the brake released and further adjustment is required beyond the limits of the built in adjustment, please read on for adjustment details for cable and hydraulic brakes.
-
Page 23: Battery Use, Care And Maintenance
If you have any questions about the batteries or their usage, please do not hesitate to contact the OSET Customer Service Department. WARNING! Never short circuit the discharge terminals of the batteries. A short circuit will damage the battery and could cause a fire resulting in severe injury or death, and property damage. -
Page 24: Charging Instructions
"starved electrolyte." The AGM Battery will not leak acid if broken. • Check that the charger is switched to the correct voltage for your country. • Ensure that the Power Switch on your OSET is switched OFF before connecting the charger to the charge port. -
Page 25: Important Notes About Charging
Additional Battery Care Guide: Your OSET features 36V drive system, with 3 x 10ah batteries joined in series to make the 36v. It is very important that the batteries are kept ‘balanced’. If one battery is driven to a lower voltage than the others, it can have the knock on effect of it undercharging, while the other batteries in the system overcharge to compensate. -
Page 26: Battery Removal And Installation
To Re-Install the batteries and bag, reverse the above procedure. LONG TERM STORAGE: If you do not plan to use your OSET for an extended period of time (1 month or more), remove the batteries from the bike for storage. -
Page 27: Wiring Information
WARNING! There are no user serviceable elements incorporated into the motor, motor controller, batteries, battery charger, throttle, or wiring harness of your OSET electric bike. DO NOT ATTEMPT TO DISASSEMBLE OR ADJUST ANY OF THESE COMPONENTS. Doing so may cause extensive damage to these components, will void your warranty, and may cause a hazardous condition. -
Page 28: Wiring Diagram
WIRING DIAGRAM:... -
Page 29: Electrical Diagnostic Flow Chart
Electrical Diagnostic Flow Chart:... -
Page 30: Setting Up Your Oset For Riding
SETTING UP YOUR OSET FOR RIDING: Set the speed dial to the correct level for the rider. Low for non- experts and all riders under 10 years old. ALWAYS CHECK BEFORE RIDING. Set the ‘response’ dial to the correct level for the rider. -
Page 31: Riding Instructions And Safety Tips
NOTE! As the responsible adult, you must ensure that the OSET and its rider are ready to ride, every time. The bike must be set to the abilities of the rider, and you must ALWAYS supervise when, where and how the bike is ridden. Children can lose concentration quickly, and be distracted easily. -
Page 32: First Ride
When stopped, turn the power off. WARNING! OFF ROAD USE ONLY! OSET Mini Bikes are designed for off road use only and must not be used on public roads or sidewalks. Please check and obey all local laws. CAUTION! If the rider drops the bike, ensure that the power is turned OFF before lifting the bike. -
Page 33: Learning To Stand Up
OSET bikes are designed to be ridden standing up. If the machine is too large for the child, they will have no leverage on the bike, and be unable to develop techniques. - Page 34 This manual should be enough to get you started. Further techniques can not be covered in this manual. When learning any technique the most important thing is to do so slowly and safely. Remember that OSET bikes are a Trials bike design, and therefore designed and developed for slow speed riding.
-
Page 35: Contact Us
WARNING! BE SAFE! Never use OSET bikes in unsafe situations! Follow all instructions. Follow all laws. VISIT THE OSET WEB SITE FOR YOUR COUNTRY TO: BUY SPARE PARTS AND ACCESSORIES. READ ARTICLES ON ADVANCED MACHINE SET-UP AND TECHNIQUES. Importer information can be found on www.osetbikes.com. -
Page 36: Limited Warranty
The liability of OSET hereunder is expressly limited to the replacement of goods complying with this warranty or at the sole election of OSET to the repayment of an amount equivalent to the purchase price of the product in question. CAUTION: Some states...
