FlashLogic FLC-CH(RS)-CH5-[FLRSCH5]-EN Install Manual page 11

MODULE
A
RF PORT/WEBLINK PORT
G
F TELEMATIC PORT
B
E
C
D
A
MS2 MS2
2 1
4 3
6 5
B
2 1
4 3
6 5
8 7
MS1 MS1
10 9
12 11
14 13
16 15
18 17
20 19
C
2 1 01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
4 3 02 GRAY - RAP SHUTDOWN (-) OUTPUT
6 5
8 7
10 9
12 11 11 GRAY/GREEN - HORN (-) OUTPUT
D
2 1
4 3
04 GRAY/WHITE - HOOD STATUS (-) INPUT
6 5
8 7
10 9 WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2015

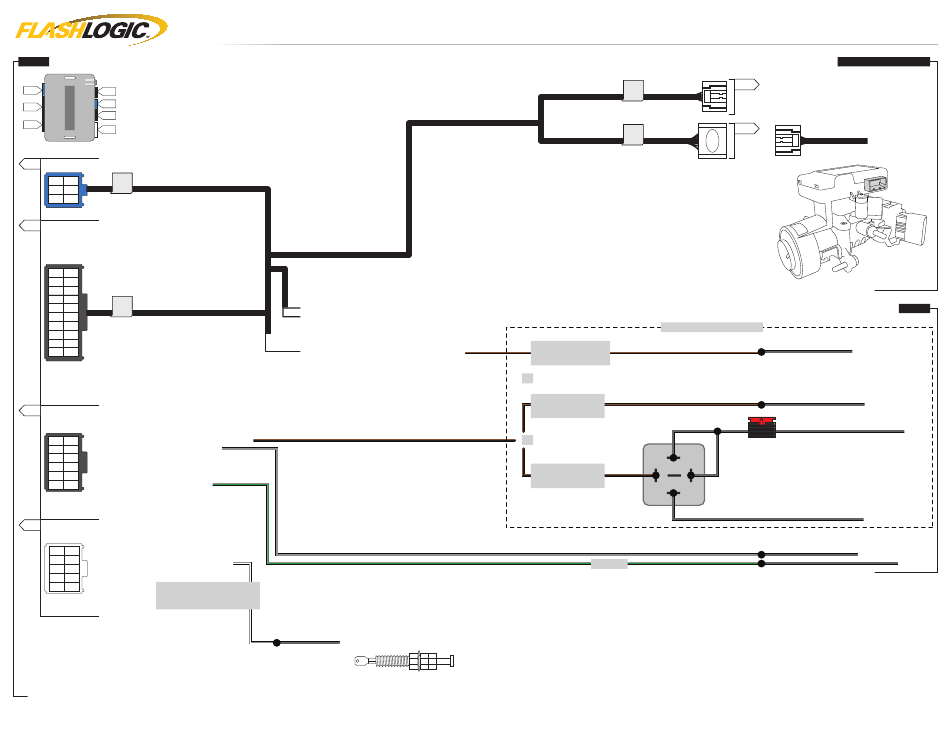

TYPE 2 - WIRING DIAGRAM - 1 OF 1
PURPLE (NC)
WHITE/YELLOW (NC)
WHITE/BROWN - PARKING LIGHT (MUX) OUTPUT
AFTERMARKET HOOD SWITCH (-)
FLC-CH(RS)-CH5-[FLRSCH5]-EN
VS2 VS2
VS1 VS1
PARKING LIGHT CONNECTION
CONNECT IF VEHICLE
IS EQUIPPED WITH
PARKING LIGHT (MUX)
OR
CONNECT IF VEHICLE
IS EQUIPPED WITH
PARKING LIGHT (-)
OR
87
85 86
CONNECT IF VEHICLE
IS EQUIPPED WITH
PARKING LIGHT (+) 87A
30
OPTIONAL
PAGE 11 OF 24
• 20151222
DOC.: #25395
VEHICLE IGNITION SWITCH
A1
SKIM CONNECTOR
A2
SKIM HARNESS
A1
VEHICLE
PARKING LIGHT (MUX)
PARKING LIGHT (-)
10 AMPS
12V (+)
PARKING LIGHT (+)
DRIVER DOOR PIN (-)
HORN (-)
www.flashlogic.com
