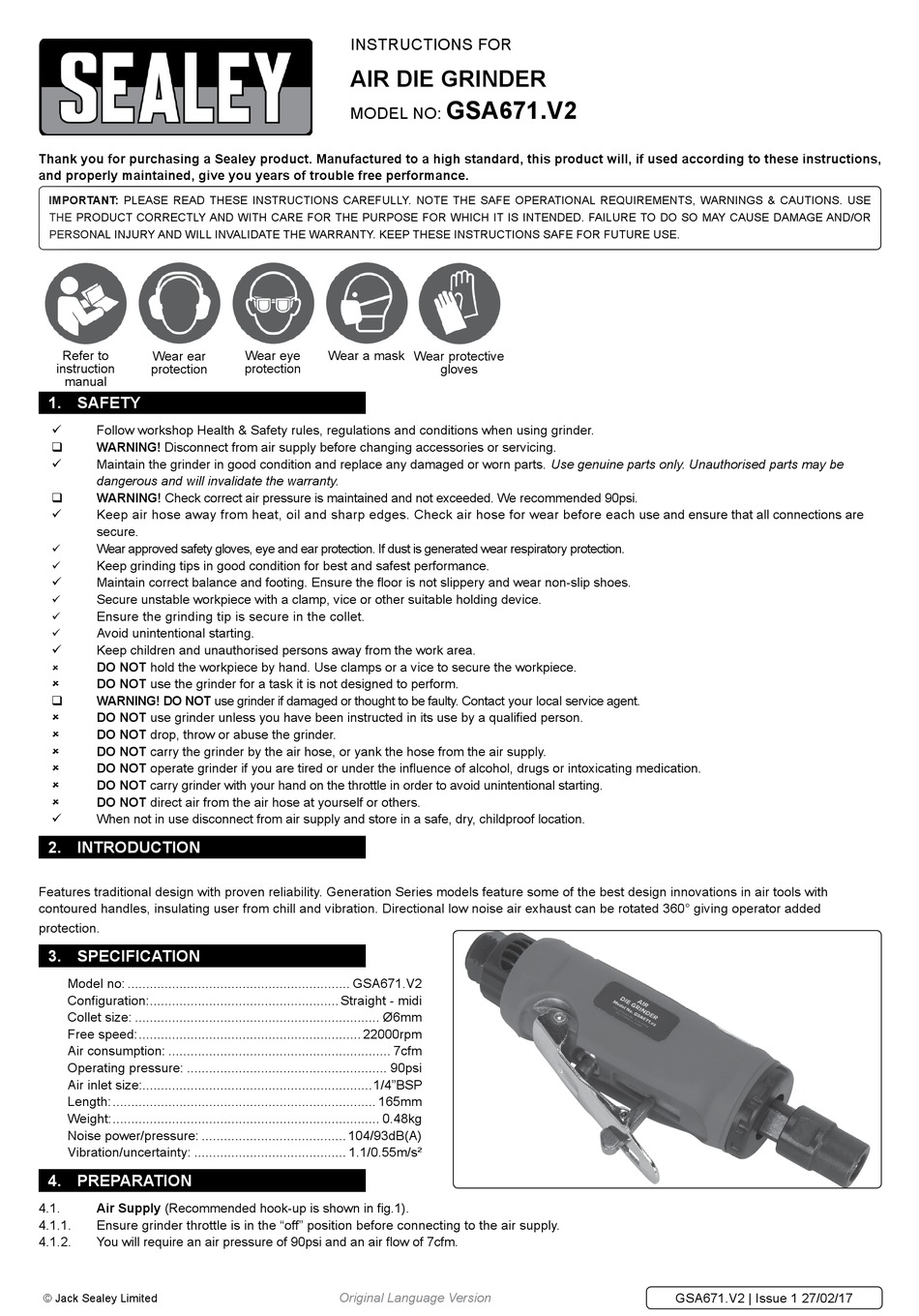

Sealey GSA671.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
Wear ear
instruction protection
manual
1. SaFeTY
follow workshop Health & safety rules, regulations and conditions when using grinder.
9
Warning! disconnect from air supply before changing accessories or servicing.
‰
maintain the grinder in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
Warning! check correct air pressure is maintained and not exceeded. We recommended 90psi.
‰
Keep air hose away from heat, oil and sharp edges. check air hose for wear before each use and ensure that all connections are
9
secure.
Wear approved safety gloves, eye and ear protection. if dust is generated wear respiratory protection.
9
Keep grinding tips in good condition for best and safest performance.
9
maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
9
secure unstable workpiece with a clamp, vice or other suitable holding device.
9
ensure the grinding tip is secure in the collet.
9
Avoid unintentional starting.
9
Keep children and unauthorised persons away from the work area.
9
dO nOT hold the workpiece by hand. use clamps or a vice to secure the workpiece.
8
dO nOT use the grinder for a task it is not designed to perform.
8
Warning! dO nOT use grinder if damaged or thought to be faulty. contact your local service agent.
‰
dO nOT use grinder unless you have been instructed in its use by a qualified person.
8
dO nOT drop, throw or abuse the grinder.
8
dO nOT carry the grinder by the air hose, or yank the hose from the air supply.
8
dO nOT operate grinder if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
dO nOT carry grinder with your hand on the throttle in order to avoid unintentional starting.
8
dO nOT direct air from the air hose at yourself or others.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
2. inTrOducTiOn
features traditional design with proven reliability. Generation series models feature some of the best design innovations in air tools with
contoured handles, insulating user from chill and vibration. directional low noise air exhaust can be rotated 360° giving operator added
protection.
3. SpeciFicaTiOn
model no: ............................................................ GsA671.V2
configuration: ................................................... straight - midi
collet size: .................................................................. Ø6mm
free speed: ............................................................ 22000rpm
Air consumption: ............................................................ 7cfm
operating pressure: ...................................................... 90psi
Air inlet size:..............................................................1/4"BsP
length: ....................................................................... 165mm
Weight: ........................................................................ 0.48kg
noise power/pressure: ....................................... 104/93dB(A)
Vibration/uncertainty: ......................................... 1.1/0.55m/s²
4. preparaTiOn
4.1. air Supply (recommended hook-up is shown in fig.1).
4.1.1. ensure grinder throttle is in the "off" position before connecting to the air supply.
4.1.2. You will require an air pressure of 90psi and an air flow of 7cfm.
© Jack sealey limited
instructions for
air die grinder
model no:
Wear eye Wear a mask Wear protective
protection
Original Language Version
gSa671.V2
gloves
GsA671.V2 | issue 1 27/02/17
