Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1.
ELECTRICAL SAFETY. p WARNING! It is the users responsibility to read, understand and comply with the following:
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and all
electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD together with portable products that are
plugged into an electrical supply not protected by an RCCB. If in doubt consult a professional electrician. You may obtain a Residual Current
Device by contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by
a qualified Electrician at least once a year by using a Portable Appliance Tester (PAT).
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3.
Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5.
Regularly inspect power supply, leads, plugs and all electrical connections for wear and damage,
especially power connections, to ensure that none are loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply
to be used, and check that plugs are fitted with the correct capacity fuse. A 13Amp plug may require
a fuse smaller than 13Amps for certain products (subject to 1.1.10. below) see fuse rating at right.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damage leads, plugs or connections. Immediately replace or have repaired by
a qualified Electrician. A U.K. 3 pin plug with ASTA/BS approval is fitted. In case of damage, cut off
and fit a new plug according to the following instructions (discard old plug safely).
(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.
a) Connect the GREEN/YELLOW earth wire to the earth terminal E.
b) Connect the BROWN live wire to live terminal L.
c) Connect the BLUE neutral wire to the neutral terminal N.
After wiring, check there are no bare wires, that all wires have been correctly connected and that the wire restraint is tight.
Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always marked with
this symbol
. To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or blue to the earth terminal.
1.1.10. Some products require more than a 13Amp electrical supply. In such a case, NO plug will be fitted. You must contact a qualified Electrician
to ensure a 30 amp fused supply is available. We recommend you discuss the installation of a industrial round pin plug & socket with your electrician.
1.1.11. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD
fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cable on the cable
reel is important. We recommend at least 1.5mm
for
this product and for others that may be used in the other output sockets, we recommend the use of 2.5mm
1.2 GENERAL SAFETY
WARNING! Disconnect the grinder from the mains power, and ensure the grinding wheels are at a standstill before attempting to changing
accessories, servicing or performing any maintenance.
p
Maintain the
grinder
in good condition and check moving parts alignment regularly.
Replace or repair damaged parts. Use recommended parts only. Non authorised parts may be dangerous and will invalidate the warranty.
3
DANGER! DO NOT use a damaged stone as it is dangerous and may cause damage or serious personal injury.
3
WARNING! Only persons qualified under the Abrasive Wheels Regulations and holding a current grinding wheel
s
certificate are to change or dress grinding stones. Unplug grinder from mains power and refer to chapter 4 Grinding Stones for details.
p
WARNING! Keep all guards and holding screws in place, tight and in good working order. Check regularly for damaged parts.
A guard or any other part that is damaged should be checked to ensure that it will operate properly and perform its intended function
p
before tool is used. The safety guard is a mandatory fitting where grinder is used in premises covered by the Health & Safety at Work Act.
Locate grinder in an adequate working area for its function, keep area clean, tidy and free from unrelated materials. Ensure adequate lighting.
Before each use check grinding wheel for condition. If worn or damaged replace immediately.
3
WARNING! Always wear approved eye or face protection when operating the grinder.
3
Use breathing protection in accordance with COSHH regulations if fumes or dust pose a hazard. Wear ear defenders and gloves if necessary.
p
Keep hands and body clear of the workpiece when operating the grinder.
3
Maintain correct balance and footing. Ensure the floor is not slippery and wear non slip shoes.
3
Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/ or tie back long hair.
3
Keep children and unauthorised persons away from the working area.
3
DO NOT force the
grinder
3
DO NOT operate the
grinder
7
WARNING! DO NOT grind, or sand any materials containing asbestos.
7
DO NOT switch the
grinder
p
7
section cable but to be absolutely sure that the capacity of the cable reel is suitable
2
to achieve a task it was not designed to perform.
if any parts are damaged or missing as this may cause failure or possible personal injury.
on whilst the
wheel
is in contact with the work piece.

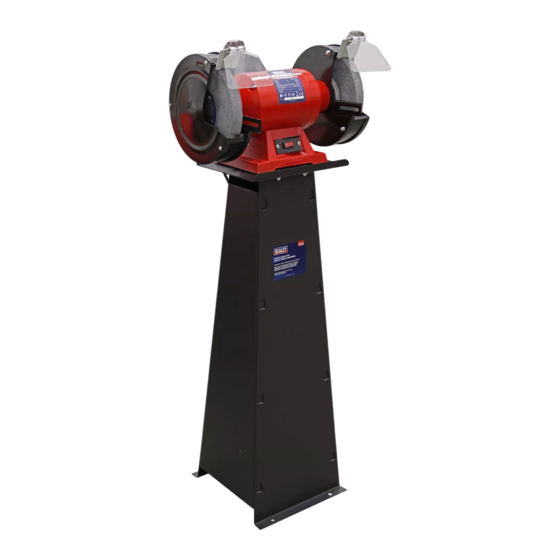

BENCH GRINDER & BUFFER
INSTRUCTIONS FOR:
SM53 & SM54
Model Nos:
Yellow & Green
Earth wire
Blue
Neutra
l
THIS PRODUCT MUST BE
FITTED WITH A
5
AMP FUSE
section cable.
2
SM53, SM54 - 0016 - (1) - 010200
Brown
Live
wire
wire
restrai
