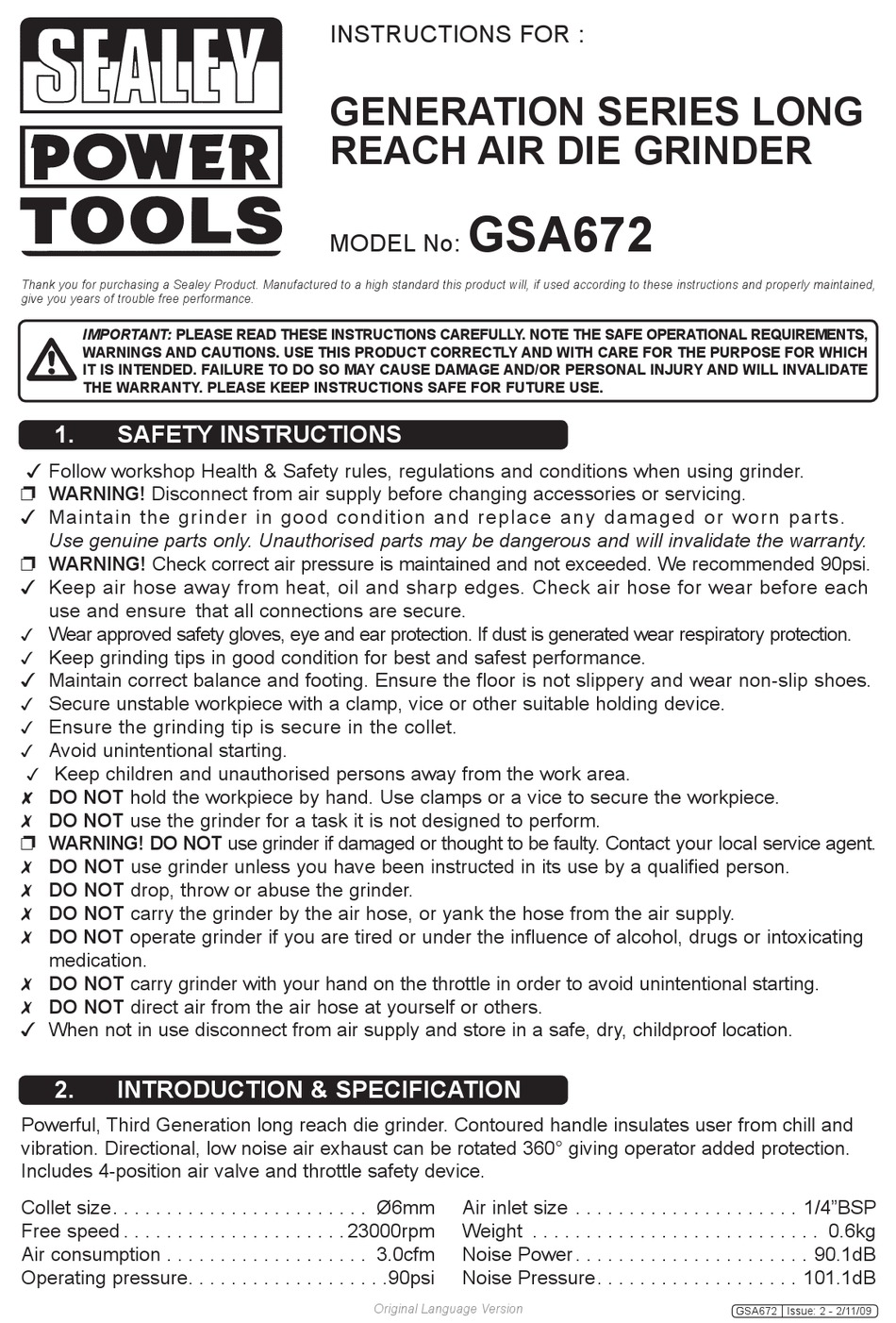

Sealey GSA672 Instructions For Use

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 Follow workshop Health & Safety rules, regulations and conditions when using grinder.
 WARNING! Disconnect from air supply before changing accessories or servicing.
 Maintain the grinder in good condition and replace any damaged or worn parts.
Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 WARNING! Check correct air pressure is maintained and not exceeded. We recommended 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
Wear approved safety gloves, eye and ear protection. If dust is generated wear respiratory protection.

Keep grinding tips in good condition for best and safest performance.

 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Secure unstable workpiece with a clamp, vice or other suitable holding device.

Ensure the grinding tip is secure in the collet.

Avoid unintentional starting.

Keep children and unauthorised persons away from the work area.

DO NOT hold the workpiece by hand. Use clamps or a vice to secure the workpiece.

 DO NOT use the grinder for a task it is not designed to perform.
 WARNING! DO NOT use grinder if damaged or thought to be faulty. Contact your local service agent.
 DO NOT use grinder unless you have been instructed in its use by a qualified person.
 DO NOT drop, throw or abuse the grinder.
 DO NOT carry the grinder by the air hose, or yank the hose from the air supply.
 DO NOT operate grinder if you are tired or under the influence of alcohol, drugs or intoxicating
medication.
 DO NOT carry grinder with your hand on the throttle in order to avoid unintentional starting.
 DO NOT direct air from the air hose at yourself or others.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATION
Powerful, Third Generation long reach die grinder. Contoured handle insulates user from chill and
vibration. Directional, low noise air exhaust can be rotated 360° giving operator added protection.
Includes 4-position air valve and throttle safety device.
Collet size. . . . . . . . . . . . . . . . . . . . . . . . Ø6mm
Free speed . . . . . . . . . . . . . . . . . . . . . 23000rpm
Air consumption . . . . . . . . . . . . . . . . . . . 3.0cfm
Operating pressure. . . . . . . . . . . . . . . . . . .90psi
INSTRUCTIONS FOR :
GENERATION SERIES LONG
REACH AIR DIE GRINDER
GSA672
MODEL No:
Air inlet size . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6kg
Noise Power . . . . . . . . . . . . . . . . . . . . . . 90.1dB
Noise Pressure. . . . . . . . . . . . . . . . . . . 101.1dB
Original Language Version
GSA672 Issue: 2 - 2/11/09
