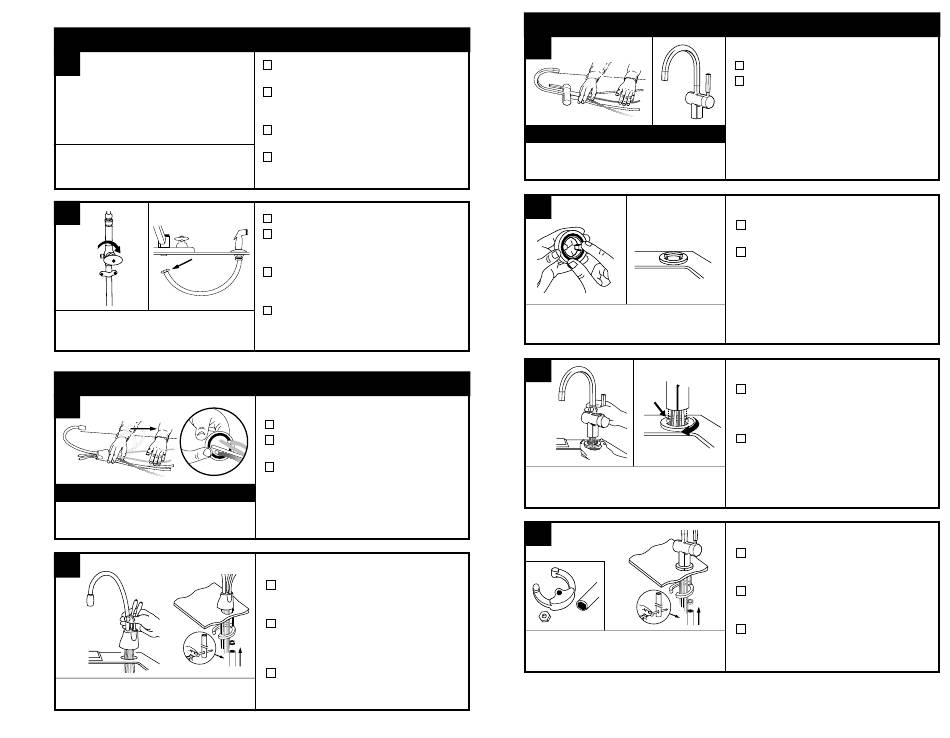

START HERE

PROPER INSTALLATION SHOULD TAKE ABOUT 2-4 HOURS
1

PREPARATION

A
Required minimum from centre of hole to wall
HC3300................. 64mm
H3300................... 64mm
HC1100 ................. 67mm
GN1100 .......... ...... 83mm
HC2215................. 75mm
GN2215................. 90mm
Maximum counter thickness is 76mm.
The wall outlet for the tap must have power
supplied to it continuously and must be fused.
It should not be controlled by the same wall
switch that operates the food waste disposer.
B
If you have to drill through sink or
worktop, you may need to rent or
purchase the appropriate tools.
2

INSTALLING THE TAP - 2215/1100

A
NOTICE
Property Damage: Do not pinch or break copper tubing.
Do not distort the last 25mm of tubing.
B
An assistant may be needed to hold
the tap in place while securing.
■ Identify locations for the tap, tank and
filter (if applicable).
■ Check to make sure there is proper
clearance (see chart at left) for tap
handles to be fully opened.
■ Check to make sure counter is not too
thick (see chart at left).
■ Make sure there is an earth (grounded)
electrical outlet under the sink.
■
Turn off water supply.
■ If using the sink sprayer hose hole,
remove nut that connects sprayer hose
at bottom of tap.
■ Using adjustable spanner, remove nut
connecting sprayer washer flange in
sprayer hole.
■
Close hose opening with either a plug
or a cap (not supplied).
HC2215/GN2215/HC1100/GN1100
■
Unpack hot water tap components.
■ On a firm, flat surface, carefully
straighten the copper tubing.
■ Ensure that the black O-ring is properly
seated in the base of the tap head (the
groove on the underside of the tap).
HC2215/GN2215/HC1100/GN1100
■ Feed tubes down through the hole
in the sink or countertop until the base
is at rest.
■
From under the sink, place the
semi-circular mounting plate and hex
nut onto the threaded stud. Ensure tap
head is at desired angle.
■
Insert screwdriver into hole on side of
hex tool (creating a "T"), and use tool
to tighten nut and secure tap.
2

INSTALLING THE TAP - 3300

A
NOTICE
Property Damage: Do not pinch or break copper tubing.
Do not distort the last 25mm of tubing.
B
Wetting O-ring with water prior to
inserting into brass seat helps hold
ring in place during installation.
C
To ease feeding of tubes through hole, first
insert blue tube with quick-connect attachment
and then insert the remaining tubes.
D
Semi-circular mounting plate should
encircle all descending tubes and
extend beyond sink hole when tight.
HC3300/H3300
■
Unpack hot water tap components.
■ The recommended installation for this
tap is the tap handle on the right.
The unique design allows the handle
to be fully functional when placed to
the right or left of the hot water tap.
Determine preferred handle placement
before installing.
HC3300/H3300
■ Insert rubber O-ring into groove on
brass seat.
■ Place brass seat, O-ring side down,
over hole in sink or worktop.
HC3300/H3300
■ Holding brass seat in place, feed
tubes down through the hole in sink
or worktop until base touches
brass seat.
■
Rotate brass seat until the two retaining
studs fit into the holes on the tap base
and base sits firmly on brass seat.
HC3300/H3300
■
From under the sink, place the
semicircular mounting plate onto
the threaded stud.
■ Place hex nut onto the threaded stud.
Ensure tap handle is on preferred side
and that tap head is at desired angle.
■ Insert screwdriver into hole on side of
hex tool (creating a "T"), and use tool
to tighten nut and secure tap.
