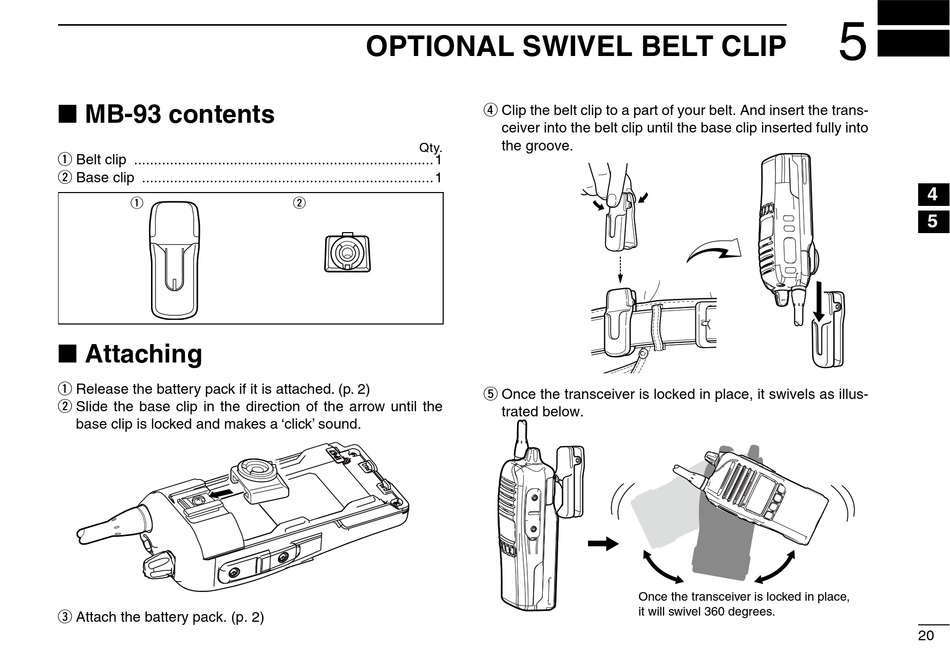

Optional Swivel Belt Clip; Contents; Attaching - Icom iC-F3033S Instruction Manual

MB-93 contents
q Belt clip ...........................................................................1
w Base clip .........................................................................1
q

Attaching

Release the battery pack if it is attached. (p. 2)
q
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a 'click' sound.
Attach the battery pack. (p. 2)
e

OPTIONAL SWIVEL BELT CLIP

Qty.
w
r Clip the belt clip to a part of your belt. And insert the trans-
ceiver into the belt clip until the base clip inserted fully into
the groove.
t Once the transceiver is locked in place, it swivels as illus-
trated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
20
