U N D E R C O U N T E R
A N T I - T I P B R AC K E T
An anti-tip bracket and hardware is provided
with the undercounter unit. The anti-tip bracket
must be installed on a solid base to prevent
tipover in case several loaded wine shelves are
extended at the same time.
The anti-tip bracket should be attached to the
wall behind the unit with the bracket flange
located immediately above the top of the unit.
Refer to the illustration below.
A smaller metal 'countertop' bracket is also
provided with the undercounter unit, for instal-
lations that need to be modified to provide a
secure surface for attaching the bracket. This
bracket will secure the front of the unit to the
underside of the countertop, above the unit.
Refer to the illustration below.
If it is not possible to use the countertop
bracket, wedge shims along the sides and top
of the unit.
ANTI-TIP
BRACKET
1
/ "
4 (6)

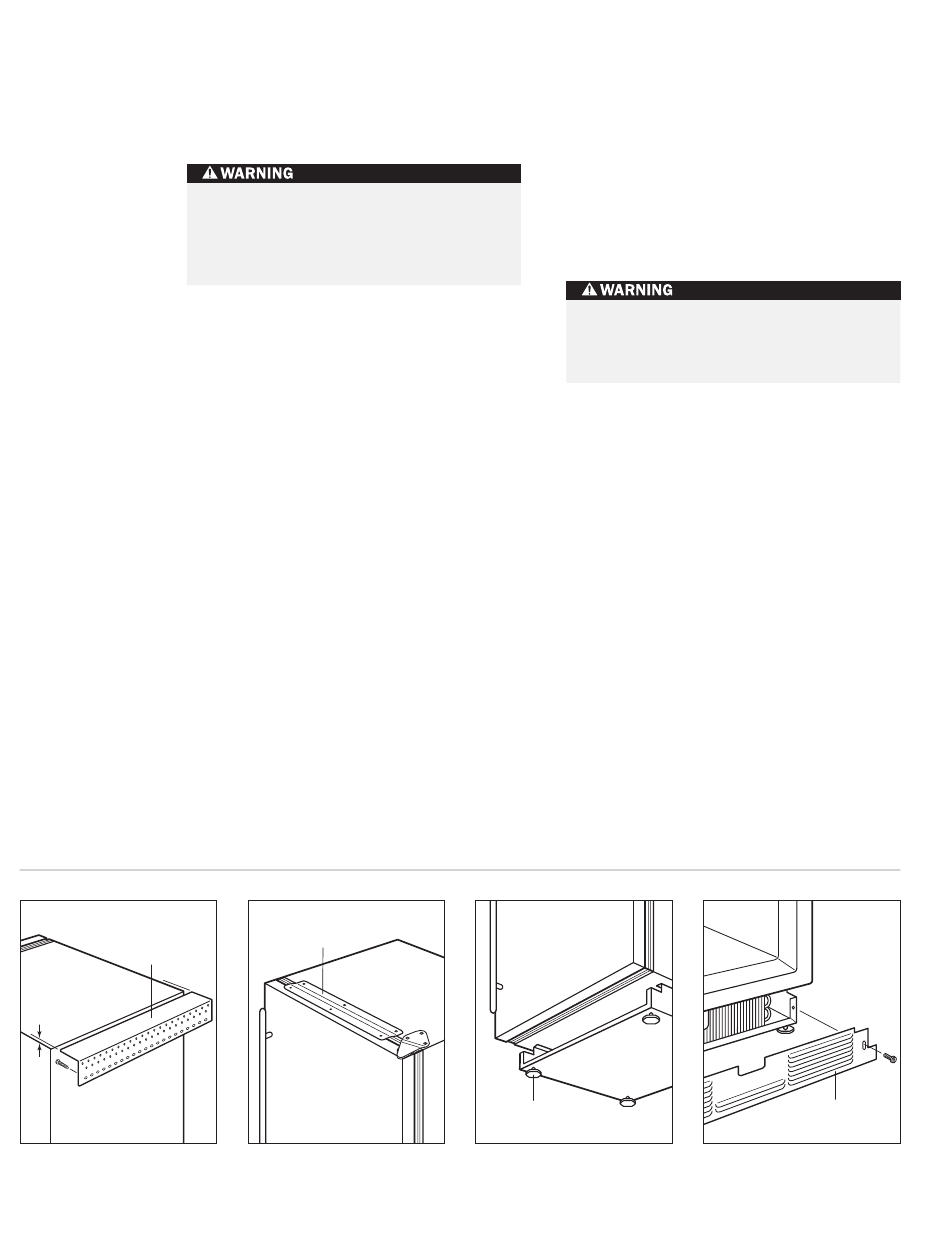

Anti-tip bracket installation
6
I N S T A L L A T I O N I N S T R U C T I O N S
I N S TA L L A T I O N
To prevent the unit from tipping forward
and provide a stable installation, the unit
must be secured in place with the anti-tip
bracket.
Countertop
Bracket
Countertop bracket
installation
L E V E L T H E U N I T
Using an adjustable wrench or pliers, turn
each of the four leveling legs clockwise to raise
the unit and counterclockwise to lower the
unit. For the location of the leveling legs, refer
to the illustration below.
To reduce the possibility of the unit
tipping forward, the front leveling legs
must be in contact with the floor.
K I C K P L AT E
Once the unit is leveled, the kickplate can be
installed. Use the two #10 x
screws that are provided with the kickplate.
Refer to the illustration below.
IMPORTANT NOTE: The kickplate must be
removed for servicing. The floor cannot inter-
fere with removal. The louvered section of the
kickplate must not be covered so as to prevent
air circulation.
Turn power back on to the electrical outlet.
Leveling Legs
Location of leveling legs
I N S TA L L A T I O N
1
/ " stainless steel
2
Kickplate
Kickplate installation
