Instruction Manual
DisplayPort® to DVI Dual Link Active Adapter
DP2DVID2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x DP2DVID2 adapter
• 1 x Installation Guide
System Requirements
• DisplayPort® enabled computer system/video card
• Available USB port
• DVI-D (digital) enabled display device (i.e. monitor,
projector, HDTV, etc)
Installation
1. With the computer system powered off, plug the
DisplayPort® connector from the DP2DVID adapter
into the computer's video card.
2. Connect the USB connector from the DP2DVID
adapter into a USB port on the computer system.
3. Connect a DVI-D (digital) cable from the DP2DVID
adapter to your display.
NOTE: For 2560x1600 operation, a dual link DVI-D cable
must be used.
4. Power on the monitor followed by the computer
system.No software/driver installation is required.
For the most up-to-date information, please visit: www.startech.com
Specifications
Connectors
Maximum Video Resolution
Support
Cable Length
Dimensions
Weight

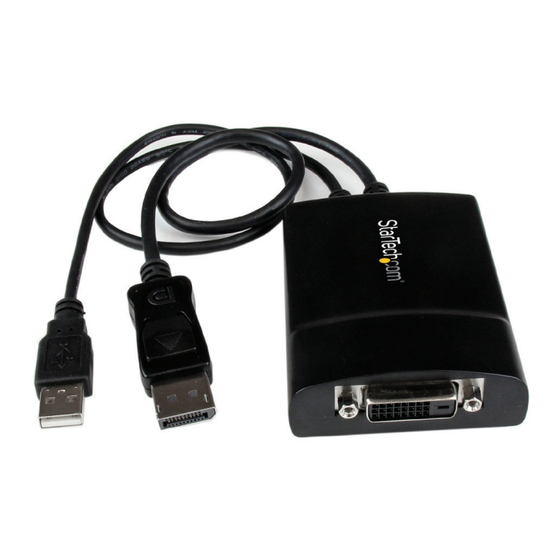

*actual product may vary from photos
1 x DisplayPort® male
1 x USB type A male
1 x DVI-D female
2560x1600
USB: 18"
DisplayPort: 14.5"
105.5mm x 58.0mm x 22.0mm
175g
Manual Revision: 08/01/2012
