StarTech.com DP2HDMIUSBA Instruction Manual

Instruction Manual
DisplayPort® to HDMI® Adapter with USB Audio
DP2HDMIUSBA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x DisplayPort® to HDMI® adapter
System Requirements
• Multi-mode DisplayPort® (DP++) enabled computer system with
available DisplayPort® port
• USB enabled computer system with available port
• HDMI® enabled display device
Installation
1. Make sure the computer system and display device are turned off.
2. Connect the DisplayPort® connector into the host computer
system's video card.
3. Connect the USB connector on the adapter into an available USB
port on the host computer system.
4. Connect a standard male/male HDMI® cable (not included) from
the adapter to an available HDMI® connector on the display device.
5. Power on the display device.
6. Power on the computer system. The Power LED on the adapter
should light up.
7. The computer system should automatically detect the display
device. Driver installation or special setup requirements depend
on the connected display device. Consult any documentation
included with your display device.
8. The operating system should also automatically detect and install
a new audio output device.
9. If you wish to send audio over HDMI®, check the audio properties
for the operating system, to make sure the USB adapter is set as
the default audio device.
NOTE: This will disable audio output from any speakers/
headphones currently connected to the computer system.
10.If you do not wish to use audio over HDMI®, set the default audio
device back to the original audio output device (e.g. sound card)
for your system.
For the most up-to-date information, please visit: www.startech.com

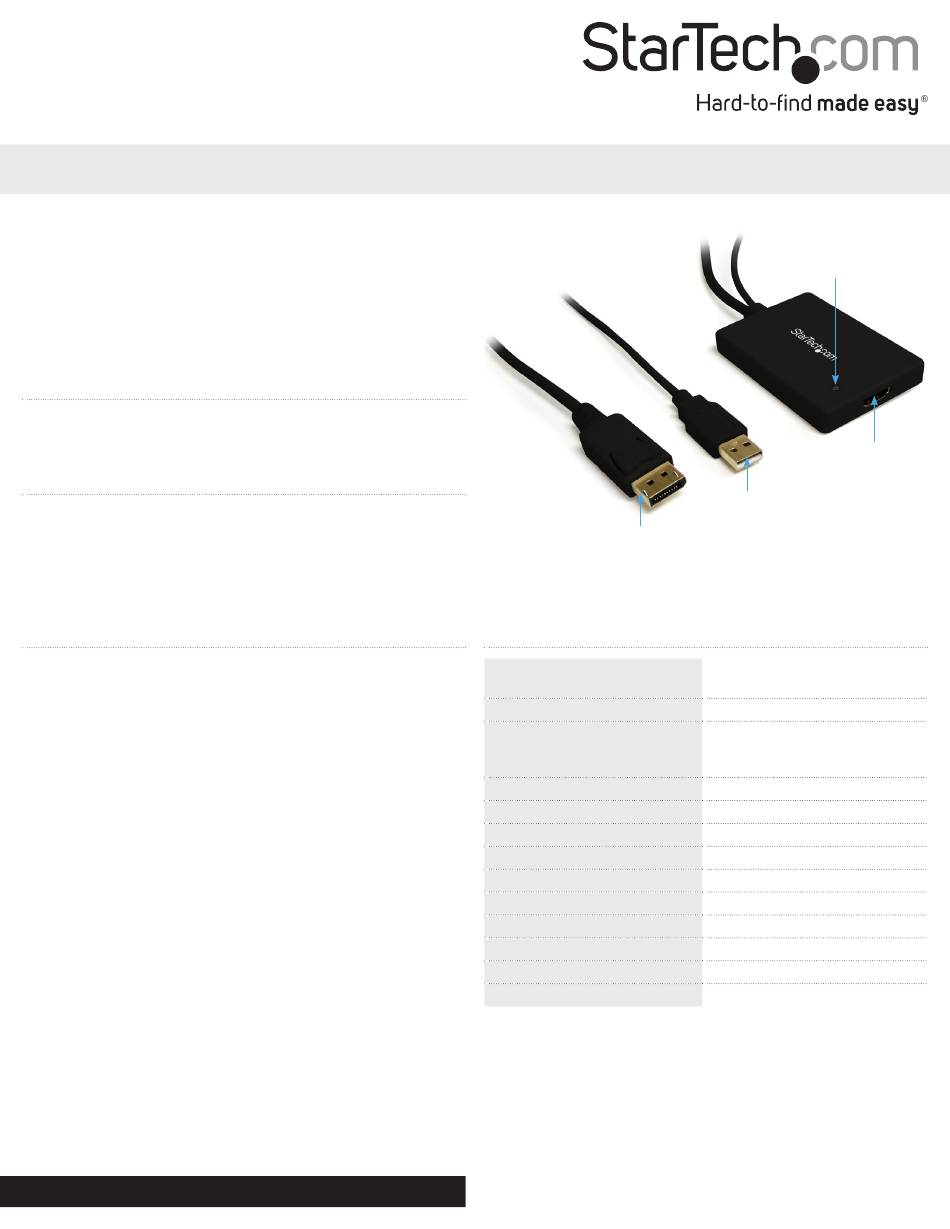

DisplayPort® connector
(Input)
Specifications
Bus Interface
Video Signal
Connectors
LEDs
Integrated Cable Length
Maximum Video Resolution
Audio Support
HDCP Support
Operating Temperature
Storage Temperature
Humidity
Dimensions
Weight
Power LED
HDMI® connector
(Output)
USB connector
*actual product may vary from photos
DisplayPort 1.1a
USB 2.0
High Speed HDMI (1.3b)
1 x DisplayPort male
1 x HDMI female
1 x USB type A male
1 x Power
61cm / 2ft
1920x1200 / 1080p
Yes - 2 channel LPCM
Yes
0°C ~ 70°C (32°F ~ 158°F)
-10°C ~ 80°C (14°F ~ 176°F)
10% ~ 85% RH
80mm x 56mm x 12mm
103g
Manual Revision: 05/25/2012
