StarTech.com DP2HDMIUSBA Quick Start Manual

DisplayPort® to HDMI® Adapter with USB Audio

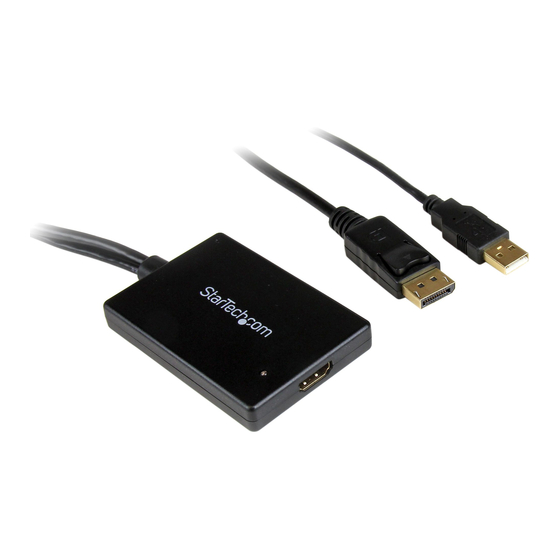

Product Diagram (DP2HDMIUSBA)
Component
1 • Indicates that the Adapter is receiving power.
Power LED
• Used to connect the Adapter to a Display
2
HDMI Port
Device.
DisplayPort Connector • Used to connect the Adapter to the Host
3
Computer's Video Card.
• Used to connect the Adapter to the Host
4
USB-A Connector
Computer.
Requirements
For the latest requirements, please visit www.startech.com/DP2HDMIUSBA.
• Multi-mode DisplayPort® (DP++) enabled computer system withavailable
DisplayPort® port
• USB enabled computer system with available port
• HDMI® enabled display device
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
3
2
1
Function
Installation
1. Make sure the Host Computer and Display Device are turned off.
2. Connect the DisplayPort Connector to the Host Computer's Video Card.
3. Connect the USB-A Connector on the Adapter to a USB port on the Host
Computer.
4. Connect an HDMI Cable (not included) to the HDMI Port on the Adapter and to an
HDMI connector on the Display Device.
5. Power on the Display Device.
6. Power on the Host Computer. The Adapter's Power LED will light up.
7. The Host Computer should automatically detect the Display Device.
Note: Driver installation or special setup requirements depend on the connected
Display Device. Consult any documentation included with the Display Device.
8. The operating system should also automatically detect and install a new audio
output device.
9. If you wish to send audio over HDMI, check the audio properties for the operating
system, to make sure the Adapter is set as the default audio device.
Note: This will disable audio output from any speakers/headphones currently
connected to the Host Computer.
10. If you do not wish to use audio over HDMI, set the default audio device back to the
original audio output device (e.g. sound card) for your system.
Quick-Start Guide
Manual Revision: March 28, 2019 10:27 AM
