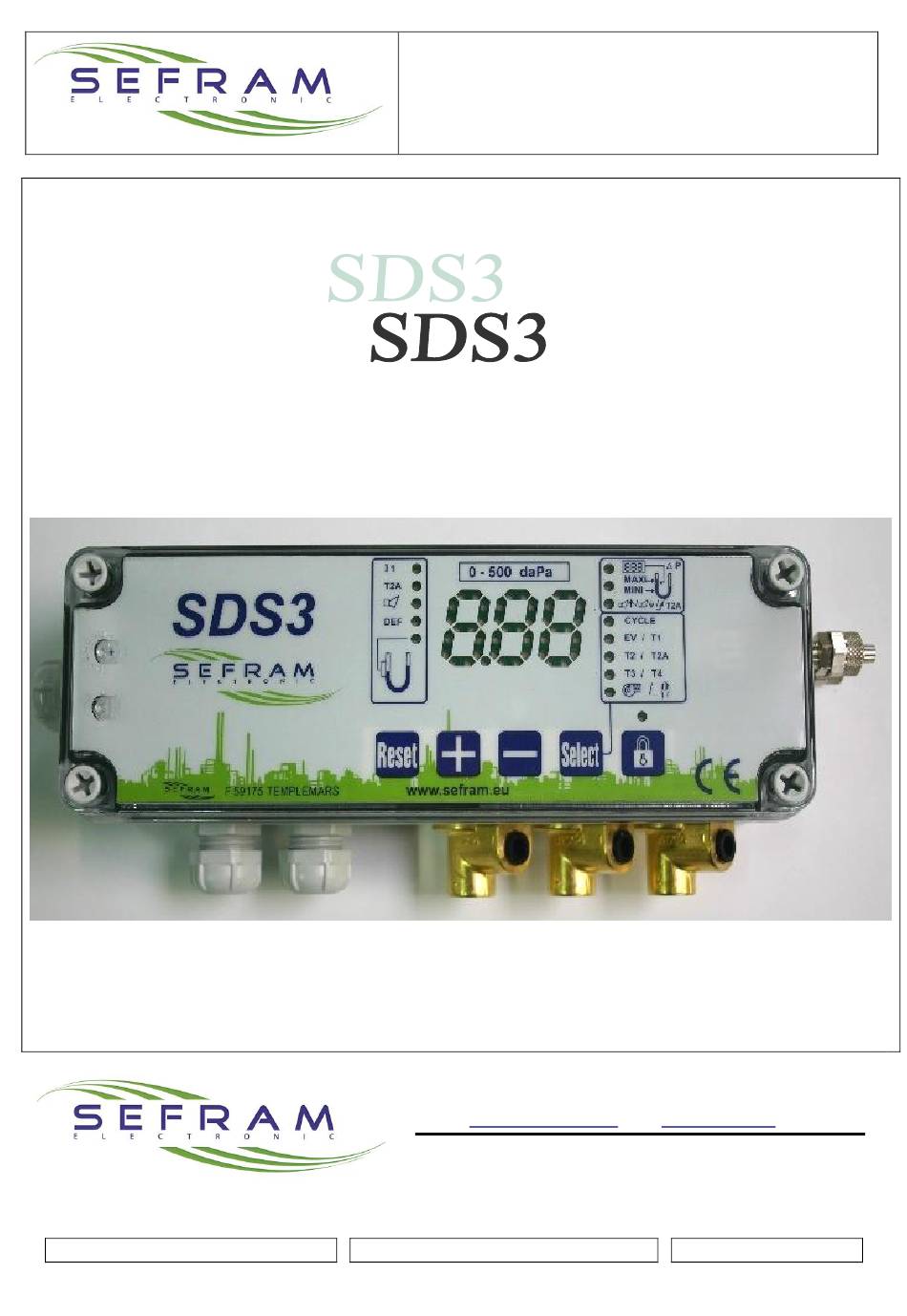

SEQUENCER CONTROLLER
WITH OR WITHOUT
DIFFERENTIAL PRESSURE MEASUREMENT
Version with display panel
And DP measurement
PLACE GUTENBERG - 59175 TEMPLEMARS (France)
Tel: +33(0)3 20 60 49 49 - Fax: +33(0)3 20 95 59 62
Email:
contact@sefram.eu
Web:
www.sefram.eu
MANAGEMENT AND MONITORING
OF INDUSTRIAL PROCESSES
Technical Notice
FI 72.0308.0316E
Page 1 sur 15
Advertisement
Table of Contents
Related Manuals for SEFRAM SDS3
Summary of Contents for SEFRAM SDS3
- Page 1 DIFFERENTIAL PRESSURE MEASUREMENT Version with display panel And DP measurement PLACE GUTENBERG - 59175 TEMPLEMARS (France) Tel: +33(0)3 20 60 49 49 - Fax: +33(0)3 20 95 59 62 Email: contact@sefram.eu Web: www.sefram.eu MANAGEMENT AND MONITORING OF INDUSTRIAL PROCESSES Technical Notice FI 72.0308.0316E...
-
Page 2: Table Of Contents
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT SUMMARY: DESCRIPTION : The SDS3 is a sequencer for the command and control of dust- Page removal equipment. - DESCRIPTION It can be equipped of the differential or relative pressure measure - CHARACTERISTICS (pressure drop). -
Page 3: Characteristics
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT CHARACTERISTICS: - Mains Voltage (rated voltage): 100 to 240V 50-60 Hz - Maximum power consumption (rated current): 0.7A (if supplied in 85V 0.3A (if supplied in 230V - Input characteristics: Voltage: 24VDC supplied by the device Charging current +/- 10mA - Relay contact characteristics: Max. -
Page 4: Presentation Of The
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT PRESENTATION OF THE FRONT PANEL: IN OPTION (note 1) Signalling Adjustments associated to load loss measure Sequencer parameters adjustments Note 1: If the option pressure drop measurement is not validated by the presence of the sensor in the equipment, the front panel remains unchanged but the menu steps associated with the pressure drop measurement are not accessible. -
Page 5: Adjustments
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT ADJUSTMENTS AND RUNNING: The various parameters are set as follows: - Press the « SELECT » key until the yellow led « menu » lights up opposite the parameter to be set and operate the keys «... - Page 6 SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT 2) DP control selection: Choose "AdP" or "SdP". "AdP": for cycle controlled by the DP measurement. "SdP": for cycle not controlled by the DP measurement. 3) Maxi DP setting: If the DP measurement exceeds this threshold for longer than one second, the DP order becomes « on » 4) Mini DP setting: If the DP measurement goes below the DP threshold for longer than one second, the DP order becomes «...
- Page 7 SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT 10) Number of outputs setting Number of output(s) in the cleaning cycle 11) T1 setting: Pulse time of an output (in 1/100th of second). 12) T2 Setting: Idle time between two outputs (in seconds). 13) T2A Setting: (if presence of the DP measurement sensor) Accelerated idle time between two outputs (in seconds).
- Page 8 SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT - Fan stoppage operation: If the stoppage of the fan is detected, the cycle in course terminates and the defined number of cycles is carried out. Comment: if the re-start of the fan is detected during the execution of the parameterised number of cycles, a classic operation is started.
- Page 9 SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT - Operating of the sequencer: if the device is not equipped with the DP sensor: Conditions for the cleaning start-up: o input I1=1 (closed input) (representative of an external controller) If loss of the input I1, the sequencer executes the quantity of defined cycles when fan is off and stops. If the number of parameterised cycles is set at 0: the sequencer stops immediately or terminates the cycle in course according to the chosen stoppage mode.
-
Page 10: Hidden Menu
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT HIDDEN MENU - Access the hidden menu by pressing the « Reset » button for longer than 1 second, release it, less than 1 second after press the « Select » button for longer than 1 second, release it. - The menu led "DP reading"... -
Page 11: Control / Faults
General protection of the device: Supply voltage 2 fuses F1 and F2: 85V to 264V 1A temporised – 250VAC 50/60Hz Can only be changed by SEFRAM Fan or other input loop control Fault / alarm information output Technical Notice FI 72.0308.0316E... -
Page 12: Spare Requirement
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT SPACE REQUIREMENT AND FIXING: + : dirty air side - : clean air side Connections for 6/8 mm tube Instantaneous connections for 4/6 mm tube Technical Notice FI 72.0308.0316E Page 12 sur 15... -
Page 13: Relay Output
SEQUENCER CONTROLLER WITH OR WITHOUT DIFFERENTIAL PRESSURE MEASUREMENT RELAY OUTPUT: Relay supplied if no fault nor alarm (contact between terminals located C and NO) Relay cut if presence of a fault or alarm (contact between terminals located C and NF): electric fault “output always supplied”... -
Page 14: General
In the event of a problem, please contact Sefram II. RECEPTION - STORAGE V. MAINTENANCE After unpacking the device, check that this latter has not The device does not require any special maintenance. -
Page 15: Warranty
CERTIFICATE: The SDS3 respects the European directives ( CEM, BT and ATEX ), which concerns it. However, it must be used correctly in applications for which it is intended, and should be linked or near CE approved products.
