Operating Instruction and safety manual
IMPORTANT:
Upon receipt of the product, read and follow all safety rules,
operating instructions before first use it. And retain this manual for
future reference.
Contain:
◎ Technical Data
◎ Important Safety Rules
◎ Operating Instruction
◎ Maintenance
◎ Troubleshooting
◎ Parts List
※ Technical Data
Type：
Capacity
Staple length
Fastener size
Weight
※
Important Safety Rules
1. KEEP CHILDREN AWAY. All children should be kept away from the work area. Don't let them
handle the tool.
2. USE SAFETY GLASS AND EAR PROTECTION: Air tool operators and others in work area
should always wear safety glass to prevent the injury from fastenersand flying debris when
loading and unloading this tool. Maybe the noise would harm your hearing, wear the ear

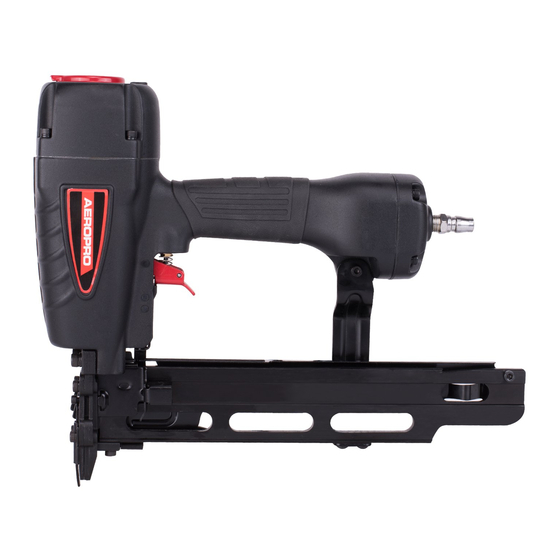

WIDE CROWN STAPLER – Model No. N851NP
N851NP
50pcs
25-50mm(1''-2'')
16Ga (1.60×1.40mm)
2.1kg
Max. working pressure
Operation pressure
Air inlet
Dimension
8.3bar(120psi)
4.8-7.5bar(70-110PSI)
1/4"
362×340×80mm
Fig 1.
Advertisement
Related Manuals for Aeropro N851NP
Summary of Contents for Aeropro N851NP
- Page 1 Operating Instruction and safety manual WIDE CROWN STAPLER – Model No. N851NP IMPORTANT: Upon receipt of the product, read and follow all safety rules, operating instructions before first use it. And retain this manual for future reference. Contain: ◎ Technical Data ◎...
-
Page 2: Additional Safety Instructions For Pneumatic Power Tools
protection to safeguard. (See fig 1.) 3. NEVER USE OXYGEN, COMBUSTIBLE OR ANY OTHER BOTTLE GAS as a power source Fig 2. or would cause explosion and serious personal injury. (See fig 2.) 4. DO NOT CONNECT TOOL TO COMPRESSED AIR which pressure exceeds 120psi. 5. - Page 3 Description Model N851NP drives Ga.16 finish nails from 25mm to 50mm length. Large cast aluminum body provide more power to easily drive nails in to hard wood. Quick and easy pushing follower for fast loading. Comfort grip rubber handle for improved control and comfort even during extended use.
-
Page 4: Maintenance
5. Keep air filter clean. A dirty filter will reduce the air pressure to the tool causing a reduction in power and efficiency. 6. For better performance, install a quick connector in your tool and quick coupler on the hose if possible. 7. - Page 5 SYMPTOM PROBLEM SOLUTIONS Air leak near top of tool or 1.O-ring in trigger valve are damage. 1.Check and replace O-ring. in trigger area 2.Trigger valve head are damage. 2.Check and replace. 3.Trigger valve stem ,seal or O-ring are 3.Check and replace trigger valve stem, damaged.
- Page 6 Issue date: N851NP Explosive View and Parts list Version no.: Description Qty. Description Qty. Description Qty. No. Description Qty. Figure number Figure number Figure number Figure number Hex bolt Cylinder washer Fixed seat Switch seat Bearing Gun body Trigger handle spring Rubber handle Grip O-ring 9X1.8...
