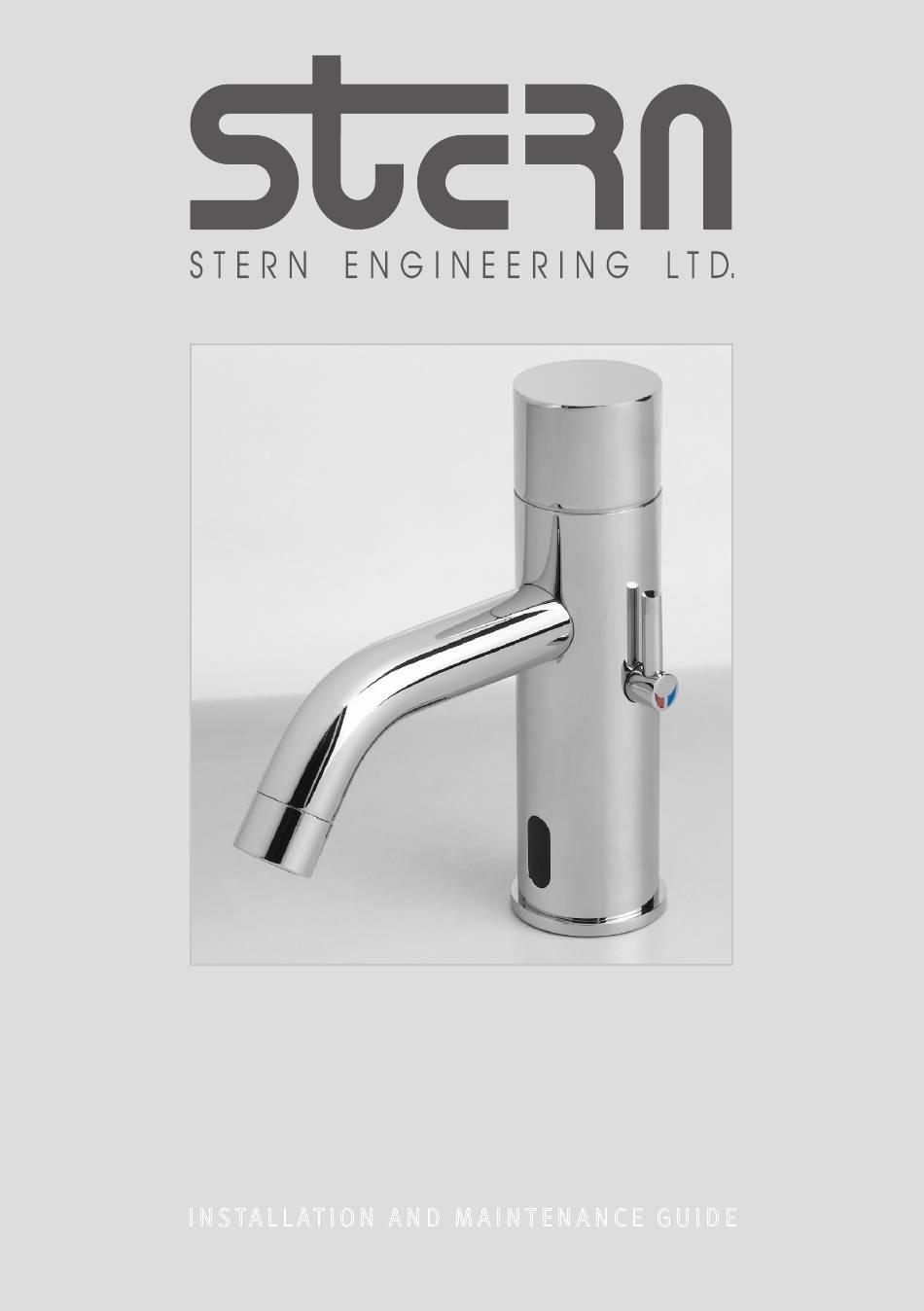

- Page 1 E L E C T R O N I C L A VAT O R Y F A U C E T extreme SerIeS I n s t a l l a t I o n a n d m a I n t e n a n c e g u I d e...
- Page 2 The tradenames, trademarks, logos and service marks presented in this document, including their max 70˚C design, are the property of Stern Engineering Ltd or other third parties and you are not permitted to use them without the prior written consent of Stern Engineering Ltd or such third party as may own them.
- Page 3 Pack coNTENTs EXTrEmE Pack coNTENTs EXTrEmE 1000 Familiarize yourself with the part names and confirm that the parts are included. Familiarize yourself with the part names and confirm that the parts are included. 1 X FaucET aND aTTachmENTs 1 X FaucET aND aTTachmENTs B VErsIoN E VErsIoN B VErsIoN...
-
Page 4: Pre-Installation Info
PrE-INsTallaTIoN INFo Pack coNTENTs EXTrEmE hl Familiarize yourself with the part names and confirm that the parts are included. CHeCk ContentS Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. make sure all parts are accounted for before discarding any packaging material. -
Page 5: Installation
EXTrEmE Plus INsTallaTIoN EXTrEmE / EXTrEmE 1000 INsTallaTIoN EXTrEmE 1000 Plus EXTrEmE hl sTEP 1 – PrEParaTIoN For mouNTINg ThE FaucET sTEP 1 – PrEParaTIoN For mouNTINg ThE FaucET Shut off the water supply. Shut off the water supply. O-Ring Remove the hexagonal nut, flat ring Remove the hexagonal nut, the disk and gasket. - Page 6 INsTallaTIoN INsTallaTIoN sTEP 3 – coNNEcTINg ThE waTEr suPPly sTEP 4 – coNNEcTINg ThE PowEr sourcE BatterY VerSIon Fix the battery box at the wall Connect the flexible pipe to the water underneath the sink using the screw. supply. The cable connection must point For models with temperature control down.
-
Page 7: Settings Adjustment
sETTINgs aDjusTmENT sETTINgs aDjusTmENT DELAY IN TImE: If required, the delay in time can also be modified as DETECTION follows: Press the IN button. Wait until a quick flashing of the LED in the DELAY OUT TImE RANGE sensor eye is perceived. Then, press + to increase the delay in time and – to reduce it. -
Page 8: Spare Parts List
BaTTEry rEPlacEmET sParE ParTs lIsT When the battery weakens, the LED will blink at a constant rate. The battery must be replaced within two weeks. Seals and Screws Kit (Extreme / Extreme 1000) 07210019 Seals and Screws Kit (Extreme Plus models) 07210023 Seals and Screws Kit (Extreme HL) 07210109... -
Page 9: Maintenance
If the water flow has decreased, this can be because the filter(s) is/are clogged. The filter(s) can be cleaned as follows: If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, 1. Shut-off the water shut off valve (angle valve). -
Page 10: Troubleshooting
TrouBlEshooTINg ProBlEm INDIcaTor causE soluTIoN No water 1. Sensor flashes coming out continuously of the faucet: when user’s Low battery. Replace battery hands are within the sensor’s range. 2. LED in the 1. Range is too short. Increase the range sensor does not 2. - Page 11 777 Passaic Avenue, Clifton NJ,07012, USA Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Toll Free: 1-800-4364410 info@sternfaucets.com | tech@sternfaucets.com 3.2018 015237100-C...
