433MHz Transmitter Installation

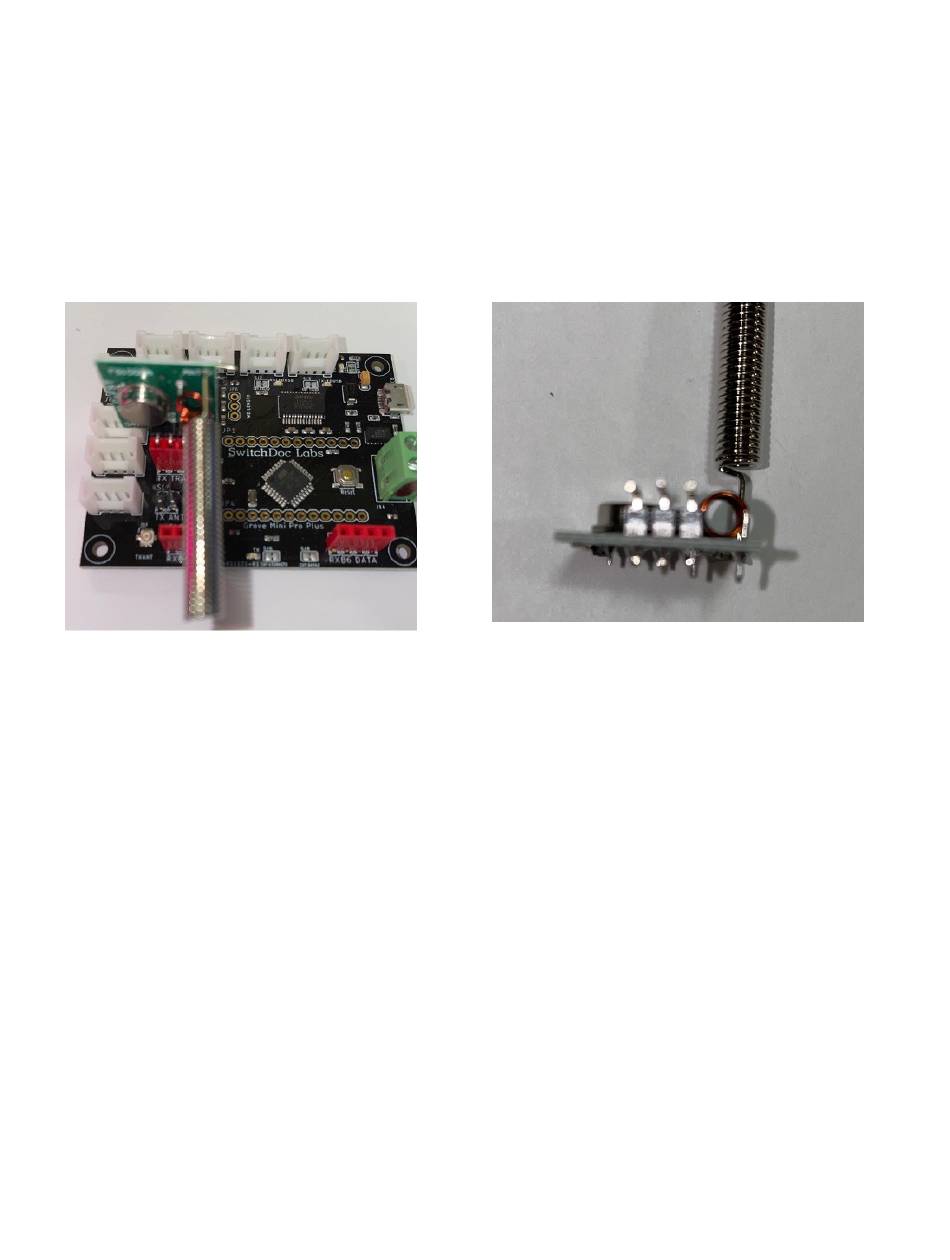

Step 1) Plug in the 433MHz Transmitter (Part G) into the MiniProPlus (Part H) three pin female
header market TX Tran. Make sure it is oriented as shown in the picture. Make sure the pins
are slightly bent out as in the second picture. This makes sure that the pins are connected in the
header.

USB Cable Wiring

Step 1) Take your short Type A to Micro USB Cable (Part J) and plug one end into the Micro USB plug on Part
H Mini Pro Plus Computer.
Step 2) Plug the USB Plug w/Terminals (Part F) into the USB WeatherProof Plug (Part E).
This finishes the USB Wiring. Now on to the Battery wiring.
Page 23
Version 1.1 September 2021
