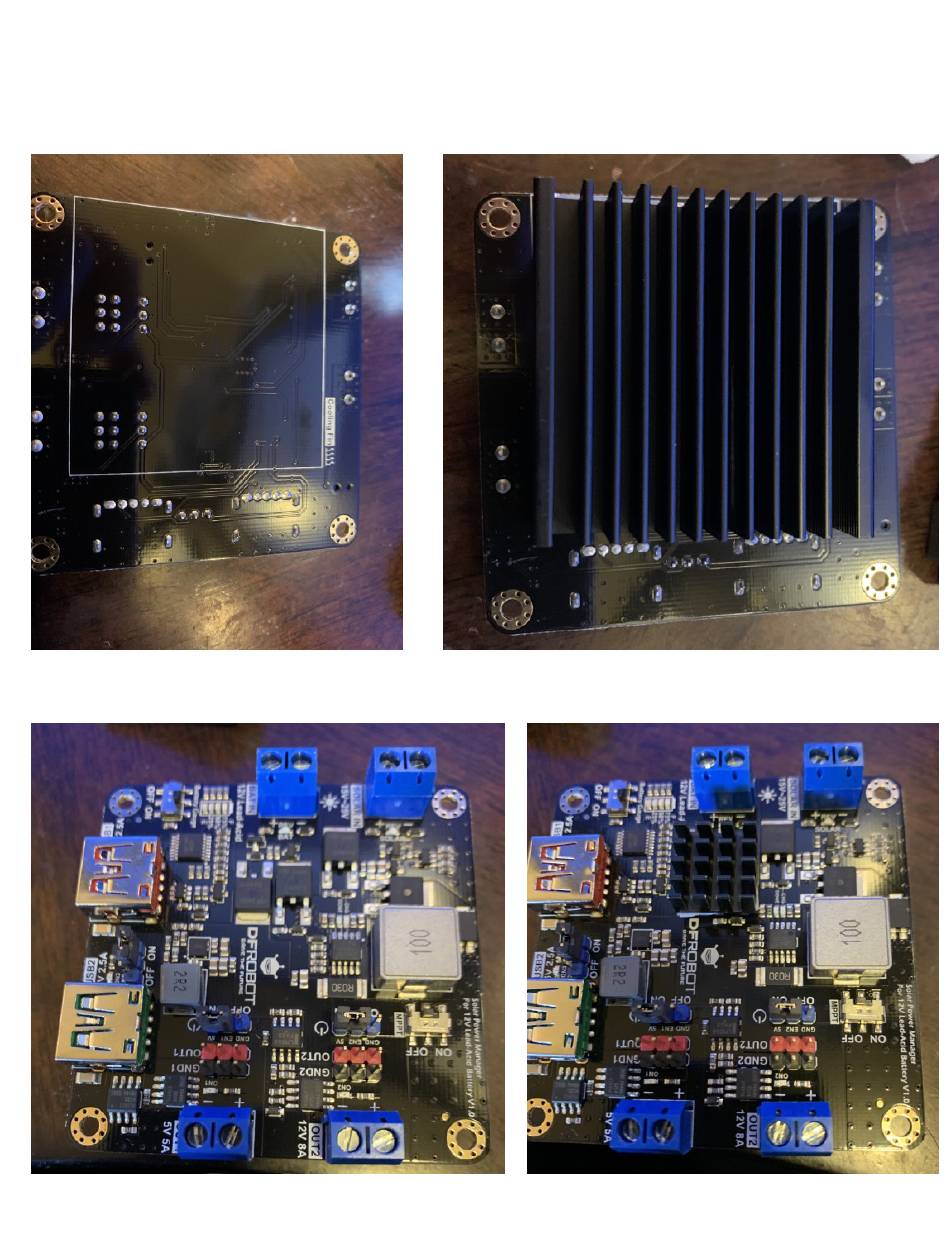

Step 4) Place the large heat sink on the back of Part D, the Solar Controller. Place the smaller heat sink on the
top of Part D, the Solar Controller. If the heat sinks don't want to stay on, us a small amount of superglue under
the heat sinks.
Page 13
Version 1.1 September 2021
