PM-50 Digital Input Graphical Panel Meters
Installation Guide
z Universal Digital (pulsed) Inputs
z 4.3" (1/8 DIN) or 3.5" (1/16 DIN) 18-bit color display with
resistive touchscreen and swipe gesture
z DC powered, AC powered with optional module
z Choice of programming options
z Data Access Point; communication choices - Wi-Fi, RS-485/
Modbus and optional Ethernet or RS-232
z NEMA 4X/IP65 sealed front bezel
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C US US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4A
IND.CONT. EQ.
E317425
Visit www.redlion.net for how-to videos, full user manual and
additional support.
GENERAL DESCRIPTION

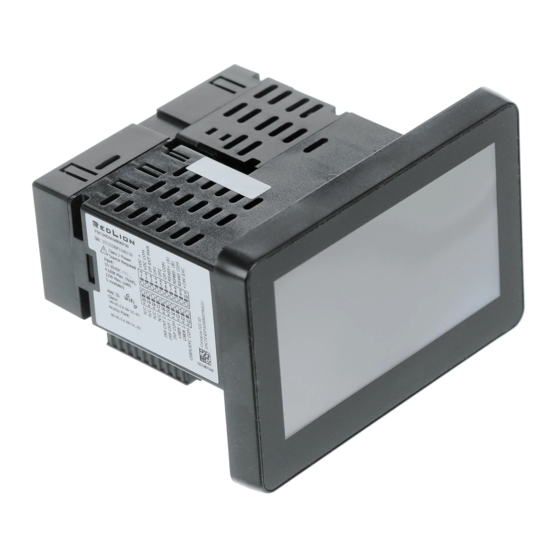

Red Lion's Graphical Panel Meters, PM-50, is a platform of
meters designed to increase operator productivity and expose
critical plant floor data for use in project scheduling and process
improvements. Local operators can easily relate to the more
intuitive graphical display. Additional displays could be added to
provide even more data. The meters feature on-board Wi-Fi,
RS-485/Modbus and optional Ethernet or RS-232.
PM-50 features a 4.3" or 3.5" Color Graphical Touchscreen.
With an appearance like many smart devices, the display includes
a status bar and menu selections for easy operation. Recognizing
a swipe gesture allows multiple screens to be accessed.
Touchscreen push buttons can be displayed on the screen or
hidden during operation. The meters mount in standard industrial
hole sizes, 1/8 DIN and 1/16 DIN respectively.
On power-up, a Programming Wizard will assist you to get
started. You may also select a Programming App, Web Server, or
the traditional button/menu style for your programming needs.
For OEM customers a microSD Card allows for quick programming
and installation, saving time and money.
The Digital model accepts various pulse sensors. Onboard
outputs include two Solid State Outputs that can take up to 30 V
source voltage with software configurable source or sink options.
User inputs are also available to provide external interface and
control when required.
The PM-50 platform includes modular construction to add
additional capabilities. External modules can easily be installed in
the field to add a variety of output and communication options.
As safety advances through the Automation Industry, DC is the
more common choice for power. However, there are still many
requirements for AC power and they can be accommodated with
our AC to DC Power Module.
PACKAGE CHECKLIST
This product package should contain the items listed below. If
any items are missing or damaged, contact Red Lion immediately.
- PM-50 Digital Input Panel Meter
- Accessory Pack
- Installation Guide
SAFETY SUMMARY
All safety related regulations, local codes and instructions that
appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not specified.
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
WARNING - EXPLOSION HAZARD - When in hazardous
locations, disconnect power before replacing or wiring
modules.
AVERTISSEMENT - RISQUE D'EXPLOSION - Dans les
endroits dangereux, débranchez l'alimentation électrique
avant de remplacer ou de câbler les modules.
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D, or non-hazardous locations only.
Cet équipement est adapté à une utilisation dans des
endroits de classe I, Division 2, Groupes A, B, C, D, ou
dans des endroits non dangereux seulement.
