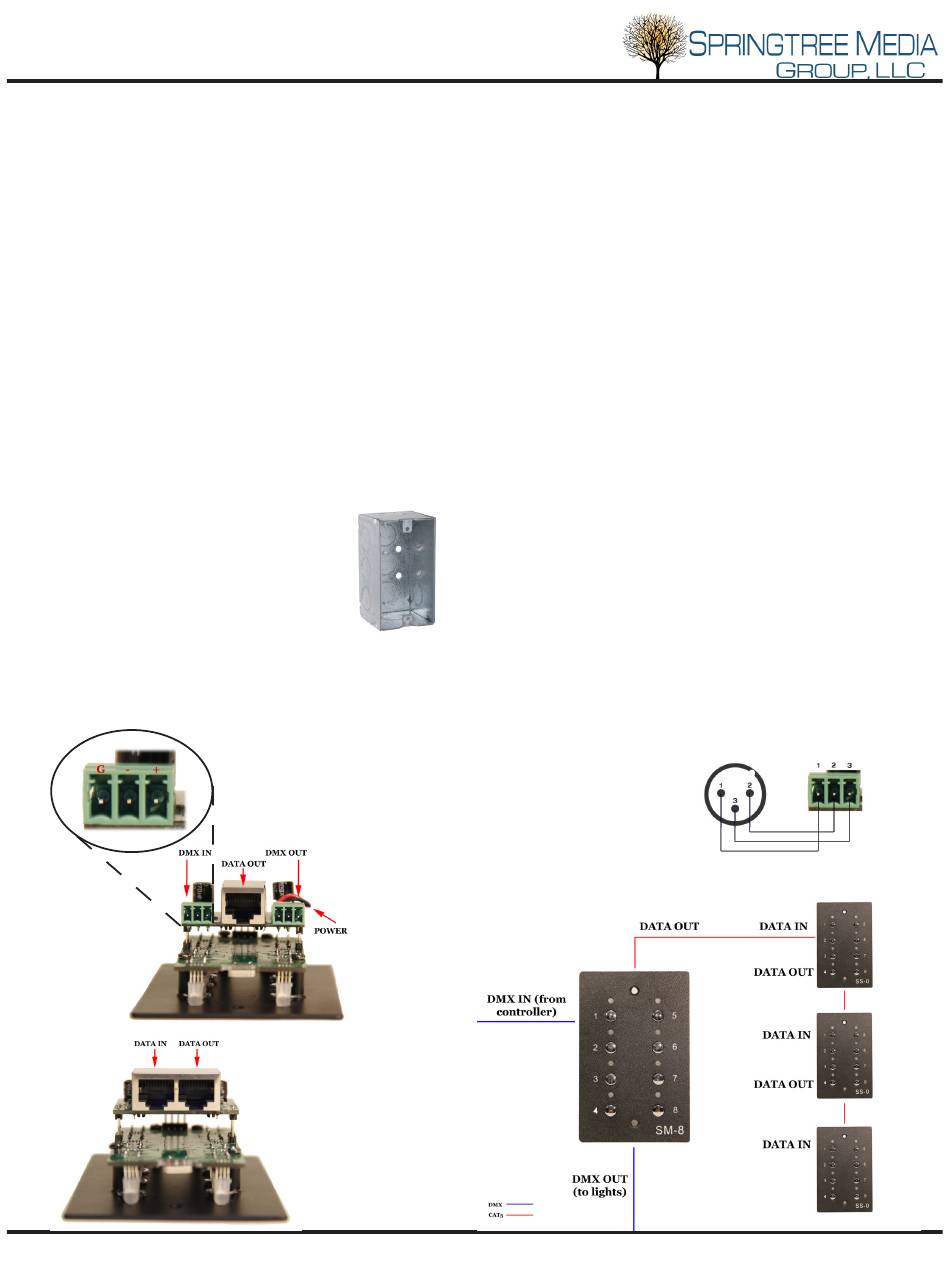

Installation

Power Supply

Before plugging your unit in, be sure the source voltage in your area matches the voltage
required for your lighting setup. Because line voltage may vary from venue to venue, be sure your
unit voltage matches the wall outlet voltage before attempting to operate. The Springtree Wall Sta-
tion uses a standard 12V power supply (provided with the SM-8). The power for the SS-0 units are
provided by the SM-8 via CAT5.

Mounting

The SM-8 and SS-0 come with a single gang mud ring. They will not fit in a standard single
gang box. Should you need to mount in a metal in-closed handy box please use a Raco 670RAC
box (pictured here, not included).

Connecting

Connect the SM-8 and SS-0 as shown below. Attention audio people: DMX is backwards
from audio. Pin 2 is negative and pin 3 is positive. Most of the time pin 2 will be a white wire and
sometimes it will be red. Pin 3 will always be black.
4
DMX Wiring
Pin 1 = Ground
Pin 2 = Negative
Pin 3 = Positive (Hot)
