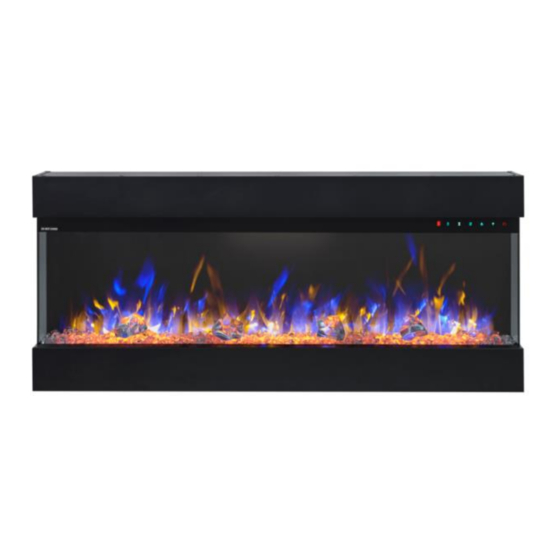

Celestial 36", 50", 60" & 72" Electric Fire Range
Model Numbers: MZEFTCEL36, MZEFTCEL50, MZEFTCEL60, MZEFTCEL72
Please read the entire owner's manual, including all safety information,
before plugging in or using this product. Failure to do so could result in fire,
WARNING
electric shock, or serious personal injury.
Keep the owner's manual for future reference. If you sell or give this product
CAUTION
away, make sure this manual accompanies this product.
@ezeeglow
Be sure to upload your fire image using #ezeeglow and tag Ezee
Glow on Facebook or Instagram to feature on our social media!
OWNERS MANUAL
AC 220-240V, 50Hz 1400-1600W
@ezeeglowelectricfires
Rev G
Advertisement
Table of Contents
Related Manuals for Ezee Glow Celestial MZEFTCEL36
Summary of Contents for Ezee Glow Celestial MZEFTCEL36
- Page 1 Celestial 36”, 50”, 60” & 72” Electric Fire Range OWNERS MANUAL Model Numbers: MZEFTCEL36, MZEFTCEL50, MZEFTCEL60, MZEFTCEL72 AC 220-240V, 50Hz 1400-1600W Please read the entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, WARNING electric shock, or serious personal injury.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before using this heater. ⚫ This heater is hot when in use. To avoid burn ing, do not touch hot surface. If provided, use ⚫... - Page 3 IMPORTANT SAFETY INFORMATION! WARNING WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
-
Page 4: Install Preparation
Install preparation This product includes a GLASS panel. Use extreme caution when handling. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts list to make sure you have all the parts you need. - Page 5 Dimensions PRODUCT DIMENSIONS Model Number 36.6" 19.1" 7.9" 35.5" 18.3" 10.1" 36.4" MZEFTCEL36 93cm 48.4cm 20cm 90.2cm 46.56cm 25.61cm 92.57cm 50" 19.1" 7.9" 48.9" 18.3" 10.1" 49.8" MZEFTCEL50 127cm 48.4cm 20cm 124.2cm 46.56cm 25.61cm 126.57cm 60" 19.1" 7.9" 58.9" 18.3" 10.1"...
-
Page 6: Installation Overview
Installation Overview Your appliance facilitates three different installation configurations: three-sided, two-sided, and single-sided. Three-sided installation • Glass exposed on front, left, AND right sides. • Appliance is fully recessed into the wall with both sides open. • See pages 9 and 10 for more info. Two-sided installation •... - Page 7 Single-sided installation • Glass exposed on front ONLY. • Appliance is fully recessed into the wall. • See pages 9 and 10 for more info. Installation / Minimum Clearance Your appliance is a recess installed appliance. Select a suitable location that is not susceptible to moisture build-up.
- Page 8 Installation - Rough Framing Model Number 36.6" 8.27" 19.25" MZEFTCEL36 93.5cm 24.5cm 48.9cm 50" 8.27" 19.25" MZEFTCEL50 127.5cm 24.5cm 48.9cm 60" 8.27" 19.25" MZEFTCEL60 152.9cm 24.5cm 48.9cm 72" 8.27" 19.25" MZEFTCEL72 183.2cm 24.5cm 48.9cm Note: Appliance is NOT load-bearing. Caref ully consider weight of finishing materials when constructing rough f raming. Ensure installation complies with all local building codes and requirements.
- Page 9 Installation - Plasterboard Model Number 36.6" 8.27" 19.25" MZEFTCEL36 96cm 14.6cm 29.4cm 50" 8.27" 19.25" MZEFTCEL50 130cm 14.6cm 29.4cm 60" 8.27" 19.25" MZEFTCEL60 155.4cm 14.6cm 29.4cm 72" 8.27" 19.25" MZEFTCEL72 185.7cm 14.6cm 29.4cm Note: Dimensions assume plasterboard of 12.5mm thickness is used.
-
Page 10: Pre-Installation
Pre-installation 1.Remove the 8 screws from the top and bottom of the appliance (Fig. 3-1). 2.Install the 4 metal brackets (supplied) using the 8 screws previously removed (Fig. 3-2). 3. Remove the side trims and side panels from both sides of the appliance by removing the 12 screws (Fig.3-3). -
Page 11: Three-Sided Viewing Installation
Three-sided Viewing Installation Note: When installed with both sides open, the appliance will have a front view, as well as left and right-side views. 1.Re-secure both side trims using the 12 screws previously removed (Fig. 3-4). Two-sided Viewing Installation Note: When installed fully recessed into the wall with one side open, the appliance will have a front view and left- or right-sided view, depending on your desired open side. -
Page 12: Single-Sided Viewing Installation
Single-sided Viewing Installation Note: When installed fully recessed into the wall with both left and right sides covered, the appliance will have a front view only. 1. Re-secure both side panels using the 8 screws previously removed (Fig. 3-6). -
Page 13: Front Glass Installation / Removal
Front Glass Installation / Removal Note: Support the front glass through the entire process to avoid breakage. 1. Ensuring the glass metal bracket is fitted to the top of the front glass, place the front glass into the track located inside the firebox (Fig. 4-1). 2. - Page 14 Fuel-bed Effect Installation Note: The appliance must be installed in its final location before the crystals, artificial logs and charred wood pieces are installed. 1. While supporting the glass, remove the screws holding the front glass screen in place. Remove the glass and safely store it to one side for now.
-
Page 15: Operation
Operation Please read the entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury. Power Plug the power cord into a 220-240V 50Hz outlet (see IMPORTANT SAFETY INFORMAT ION on Pages 2 and 3). - Page 16 Control Panel Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once, Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and 2. Press again, Flame effect turns off. remote control.
- Page 17 Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once, Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and 2. Press again, Flame effect turns off. remote control.
- Page 18 LCD Screen Weekday Note: The functions can Mon, Tues, Wed, Thurs, Fri, Sat, Sun only be adjusted when the related letters or digits are flashing. Time Display Note: Calibrate the timer to current time before Current Time / Timer From 00:00 to 24:00 entering the weekly NOTE: 00-12:00 is AM / 13:00-24:00 is PM settings.
- Page 19 again. When “18” begins flashing, use Press to select the desired temperature for Tuesday. Repeat steps 1 to 6 to set the “ON/OFF” time and temperature for Wednesday, Thursday, Friday, Saturday, and Sunday. Press to f inish, ensuring to aim the remote control at the receiver, located in the middle of the appliance.
-
Page 20: Care And Maintenance
Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving the fire unit. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury. -
Page 21: Troubleshooting (Faq)
Troubleshooting/ FAQ Problem Possible Cause Solution Note Fire not Fire not plugged Check plug is correctly fitted If all solutions have turning on in or switched on into socket and the socket is been tested and at socket turned on. problem persists, a Fuse blown Disconnect plug and inspect... - Page 22 Heater Build-up of hot air Ensure inlets and outlet are If problem persists, cutting out free from obstruction and the installation will there are sufficient clearances need assessed to surrounding the unit. ensure it adheres to all required minimum clearances as stated in this manual.
- Page 23 WEEE： Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
