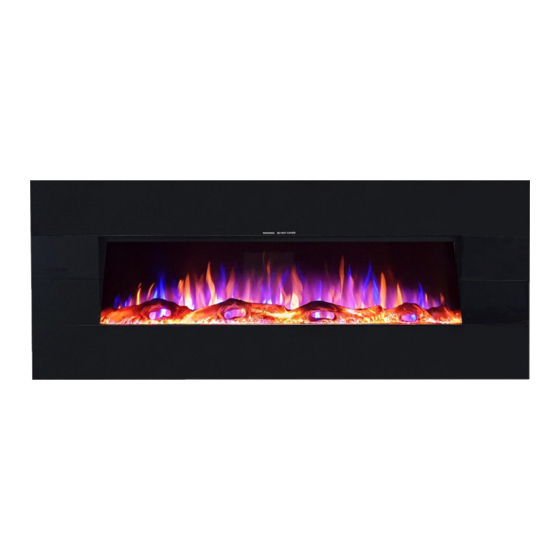

Mini Zara, Zara, Grand Zara and XL Zara Electric Fire Range
Model Numbers: MZEZAWHBL42, MZEZAWHBL50, MZEZAWHBL60,
Please read the entire owner's manual, including all safety information, before
plugging in or using this product. Failure to do so could result in fire, electric
WARNING
shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
Be sure to upload your fire image using #ezeeglow and tag Ezee Glow
on Facebook or Instagram to feature on our social media!
OWNERS MANUAL
MZEZAWHBL72
AC 220-240V, 50Hz 1400-1600W
@ezeeglow
@ezeeglowelectricfires
Rev E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ezee Glow Mini Zara
Summary of Contents for Ezee Glow Mini Zara
- Page 1 Keep this owner’s manual for future reference. If you sell or give this CAUTION product away, make sure this manual accompanies this product. @ezeeglow @ezeeglowelectricfires Be sure to upload your fire image using #ezeeglow and tag Ezee Glow on Facebook or Instagram to feature on our social media! Rev E...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Read all instructions before using this heater. • This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles when moving this heater. - Page 3 IMPORTANT SAFETY INFORMATION! WARNING WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. ·...
-
Page 4: Install Preparation
Install preparation This product includes a GLASS panel. Use extreme caution when handling. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for wall-hanging use. - Page 5 Dimensions Product dimensions listed in mm and [inches]. Mini Zara: Zara:...
- Page 6 Grand Zara: XL Zara:...
-
Page 7: Installation And Assembly
Installation and Assembly Wall Mounted Installation Find a safe location: Rear View of Fireplace Minimum clearance on each side: Minimum 0” 0” (0cm). (0 cm) Minimum clearance below: 11.8” (30cm). Minimum clearance above: 0” (0cm). Minimum clearance from the front: 3 feet (90 cm). - Page 8 Due to the many different materials used on different walls, it is highly recommended that you consult a competent tradesman before you install this appliance on the wall. Select a location that is not prone to moisture and is located at least 36" (914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
- Page 9 13” (33cm) 13” (33cm) wall 12.8” (32.5cm) High Wood screws Minimum 11.8”(30cm)
- Page 10 Wall Securing Bracket Installation Following wall bracket installation, the small “L” shape mounting bracket (page 6 – item ‘D’) needs attached to secure the fire to the wall. See below guide and illustration: G. Remove the two screws on the bottom of the fire box, then grab the L-shape mounting bracket.
- Page 11 STEP A. Select a dry wall for fire recess. Select recess size using the illustration above and the corresponding columns W1, H1 and D1 below: Note – Ensure there is Product Name at least a 1.5cm gap Mini Zara 90.5cm 48.26cm 12cm 92.5cm...
- Page 12 STEP C. Lift the fire into the recess and attach four screws through the holes in the corners of the fire, into the previously fitted dry wall mounts. The fire is now secured to the wall. Fixed glass parts STEP D. Next, attach the front glass by lifting it flush against the fire and locating the hooks...
- Page 13 Fuel-bed Installation/ Glass Removal NOTE: Two options are available for the fuel-bed. A log effect bed and a pebble bed. A. For both options, the front glass must be removed, and the appliance mounted in its final location before the log effect or pebbles are installed. Simply remove the two silver coloured screws on each side of the fire and lift the front glass up then out to remove it.
-
Page 14: Methods Of Operation
Operation Read the entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire or serious injury. Methods of Operation This electric fire can be operated by the TOUCH ON CONTROL PANEL, located on the bottom right of the front glass, OR by the battery powered REMOTE CONTROL. - Page 15 Control Panel / Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once. Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and 2.
- Page 16 Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once. Indicator light turns on. remote control. Turns flame effect on. Power turns on. All functions enabled. OFF: Disables control panel functions and 2. Press again. Flame effect turns off. POWER remote control.
- Page 17 TIMER SETTINGS ON REMOTE CONTROL : Timer: Displays current day, time, and week. Press to enter or confirm timer settings. : Settings: Press to move to next step (use with timer button). Press to confirm week timer. : Back: Press to clear timer settings. Press to return to the previous step (use with Settings button).
- Page 18 • Once the time is calibrated you will hear a beep from the product, to confirm the function has been received 2 Set ON/OFF time and temperature on a weekly cycle . When “MON” begins flashing, press 3 times. When “ON” begins flashing, use Press to select the desired hour and minute to turn on the heater.
-
Page 19: Care And Maintenance
When the heater is first turned on, a slight odor may be present. This is normal and NOTICE should not occur again unless the heater is not used for a long period of time. To improve operation, aim the remote control at the front of the fireplace. DO NOT NOTICE press the buttons too quickly. -
Page 20: Maintenance
Maintenance Risk of electric shock! DO NOT OPEN any panels! No user-serviceable parts inside! ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. Electrical and Moving Parts: •... - Page 21 Should you require after sales information or warranty assistance within UK & Ireland with this product please go to https://www.micon-dist.com. Imported and Distributed by Micon Distribution Ltd.1a Hallstown Road, Ballinderry Upper, Lisburn BT28 2NE. Ezee Glow Brand exclusively owned by Micon.
