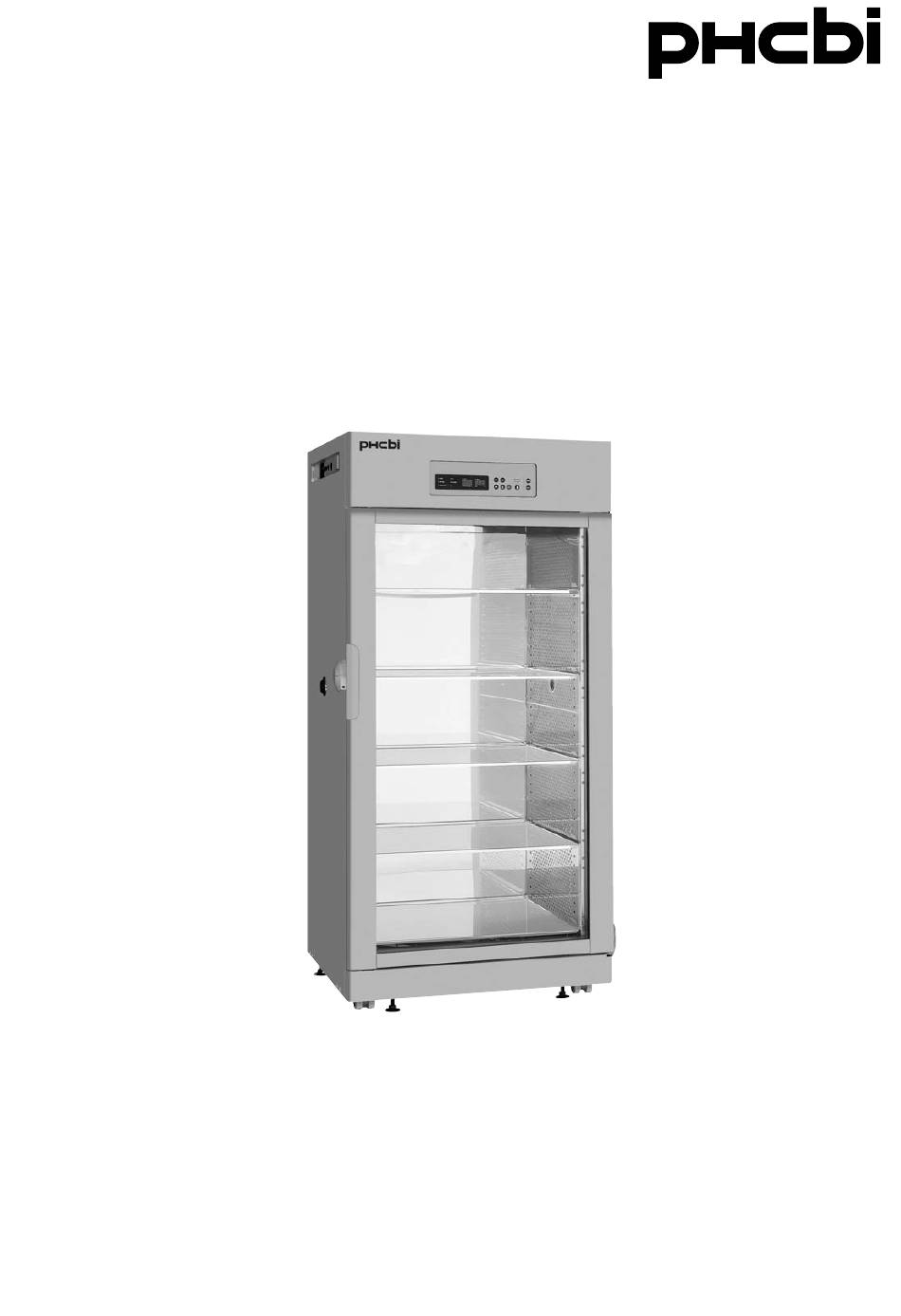

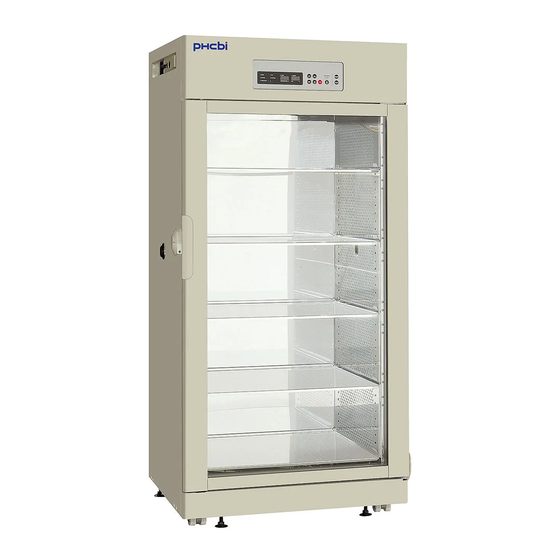

- Page 1 Operating Instructions Incubator MCO-80IC Series Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 42 for model number. ...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ....................2 PRECAUTIONS FOR SAFE OPERATION ............3 LABELS ON UNI ....................6 ENVIRONMENTAL CONDITIONS ..............7 INCUBATOR COMPONENTS ................8 Control panel and keypad ................10 Remote alarm terminal ................... 12 INSTALLATION SITE ..................13 INSTALLATION ....................14 Connection of CO gas cylinder .............. -
Page 4: Introduction
INTRODUCTION ■ Read this operating instruction carefully before using the Product and follow the instructions for safety operation. ■ Our company disavows any responsibility for safety if the Product is used for other than the intended use or used with any procedures other than those given in this operating instruction. ■... -
Page 5: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with this operating instruction as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 6 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor and take an adequate precaution to prevent the unit from turning over.
- Page 7 WARNING Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit as this may cause electric shock or short circuit. Never put containers with liquid on the unit as this may cause electric shock or short circuit when the liquid is spilled.
-
Page 8: Labels On Uni
PRECAUTIONS FOR SAFE OPERATION CAUTION This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. A multiple-tap may cause fire resulting from abnormal heating. Never store corrosive substances such as acid or alkali in this unit if the container cannot be sealed. -
Page 9: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1): ■ Indoor use; ■ Altitude up to 1000 m; ■ Ambient temperature 5 C to 40 ■ Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ■... -
Page 10: Incubator Components
INCUBATOR COMPONENTS 6 (inner face of ceiling) Rear upper side Upper left side 12, 13 Bottom of chamber When the bottom cover is removed 16,17... - Page 11 1. Outer door: Sticks to frame with magnetic seal. Door heater is installed in the door panel. The door window is double glass. 2. Leveling foot: Screw type for adjusting the height. Adjust the foot so that the unit can be level. 3.
-
Page 12: Control Panel And Keypad
INCUBATOR COMPONENTS Control panel and keypad 1. Digital temperature indicator (TEMPERATURE C): Normally, this indicator shows the chamber temperature. In the setting mode, it shows the set value of the chamber temperature. If the self diagnostic function detects any abnormality, an error code will be displayed. 2. - Page 13 16. Upper limit alarm reset key (RESET): Press this key while the over heat lamp blinks to reset the alarm. 17. Enter key (ENT): Pressing this key memorizes the set value in the controller. 18. Numerical value shift key ( ): Pressing this key in the setting mode causes the numerical value to shift.
-
Page 14: Remote Alarm Terminal
INCUBATOR COMPONENTS Remote alarm terminal The remote alarm terminal is located at the upper left side of the unit. Remote Alarm The remote alarm terminal is a contact output. MAX. DC 30 V, 2 A Normal : Open between COM to N.O. Close between COM to N.C. -
Page 15: Installation Site
INSTALLATION SITE To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: ■ A location not subjected to direct sunlight Do not install the unit under direct sunlight. Installation in a location subjected to direct sunlight cannot obtain the intended performance. -
Page 16: Installation
INSTALLATION SITE ■ Altitude up to 1000 m replace the outer glass door with specific one when the unit is used at an altitude of 1000 It is necessary to m or higher If the unit needs to be airfreighted, consult with our sales representative or agent INSTALLATION 1. -
Page 17: Connection Of Co Gas Cylinder
Connection of CO gas cylinder WARNING Check the gas type and ensure that it is fit for the purpose. Make sure that all pipes are connected correctly and are not liable to become disconnected. Ensure that the gas pressure is set at the specified value. -
Page 18: Cautions For Using Equipment In Chamber
CAUTIONS FOR USING EQUIPMENT IN CHAMBER ● Avoid abnormal temperature increase when an equipment is used in the chamber When using a heat emitting equipment such as a shaker or a bottle roller, the chamber temperature may rise abnormally. Abnormal rising of the chamber temperature is dangerous, so make sure to operate equipment without abnormal temperature rising. -
Page 19: Prevent Contamination
PREVENT CONTAMINATION To prevent contamination of the chamber, select an appropriate location for installation as well as the complete disinfection of the chamber components. ● Avoid hot and humid location Avoid location with high temperature and/or humidity as the presence of bacteria in the air is greater than in normal environment. -
Page 20: Cautions For Culture
CAUTIONS FOR CULTURE ● Do not subject to direct air flow Do not allow the air for air conditioning to hit the unit or door directly. Direct hit may cause condensation or contamination. ● Tray Make sure to set the bottom tray to the bottom position of side duct with tray support. This may cause condensation on bottom cover by varying air flow inside chamber. -
Page 21: Start-Up Of Unit
START-UP OF UNIT When start the test operation or the operation, follow these steps as below. 1. Install the unit referring to “INSTALLATION” on page 14. 2. Remove all transportation packaging materials and tapes. Then clean and sterilize the chamber and internal attachments. -
Page 22: Setting Of Chamber Temperature And Co Density
SETTING OF CHAMBER TEMPERATURE AND CO DENSITY Table below shows the basic procedure for setting the chamber temperature and CO density. The upper limit alarm temperature setting is also shown in the table. Perform key operations in the sequence indicated in the table. The example in the table is based on the assumption that the desired temperature is 37 C and CO density is 5 %. - Page 23 This product usually operates in approximately Mode Function 80 %R.H. setting. For approximately 90 %R.H. No humidifying mode No humidifying operation, the high humidity mode needs to be Normal mode Inner humidity 80 %R.H. set (the normal mode is set as default setting High humidity mode Inner humidity 90 %R.H.
- Page 24 SETTING OF CHAMBER TEMPERATURE AND CO DENSITY ● In each setting mode, the indicator returns to the current temperature and CO density display mode automatically when 90 seconds has passed without any key operation. ● Do not use the calibration key (CAL) on the control panel when the unit is under normal conditions. The unit enters calibration mode by pressing this key.
-
Page 25: Key Lock Function
KEY LOCK FUNCTION This unit is provided with a key lock function. When the key lock is ON, change of temperature or CO density setting through the key pad is not available. Note: The factory default setting value is OFF(L0). Display Mode Function... -
Page 26: Alarms & Safety Functions
ALARMS & SAFETY FUNCTIONS This unit has the alarms and safety functions shown in the table below, and also self diagnostic functions. Alarms and safety functions Alarm & Safety Situation Indication Buzzer Safety operation Over heat lamp lights. If the chamber temperature exceeds Upper limit E12 or E16 and chamber Heater OFF... - Page 27 Alarm & Safety Situation Indication Buzzer Safety operation E14 is displayed alternately Door heater If the door heater or the door heater with the temperature on the Intermittent tone Remote alarm abnormality relay goes open circuit. digital temperature indicator. E15 is displayed alternately Sensor box heater If the sensor box heater or the sensor with the temperature on the...
-
Page 28: Setting Of Alarm Resume Time
SETTING OF ALARM RESUME TIME The buzzer is silenced by pressing alarm buzzer stop key (BUZZER) on the control panel during alarm condition. The buzzer will be activated again after certain suspension if the alarm condition is continued. The suspension time can be set by following the procedure shown in the table below. The example in the table is based on the assumption that the desired duration is 20 minutes. -
Page 29: Routine Maintenance
ROUTINE MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. The water level sensor periodically generates heat at around 70 C that may be cause of burn injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. - Page 30 ROUTINE MAINTENANCE 5. Remove screws of the side ducts to dismount four side ducts. See Fig.4. 6. Remove screws at the lower both side to remove the front panel lower cover (Fig.5). Open the drain cock to drain all humidifying water, and it will drain through the drain outlet (Fig.6). Wipe off remained water with a dry gauze.
-
Page 31: Filling Water Reservoir
Filling water reservoir To fill the water reservoir, do the following: 1. Open the outer door and remove the lowest tray. See Fig.1. 2. Remove a screw in front side and rotate the water supply inlet cover to open the water supply inlet. See Fig.2. -
Page 32: Calibration Temperature Calibration
CALIBRATION Temperature calibration 1. Press the calibration key (CAL) for approximately 5 seconds. 2. The third digit of the digital temperature indicator flashes, and the digital CO density indicator goes out. 3. Set the present correct temperature with the digit shift key ( ) and numerical value shift key ( then press the enter key (ENT). -
Page 33: Co 2 Calibration
calibration Span setting Span setting should be done under stable condition of temperature, humidity, and CO density. 1. Press the calibration key (CAL) for about 5 seconds. 2. The third digit on the digital temperature indicator flashes, and the digital CO density indicator goes out. -
Page 34: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check out the following before calling for service. Malfunction Check/Remedy • The unit is not plugged correctly into a power outlet. The unit does not operate • The circuit breaker at the power source is active or a power failure at all. - Page 35 Note: If the malfunction is not eliminated after checking the chart in the preceding page, or the malfunction is not shown in the chart, contact our sales representative or agent.
-
Page 36: Disposal Of Unit
DISPOSAL OF UNIT WARNING If the unit is to be stored unused in an unsupervised area for an extended period ensure that children do not have access and doors cannot be closed completely. The disposal of the unit should be accomplished by appropriate personnel. Always remove doors to prevent accidents such as suffocation. - Page 37 DISPOSAL OF UNIT Note: This symbol mark and recycle system are applied only to EU countries and not applied to the countries in the other area of the world. Waste Electrical and Electronic Equipment (WEEE) Directive-2002/96/EC (English) Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general...
- Page 38 DISPOSAL OF UNIT (French) Informations relatives à l’évacuation des déchets, destinées aux utilisateurs d’appareils électriques et électroniques (appareils ménagers domestiques) Lorsque ce symbole figure sur les produits et/ou les documents qui les accompagnent, cela signifie que les appareils électriques et électroniques ne doivent pas être jetés avec les ordures ménagères.
- Page 39 (Portuguese) Informações sobre a eliminação de resíduos para utilizadores de equipamentos eléctricos e electrónicos (utilizadores particulares) Este símbolo nos produtos e/ou documentos anexos significa que os produtos eléctricos e electrónicos usados não devem ser misturados com os resíduos urbanos indiferenciados. Para efectuar um tratamento, recuperação e reciclagem correctos, leve estes produtos para pontos de recolha próprios para o efeito, onde serão aceites gratuitamente.
- Page 40 DISPOSAL OF UNIT (Dutch) Informatie over het weggooien van elektrische en elektronische apparatuur (particulieren) Dit symbool betekent in Europa dat gebruikte elektrische en elektronische producten niet bij het normale huishoudelijke afval mogen. Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt.
-
Page 41: Automatic Co Cylinder Changeover
AUTOMATIC CO CYLINDER CHANGEOVER Gas auto changer (MCO-80GC) is available as an optional accessory. This system switches the gas supply line when one CO gas cylinder is empty. Note: The installation of MCO-80GC should be implemented by a qualified service personnel. After attachment of MCO-80GC, do the following: 1. -
Page 42: Auto Water Supply System
AUTO WATER SUPPLY SYSTEM Auto water supply system (MCO-80AS) is Function available as an optional accessory. Automatic water supply OFF（default） This system kit supplies water from its tank Automatic water supply ON automatically when the water level alarm lamp (RH PAN) blinks due to decrease the water in the water reservoir. -
Page 43: Specifications
SPECIFICATIONS Product name Incubator MCO-80IC W986 mm x D853 mm x H2,040 mm (without caster; H1,975 mm) External dimensions W806 mm x D693 mm x H1,524 mm Internal dimensions 851 L Interior volume Painted steel Exterior Stainless steel containing copper Interior Double glass with door heater Outer door... -
Page 44: Performance
PERFORMANCE Incubator MCO-80IC Product name MCO-80IC-PK MCO-80IC-PE Model No. Ambient temperature +5 C to 50 C (ambient temperature; 20 C to 35 Temperature control range ±0.5 C (ambient temperature; 25 C, setting; 37 C, 5 %, no load) Temperature distribution ±0.1 C (ambient temperature;... -
Page 45: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Incubator contents : □ □ Risk of infection: □ □ Risk of toxicity: □... - Page 48 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan Printed in Japan LDCL041700-0 © PHC Corporation 2018 S0418-0...
