Summary of Contents for Phcbi MIR-H163 Series

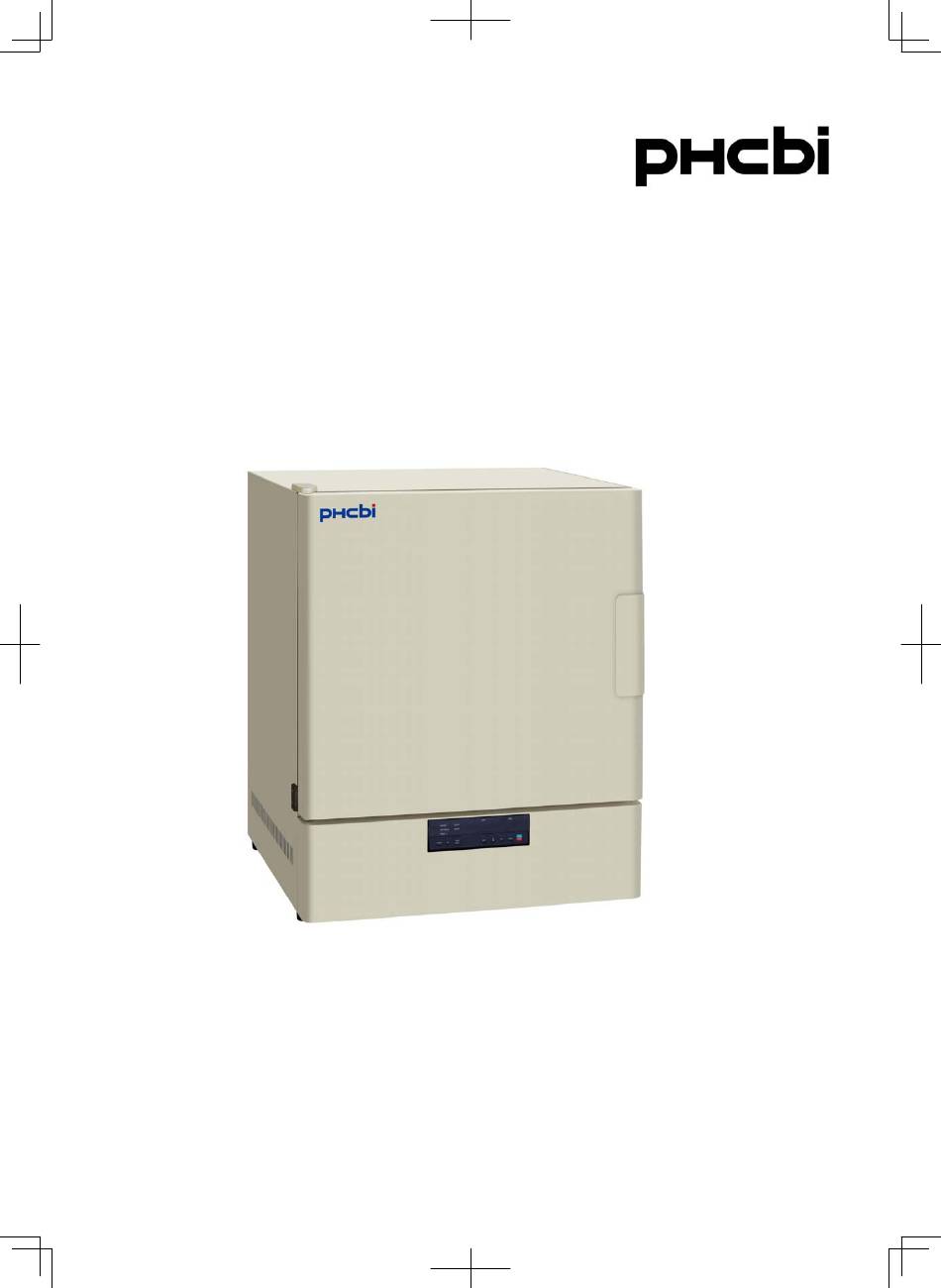

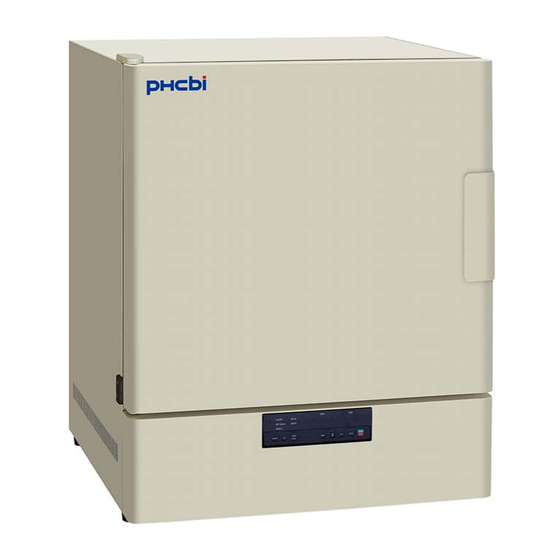

- Page 1 Operating Instructions Heated Incubator MIR-H163 MIR-H263 Series MIR-H263 Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 26 for all model numbers.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION P. 2 PRECAUTIONS FOR SAFE OPERATION P. 3 ENVIRONMENTAL CONDITIONS P. 7 INCUBATOR COMPONENTS P. 8 Control panel and keypad P. 10 INSTALLATION SITE P. 12 INSTALLATION P. 13 PRELIMINARY RUN P. 13 KEY OPERATION FLOW P. 14 NORMAL MODE AND TIMER MODE C P. -
Page 4: Introduction
INTRODUCTION Read the operating instructions carefully before using the Product and follow the instructions for safety operation. PHC Corporation disavows any responsibility for safety if the Product is used for other than the intended use or used with any procedures other than those given in the operating instructions. ... -
Page 5: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with the operating instructions as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 6 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. The installation by Only qualified engineers or service personnel should install the unit. unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor and take an adequate precaution to prevent the unit from turning over.
- Page 7 PRECAUTIONS FOR SAFE OPERATION WARNING Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit as this may cause electric shock or short circuit. Never put containers with liquid on the unit as this may cause electric shock or short circuit when the liquid is spilled.
- Page 8 PRECAUTIONS FOR SAFE OPERATION CAUTION This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. A multiple-tap may cause fire resulting from abnormal heating. Never store corrosive substances such as acid or alkali in this unit if the container cannot be sealed.
-
Page 9: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC-61010-1): Indoor use; Altitude up to 2000 m; Temperature 5 C to 40 Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ... -
Page 10: Incubator Components
INCUBATOR COMPONENTS Shelf (H163: 2 pcs.) (H263: 3 pcs.) Outer door 3, 4 (Inside) - Page 11 INCUBATOR COMPONENTS 1. Inner door: It is made of tempered glass. However, do not force the door. 2. Control panel: Refer to page 10. 3. Separation plate: Do not place objects directly on the plate. Culture containers made of resin may deform with heat.
-
Page 12: Control Panel And Keypad
INCUBATOR COMPONENTS Control panel and keypad 1. Power switch (POWER): Power switch of the control panel. 2. Delay timer key (DELAY): This key is to set a delay timer which controls the time from when the run/stop key (RUN/STOP) is pressed till when the unit starts an operation. Refer to page 14 to 17. 3. - Page 13 INCUBATOR COMPONENTS 10. Timer mode select key (TIMER MODE): This key is to switch a normal mode and a timer mode C. Normal mode: The operation is finished when a set time of operation timer is expired. Timer mode C: The operation continues with a set temperature even when a set time of operation timer is expired.
-
Page 14: Installation Site
INSTALLATION SITE To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: A location not subjected to direct sunlight Do not install the unit under direct sunlight. Installation in a place with direct sunlight cannot obtain the intended performance. -
Page 15: Installation
INSTALLATION 1. Remove the packaging materials and tapes Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a neutral detergent and wipe it up with a wet cloth. Note: Remove the cable tie banding the power supply cord. -
Page 16: Key Operation Flow
KEY OPERATION FLOW This flow chart shows the key operation from control panel. Present temperature is POWER Press the power switch. displayed. When the unit Saved delay time is operates without DELAY Press the delay timer key. displayed. delay time. Saved delay time is reset. -
Page 17: Normal Mode And Timer Mode C
NORMAL MODE AND TIMER MODE C The operation flow of this unit in the normal mode and the timer mode C is shown in Table 2 and Table 3. Table 2 Operation flow in normal mode (Timer mode C lamp: OFF) : Lamp ON : Lamp OFF Table 3 Operation flow in timer mode C (Timer mode C lamp: ON) -
Page 18: Stable Running
STABLE RUNNING Table 4 shows the basic procedure for setting the chamber temperature. Perform key operations in the sequence indicated in the table. The example in the table is based on the assumption that the desired temperature is 37 C and the operation status is a continuous running. The initial setting, which are set at factory, Note: are that the delay timer is OFF, the chamber... -
Page 19: Stable Running With Delay Time
STABLE RUNNING WITH DELAY TIME Table 5 shows one of applications. Perform key Buzzer operations in the sequence indicated in the table. The example in the table is the delay time that is 30 minutes, the chamber temperature is 50 C, the running time is 1 hour and the timer mode is Timer Mode C. -
Page 20: Alarms And Safety Functions
ALARMS AND SAFETY FUNCTIONS The incubator supports the following alarms, safety functions, and self-diagnostic functions. Alarms and safety functions Alarm & Situation Indication Buzzer Safety operation Safety Automatic set Alarm lamp lights. The internal temperature is over temperature All digits on the temp. Intermittent tone ----- +/-2.5... -
Page 21: Routine Maintenance
ROUTINE MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. -
Page 22: Troubleshooting
TROUBLE SHOOTING If the unit malfunctions, check out the following before calling for service. Malfunction Check/Remedy • The unit is not plugged correctly into a power outlet. • The circuit breaker at the power source is active. The unit does not operate at all. - Page 23 DISPOSAL OF UNIT (English) Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
- Page 24 DISPOSAL OF UNIT (French) Informations relatives à l’évacuation des déchets, destinées aux utilisateurs d’appareils électriques et électroniques (appareils ménagers domestiques) Lorsque ce symbole figure sur les produits et/ou les documents qui les accompagnent, cela signifie que les appareils électriques et électroniques ne doivent pas être jetés avec les ordures ménagères.
- Page 25 DISPOSAL OF UNIT (Portuguese) Informações sobre a eliminação de resíduos para utilizadores de equipamentos eléctricos e electrónicos (utilizadores particulares) Este símbolo nos produtos e/ou documentos anexos significa que os produtos eléctricos e electrónicos usados não devem ser misturados com os resíduos urbanos indiferenciados.
- Page 26 DISPOSAL OF UNIT (Dutch) Informatie over het weggooien van elektrische en elektronische apparatuur (particulieren) Dit symbool betekent in Europa dat gebruikte elektrische en elektronische producten niet bij het normale huishoudelijke afval mogen. Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt.
-
Page 27: Specifications
SPECIFICATIONS Product name Heated Incubator MIR-H163 Heated Incubator MIR-H263 External dimensions W580 mm x D595 mm x H820 mm W730 mm x D645 mm x H870 mm Internal dimensions W450 mm x D460 mm x H450 mm W600 mm x D510 mm x H500 mm Effective capacity 93 L 153 L... -
Page 28: Performance
PERFORMANCE Heated Incubator MIR-H163 Product name MIR-H163-PT MIR-H163-PA MIR-H163-PK MIR-H163-PE Model number Ambient temp.+5 C to 60 C (ambient temp.: 0 C to less than 20 C, no load) Temperature control range Ambient temp.+5 C to 80 C (ambient temp.: 20 C to 35 C, no load) ±0.2... -
Page 29: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Unit contents: □ □ Risk of infection: □ □ Risk of toxicity: □ □... - Page 32 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan © PHC Corporation 2018 Printed in Indonesia LDCL043600-0 N0418-0...
