POWER WASHERS FOR TODAY'S DIRT WARRIORS.

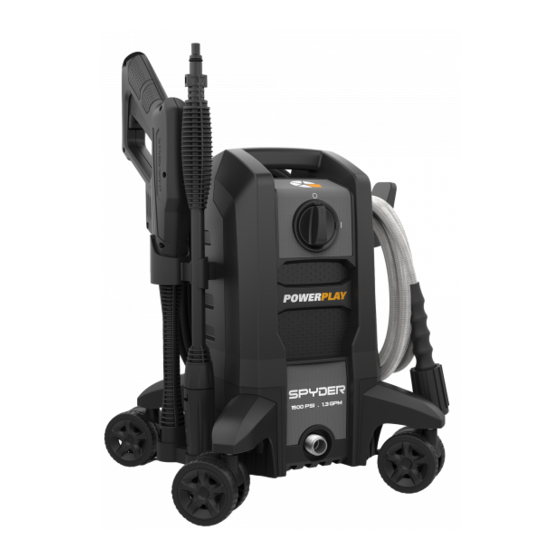

SPYDER
Electric Pressure Washer
Assembly, Care and Use Instructions
SPY1500VC
Read carefully. Retain these instructions and
attach receipt to manual for future reference.
IMPORTANT: NEVER use an extension cord with this
unit. It may cause damage to the motor and VOID the
warranty.
ALWAYS WEAR EYE PROTECTION TO
PREVENT INJURY TO EYES WHEN
OPERATING THE POWER WASHER.
Questions, problems, missing parts?
Before returning to your retailer, contact our customer service department at 1-855-770-7529 or
custserv@powerplaypro.com, 8:00 a.m. - 4:00 p.m., EST, Monday - Friday. www.powerplaypro.com
SPY-21
REVISION 1-0621
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powerplay SPY1500VC
Summary of Contents for Powerplay SPY1500VC
- Page 1 POWER WASHERS FOR TODAY’S DIRT WARRIORS. SPYDER Electric Pressure Washer Assembly, Care and Use Instructions SPY1500VC Read carefully. Retain these instructions and attach receipt to manual for future reference. IMPORTANT: NEVER use an extension cord with this unit. It may cause damage to the motor and VOID the warranty.
-
Page 2: Table Of Contents
Table of Contents Package Contents ..........................Product Specifications ........................Safety Information ..........................Preparation ............................Assembly Instructions........................Important Initial Startup ........................Operating Instructions ........................Care and Maintenance ........................Troubleshooting ..........................One Year Limited Consumer Warranty ..................Replacement Parts .......................... -
Page 3: Package Contents
Adaptivewash™ Spray Wand Casters Detergent Bottle Bracket Power Washer Unit Detergent Bottle Hose Holder Bracket Spray Tip Cleaner O-Ring Replacement Kit Flexwash Hose ® Product Specifications Model (lbs/sq. in.) (Gal/per min) Water Temperature Volts Amps Weight (lbs.) SPY1500VC 1500 Cold water 12.56... -
Page 4: Safety Information
Safety Information IMPORTANT SAFETY INSTRUCTIONS This power washer conforms to CSA and other safety • and consumer standards. DO NOT modify or rebuild Please read and understand this entire manual before any part of your power washer. attempting to assemble, operate, or install the product. •... - Page 5 To reduce the risk of injury, close supervision is • NEVER use lances or other parts that are not necessary when product is used near children. compatible for this specific Powerplay unit. • Know how to stop the product and bleed pressures •...
-
Page 6: Preparation
Preparation Estimated Assembly Time: 10 minutes Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, attempt to assemble the product, contact customer service DO NOT 855-770-7529 or custserv@powerplaypro.com Assembly Instructions... - Page 7 Assembly Instructions Slide detergent bottle bracket (K) onto tab on back of power washer unit (D). Slide upper spray gun holder (A) tab into slot on left side of power washer unit (D). From below, slide lower spray gun holder (B) tabs into slots on bottom left side of power washer unit (D).
- Page 8 Assembly Instructions Hold back the collar at one end of the hose (G). Push firmly to connect hose fitting to the water outlet tube on the front of the power washer unit (D). Twist the collar clockwise to secure. Confirm hose is locked into the water outlet by slightly pulling on the hose.
- Page 9 Assembly Instructions To lock the trigger of the spray gun (H), aim the gun away from you and pull up on the safety lock (I). After doing so, squeeze or pull the trigger to make sure it is locked and will not move. ALWAYS keep spray gun (H) locked when not in use.
-
Page 10: Important Initial Startup
Important Initial Startup Release the spray gun safety lock (I) on the spray gun (H). Point the spray gun in a safe direction and squeeze the trigger until there is a steady stream of water, releasing water and air out of the hose. Then turn the machine to the “ON”... - Page 11 Operating Instructions Operation Tips Using the Detergent Bottle • It is normal to hear the motor run intermittently when 1. Detach the lance from the high pressure gun. the trigger is not being squeezed. The pump is priming itself to operate when the trigger is squeezed. •...
-
Page 12: Care And Maintenance
Care and Maintenance Cleaning Garden Hose Adapter Moving and Storage Instructions The screens inside the garden hose adapter should be 1. When the pressure washing session is complete, turn cleaned periodically. off the power switch. 1. Rinse with clean water. 2. -
Page 13: Troubleshooting
2. Pull trigger on gun to ensure water flow. 3. If it is still not working, call Powerplay Customer Service at 855-770-7529 ext. 252 Note: When power switch is turned on, the power washer will turn on by itself for 1-2 seconds and shut off. -
Page 14: One Year Limited Consumer Warranty
Warranty The one year limited consumer warranty of this product is covered by Powerplay Corporation. This product has a 1 (one) year limited consumer warranty. Please read the following carefully to understand what the warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1(one) year. -
Page 15: Replacement Parts
Replacement Parts 1-855-770-7529. For replacement parts, call our customer service department at 8:00 a.m. - 4:00 p.m., EST, Monday - Friday or order online at www.powerplaypro.com. O-Ring Part Description Part # Part Description Part # Upper Spray Gun Holder PWXA100 Spray Gun PWXA103 Lower Spray Gun Holder...
