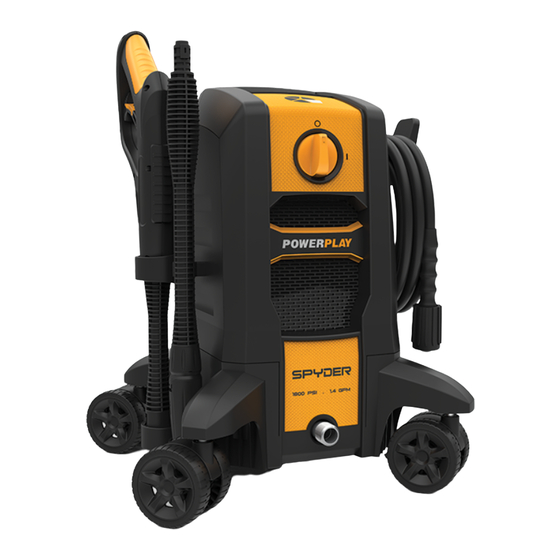

SPYDER
Electric Pressure Washer
Assembly, Care and Use Instructions
SPY1800D
SPY1800DC
Read carefully. Retain these instructions and
attach receipt to manual for future reference.
IMPORTANT: NEVER use an extension cord with this
unit. It may cause damage to the motor and VOID the
warranty.
ALWAYS WEAR EYE PROTECTION TO
PREVENT INJURY TO EYES WHEN
OPERATING THE POWER WASHER.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at 1-855-770-7529,
9:00 a.m. - 5:00 p.m., EST, Monday - Friday. www.powerplaypro.com
SPY1800D/DC-04
Advertisement
Table of Contents
Related Manuals for Powerplay SPYDER SPY1800D
Summary of Contents for Powerplay SPYDER SPY1800D
- Page 1 SPYDER Electric Pressure Washer Assembly, Care and Use Instructions SPY1800D SPY1800DC Read carefully. Retain these instructions and attach receipt to manual for future reference. IMPORTANT: NEVER use an extension cord with this unit. It may cause damage to the motor and VOID the warranty.
-
Page 2: Table Of Contents
Table of Contents Package Contents ..........................Product Specifications ........................Safety Information ..........................GFCI ..............................Preparation ............................Assembly Instructions........................Operating Instructions ........................Care and Maintenance ........................Troubleshooting ..........................One Year Limited Consumer Warranty ..................Replacement Parts List ........................ -
Page 3: Package Contents
Package Contents SPY1800VC SPY1800V O-Ring Part Description Quantity Part Description Quantity Hose Upper Spray Gun Holder Spray Gun Lower Spray Gun Holder Spray Gun Safety Lock Casters Power Washer Unit Lance Foam Cannon Bracket Hose Holder Foam Cannon O-Ring Replacement Kit Product Specifications Max PSI Max GPM... -
Page 4: Safety Information
Safety Information Please read and understand this entire manual before • DO NOT use your power washer when you are under attempting to assemble, operate, or install the product. the influence of alcohol or drugs. Use this power tool carefully and only when you are alert. This manual contains information that relates to Watch your balance and footing while using your •... -
Page 5: Gfci
NEVER use lances or other parts that are not • • NEVER leave the power washer “ON” while it is compatible for this specific Powerplay unit. unattended. NEVER spray any electrical outlet with your power • •... -
Page 6: Preparation
Preparation Before beginning assembly of product, make sure all parts Estimated Assembly Time: 10 minutes are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, 855-770-7529 contact customer service at attempt DO NOT to assemble the product. - Page 7 Assembly Instructions Slide foam cannon bracket (K) onto tab on back of power washer unit (D). Slide upper spray gun holder (A) tab into slot on left side of power washer unit (D). From below, slide lower spray gun holder (B) tabs into slots on bottom left side of power washer unit (D).
- Page 8 Assembly Instructions Hold back the collar at one end of the end of the hose (G). Push firmly to connect hose fitting to the water outlet tube on the front of the power washer unit (D). Twist the collar clockwise to secure. Confirm hose is locked into the water outlet by slightly pulling on the hose.
- Page 9 Assembly Instructions To lock the trigger of the spray gun (H), aim the gun away from you and pull up on the safety lock (I). After doing so, squeeze or pull the trigger to make sure it is locked and will not move. ALWAYS keep spray gun (H) locked when not in use.
-
Page 10: Operating Instructions
Operating Instructions Operation Tips 1. Turn on water supply at the faucet. 2. Make sure the “ON/OFF” switch is in the “OFF” • When using detergent, fill bottle with a properly position. The power switch has international formulated detergent-to-water ratio, following symbols: On (|) Off (O). - Page 11 Operating Instructions Cleaning Garden Hose Adapter Using the Foam Cannon The screens inside the garden hose adapter should be 1. Detach the lance from the high pressure gun. cleaned periodically. 1. Rinse with clean water. 2. Place back into the adapter. 2.
-
Page 12: Care And Maintenance
Care and Maintenance Cleaning Nozzles Storage A clogged or partially clogged nozzle can cause significant 1. When the pressure washing session is complete, turn reduction of water pressure coming out of the nozzle off the power switch. and/or cause the unit to pulsate while spraying. 2. -
Page 13: Troubleshooting
Troubleshooting If you have any questions regarding the product, please call customer service at 1-855-770-7529. Problem Corrective Action Unit will not turn on. 1. Make sure the power washer is OFF. Plug the electrical cord into a grounded 120 volt outlet (no electrical extension cord should be used). -
Page 14: One Year Limited Consumer Warranty
Warranty The one year limited consumer warranty of this product is covered by Powerplay Corporation. This product has a 1 (one) year limited consumer warranty. Please read the following carefully to understand what the warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship for a period 1(one) year. -
Page 15: Replacement Parts List
Replacement Parts 1-855-770-7529. For replacement parts, call our customer service department at 9:00 a.m. - 5:00 p.m., EST, Monday - Friday or order online at www.powerplaypro.com. SPY1800V O-Ring Part Description Part # Part Description Part # Foam Cannon Bracket PWXA095 Caster PWXA093 Foam Cannon...
