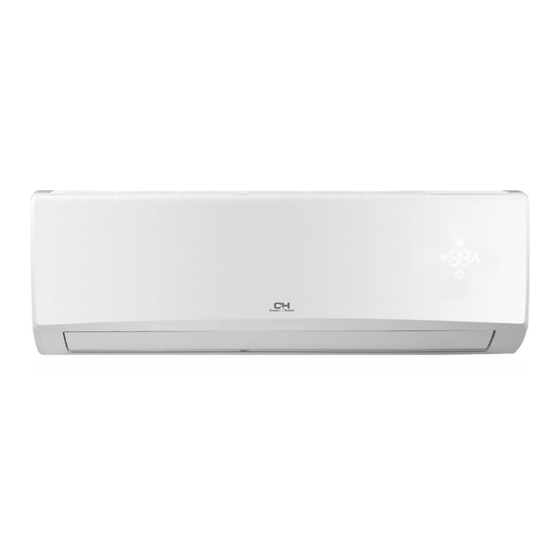

- Page 1 Service Manual Model: CH-S18FTXE-NG CH-S18FTXQ-NG (Refrigerant R32)
-
Page 2: Table Of Contents
Service Manual Table of Contents Part Ⅰ : Technical Information ...............1 1. Summary ........................1 2. Specifications ......................2 2.1 Specification Sheet ......................2 2.2 Operation Characteristic Curve ..................4 2.2 Capacity Curve in Different Outdoor Temperature ............4 2.3 Cooling and Heating Data Sheet in Rated Frequency .............4 2.5 Noise Curve . - Page 3 Service Manual 9. Maintenance ......................39 9.1 Malfunction Display of Indoor Unit ..................39 9.2 Procedure of Troubleshooting ..................41 9.3 Maintenance method for normal malfunction ..............59 10. Exploded View and Parts List ..............61 10.1 Indoor Unit ........................61 10.2 Outdoor Unit .........................63 11. Removal Procedure ..................65 11.1 Removal Procedure of Indoor Unit ................65 11.2 Removal Procedure of Outdoor Unit ................70...
-
Page 4: Part Ⅰ : Technical Information
Service Manual Part Ⅰ : Technical Information 1. Summary Indoor Unit: Outdoor Unit: Remote Controller: Technical Information... -
Page 5: Specifications
Service Manual 2. Specifications 2.1 Specification Sheet Model CH-S18FTXE-NG Rated Voltage 220-240 Power Rated Frequency Supply Phases Power Supply Mode Outdoor Cooling Capacity 5000 (650-5200) Heating Capacity 5300 (700-5480) Cooling Power Input 1390 (150-1700) Heating Power Input 1340 (160-1600) Cooling Power Current... - Page 6 Service Manual Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR CO., LTD Compressor Model QXF-B096zE190A Compressor Oil FW68DA Compressor Type Rotary L.R.A. 16.5 Compressor RLA 4.21 Compressor Power Input Overload Protector Throttling Method Capillary Operation Temp 16~30 Ambient Temp (Cooling) -15~48 Ambient Temp (Heating) -15~24 Condenser Form Aluminum Fin-copper Tube...
-
Page 7: Operation Characteristic Curve
Service Manual 2.2 Operation Characteristic Curve Cooling Heating 220V Conditions 220V Indoor: DB27°C/WB19°C Outdoor: DB35°C/WB24°C Indoor air flow: High Pipe length: 5m 230V 230V 240V Conditions Indoor: DB20°C/WB15°C 240V Outdoor: DB7°C/WB6°C Indoor air flow: High Pipe length: 5m 10 20 30 40 50 60 70 80 90 100 Compressor speed (rps) Compressor speed (rps) 2.2 Capacity Curve in Different Outdoor Temperature... -
Page 8: Noise Curve
Service Manual 2.5 Noise Curve Outdoor side noise Indoor side noise High Super High Middle Indoor Fan Motor Rotating Speed Compressor frequency/Hz Technical Information... -
Page 9: Outline Dimension Diagram
Service Manual 3. Outline Dimension Diagram 3.1 Indoor Unit Ф55 Ф55 Ф55 Ф55 Φ55 Φ55 Unit:mm Model Φ55 Φ55 Technical Information... -
Page 10: Outdoor Unit
Service Manual 3.2 Outdoor Unit Unit:mm Technical Information... -
Page 11: Refrigerant System Diagram
Service Manual 4. Refrigerant System Diagram Cooling and heating model Outdoor unit Indoor unit Gas pipe side Valve 4-Way valve Di s charge Heat Accumlator Suction exchanger Compressor (evaporator) Heat exchanger Liquid pipe (condenser) side Valve Strainer Capillary Strainer COOLING HEATING Connection pipe specification: Liquid pipe:1/4"... -
Page 12: Electrical Part
Service Manual 5. Electrical Part 5.1 Wiring Diagram ●Instruction Symbol Symbol Color Symbol Symbol Color Symbol Name White Green Jumper cap Yellow Brown COMP Compressor Blue Grounding wire YEGN Yellow/Green Black Violet Orange Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model. ●... - Page 13 Service Manual ● Outdoor Unit 600007000884 These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit. Technical Information...
-
Page 14: Pcb Printed Diagram
Service Manual 5.2 PCB Printed Diagram Indoor Unit ● Top view Name Interface of communication wire for indoor unit and outdoor unit 2 Interface of live wire Interface of health function neutral wire 4 Interface of neutral wire 5 Interface of fan 6 Interface of health function live wire 7 Jumper cap 8 Auto button... - Page 15 Service Manual Outdoor Unit ● Top view Name Compressor Reactor 2 Reactor 1 Chassis electric heating Compressor electric heating 4-way valve DC fan Earthing wire Communication wire Neutral wire Live wire Electronic expansion valve Temperature sensor Overloard DRED ● Bottom view Technical Information...
-
Page 16: Function And Control
Service Manual 6. Function and Control 6.1 Remote Controller Introduction ON/OFF button MODE button FAN button SWING button TURBO button ▲/ button SLEEP button TEMP button I FEEL button LIGHT button CLOCK button TIMER ON / TIMER OFF button Introduction for icons on display screen Set fan speed I feel Send signal... - Page 17 Service Manual 1. ON/OFF button Press this button can turn on or turn off the air conditioner. After turning on the air conditioner, operation indicator " "on indoor units display is ON (green indicator. The colour is different for different models), and indoor unit will give out a sound. 2.
- Page 18 Service Manual 7. SLEEP button Under COOL, HEAT or DRY mode, press this button to start up sleep function. " " icon is displayed on remote controller. Press this button again to cancel sleep function and " " icon will disappear. 8.
- Page 19 Service Manual Function introduction for combination buttons 1. Energy-saving function Under cooling mode, press "TEMP" and " CLOCK" buttons simultaneously to start up or turn off energy-saving function. When energy-saving function is started up, "SE" will be shown on remote controller, and air conditioner will adjust the set temperature automatically according to ex-factory setting to reach to the best energy-saving effect.
- Page 20 Service Manual Technical Information...
-
Page 21: Ewpe Smart App Operation Manual
Service Manual 6.2 Ewpe Smart App Operation Manual Control Flow Chart Internet Cloud intelligent Cellular/ Home Wi-Fi home Other Wi-FI appliances Home wireless router Home Wi-Fi Operating Systems Requirement for User's smart phone: iOS system Android system Support iOS7.0 and Support Android 4.4 and above version above version... -
Page 22: Brief Description Of Modes And Functions
Service Manual 6.3 Brief Description of Modes and Functions 1.Basic function of system (1)Cooling mode (1) Under this mode, fan and swing operates at setting status. Temperature setting range is 16~30 (2) During malfunction of outdoor unit or the unit is stopped because of protection, indoor unit keeps original operation status. (2)Drying mode (1) Under this mode, fan operates at low speed and swing operates at setting status. - Page 23 Service Manual (8)I feel control mode After controller received I feel control signal and ambient temperature sent by remote controller, controller will work according to the ambient temperature sent by remote controller. (9)Compulsory defrosting function (1) Start up compulsory defrosting function Under ON status, set heating mode with remote controller and adjust the temperature to 16 C.
- Page 24 Service Manual Outdoor Units 1. Input Parameter Compensation and Calibration (1) Check the ambient temperature compensation function Indoor ambient temperature compensation function. a. In cooling mode, the indoor ambient temperature participating in computing control = (T – ⊿ T indoor ambient temperature cooling indoor ambient temperature compensation b.
- Page 25 Service Manual 3. Special Functions Defrosting Control ① Conditions for starting defrosting After the time for defrosting is judged to be satisfied, if the temperature for defrosting is satisfied after detections for continuous 3minutes, the defrosting operation will start. ② Conditions of finishing defrosting The defrosting operation can exit when any of the conditions below is satisfied: ③...
- Page 26 Service Manual 1. Starting estimation: After the compressor stopped working for 180s, if T >[T (the temperature of hysteresis is 2 )], the inner pipe frozen-preventing frequency-limited temperature machine is only allowed to start for operating, otherwise it should not be started, and should be stopped to treat according to the frozen- preventing protection: Clear the trouble under the mode of power turn-off / heating, and the protection times are not counted.
- Page 27 Service Manual 1. Frequency limited If [T ]≤T <[T ] , you should limit the frequency raising of heating overload frequency-limited temperature inner pipe heating overload frequency reducing temperature at normal speed compressor. 2. Reducing frequency at normal speed and stopping machine: If T[ ]≤T <[T...
- Page 28 Service Manual (6)Voltage sag protection After start the compressor, if the time of DC link Voltage sag [U ] is measured to be less than t Voltage sag protection time , Sagging protection voltage the machine should be stop at once, hand on the voltage sag trouble, reboot automatically after 30 minutes. (7)Communication fault When you have not received any correct signal from the inner machine in three minutes, the machine will stop for communication fault.
- Page 29 Service Manual (12) Starting-up Failure Protection for Compressor Stop the compressor after its starting-up fails, restart it after 20s if the fault doesnt shows, and if they are all failing for the successive start 3 times, it shall be reported as Starting-up Failure, and then restart up it after 3 min. When it still not be able to operate through carry out the above process for 5 times, it is available if press ON/OFF.
- Page 30 Service Manual 6. Electric Heating Function of Chassis (1) When T ≤0ºC, the electric heating of chassis will operate; outdoor amb. (2) When T >2ºC, the electric heating of chassis will stop operation; outdoor amb. (3)When 0ºC<T ≤2ºC, the electric heating of chassis will keep original status. outdoor amb.
-
Page 31: Part Ⅱ : Installation And Maintenance
Service Manual Part Ⅱ : Installation and Maintenance 7. Notes for Installation and Maintenance Safety Precautions: 10. If the power cord or connection wire is not long enough, please get the specialized power cord or connection wire Important! from the manufacture or distributor. Prohibit prolong the wire by yourself. - Page 32 Service Manual Safety Precautions for Installing and Relocating the Unit: To ensure safety, please be mindful of the following precautions. Warnings 1. When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant.
- Page 33 Service Manual Safety Operation of Flammable Refrigerant Qualification requirement for installation and maintenance man ●All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
- Page 34 Service Manual Main Tools for Installation and Maintenance 1. Level meter, measuring tape 2. Screw driver 3. Impact drill, drill head, electric drill 4. Electroprobe 5. Universal meter 6. Torque wrench, open-end wrench, inner hexagon spanner 7. Electronic leakage detector 8.
-
Page 35: Installation
Service Manual 8. Installation 8.1 Installation Dimension Diagram Space to the wall At least 15cm At least 15cm Space to the wall Drainage pipe Installation and Maintenance... - Page 36 Service Manual Installation procedures Start installation Preparation before installation Read the requirements select installation Prepare tools for electric connection location Select indoor unit Select outdoor unit installation location installation location Install the support of outdoor unit Install wall-mounting (select it according to the actual situation) frame, drill wall holes Connect pipes of indoor Fix outdoor unit...
-
Page 37: Installation Parts-Checking
Service Manual 8.4 Requirements for electric connection 8.2 Installation Parts-checking 1. Safety Precaution (1) Must follow the electric safety regulations when installing Name Name Indoor unit Sealing gum the unit. Outdoor unit Wrapping tape (2) According to the local safety regulations, use qualified Support of outdoor power supply circuit and air switch. - Page 38 Service Manual 5. Connect the Pipe of Indoor Unit (2) Drill the screw fixing holes on the wall with impact drill (the (1) Aim the pipe joint at the corresponding bellmouth.(As show specification of drill head should be the same as the plastic in Fig.5) expansion particle) and then fill the plastic expansion particles (2) Pretightening the union nut with hand.
- Page 39 Service Manual 7. Connect Wire of Indoor Unit 8. Bind up Pipe (1) Open the panel, remove the screw on the wiring cover and (1) Bind up the connection pipe, power cord and drain hose then take down the cover.(As show in Fig.11) with the band.(As show in Fig.14) screw (2) Reserve a certain length of drain hose and power cord...
-
Page 40: Installation Of Outdoor Unit
Service Manual 8.6 Installation of Outdoor unit Refer to the following table for wrench moment of force: Tightening torque(N . m) 1. Fix the Support of Outdoor Unit(Select it according to Hex nut diameter(mm) the actual installation situation) Φ6 15~20 Φ9.52 30~40 (1) Select installation location according to the house structure. -
Page 41: Vacuum Pumping And Leak Detection
Service Manual (3) The water outlet cant be placed in water in order to drain 8.8 Check after Installation and Test smoothly.(As show in Fig.27) operation 1. Check after Installation Check according to the following requirement after finishing installation. The drain hose can't be fluctuant Items to be checked Possible malfunction Has the unit been... -
Page 42: Maintenance
Service Manual 9. Maintenance 9.1 Malfunction Display of Indoor Unit 1. Malfunction display requirement When there are several malfunctions, they will be displayed circularly. 2. Malfunction display method (1) Hardware malfunction: immediate display; refer to “malfunction display table”; (2) Operation state: immediate display; refer to “malfunction display table”; (3) Other malfunctions: it is displayed after the compressor stops for 200s;... - Page 43 Service Manual ●Discharging method (1) remove the inverter cover(Outdoor Unit) Inverter cover P.C.board (Soldered surface) (2)As shown below,connect the discharge resistance(approx.100Ω20W)or plug of the sold ering iron to voltage between + - terminals of the electrolytic capacitor on PC Board for 30s, and then peformedischarging. NOTE: A large-capacity electrolytic capacitor is used in the outdoor unit controller(inverter).Therefore,if the power supply is turned off,charge(charging voltage DC280V to 380V)remains and disc harging takes a lot of time..
-
Page 44: Procedure Of Troubleshooting
Service Manual 9.2 Procedure of Troubleshooting Indoor unit (1) Malfunction of Temperature Sensor F1, F2 Main detection points: ● Is the wiring terminal between the temperature sensor and the controller loosened or poorly contacted? ● Is there short circuit due to trip-over of the parts? ●... - Page 45 Service Manual (2) Malfunction of Blocked Protection of IDU Fan Motor H6 Main detection points: ● SmoothlyIs the control terminal of PG motor connected tightly? ● SmoothlyIs the feedback interface of PG motor connected tightly? ● The fan motor cant operate? ●...
- Page 46 Service Manual (3) Malfunction of Protection of Jumper Cap C5 Main detection points: ● Is there jumper cap on the mainboard? ● Is the jumper cap inserted correctly and tightly? ● The jumper is broken? ● The motor is broken? ●...
- Page 47 Service Manual (4) Malfunction of Zero-crossing Inspection Circuit Malfunction of the IDU Fan Motor U8 Main detection points: ● Instant energization afte de-energization while the capacitordischarges slowly? ● The zero-cross detectioncircuit of the mainboard is defined abnormal? Malfunction diagnosis process: Start Turn power off for 1minute,the turn...
- Page 48 Service Manual (5) Communication malfunction (E6) Troubleshooting for E6 malfunction Disconnect power and check if the connection wire of indoor and outdoor units and the built-in wire of electric box are correctly connected. Connect the wire properly according Is malfunction Correct connection? to the wiring eliminated?
- Page 49 Service Manual (6). Malfunction of detecting plate(WIFI) JF Start check if the connection wire are correctly connected detecting Replace the plate with the same model Is malfunction eliminated Replace the mainboard with the same model The end Installation and Maintenance...
- Page 50 Service Manual Outdoot Unit (1) Malfunction of Desynchronizing of Compressor (H7) Main check point: Whether the system pressure is too high? Whether the electronic expansion valve can work normally? Whether the radiation for the unit is in good condition? Malfunction diagnosis process: Desynchronizing malfunction occurs after de-energizing and turning on the unit...
- Page 51 Service Manual Desynchronizing malfunction occurs during operation process Check whether Whether the outdoor fan can Replace fan capacitor the fan terminal is operate normally? connected well Improve the radiation circumstances for the Whether the radiation for the unit (such as clean heat unit is in good condition? Replace outdoor fan exchanger, improve...
- Page 52 Service Manual (2) Malfunction of Temperature Sensor (F3/F4/F5) Main check point: Whether the temperature sensor is damaged? Whether the terminal of temperature sensor is loose or not connected? Whether the main board is damaged? Malfunction diagnosis process: Start the troubleshooting for temperature sensor Check the connection between temperature sensor and wiring...
- Page 53 Service Manual (3) Malfunction of Overload Protection of Compressor (H3) and Discharge High-temperature Protection of Compressor (E4) Main check point: Whether the electronic expansion valve is connected well and whether its damaged? Whether the refrigerant is leaking? Whether the overload protector is damaged? Malfunction diagnosis process: Start Whether the overload protector is...
- Page 54 Service Manual (4) Charging Malfunction of Capacitor (PU) Main check point: Whether input power is normal? Main board is damaged. Malfunction diagnosis process: Energize and turn on the unit; wait for 1 min Measure the voltage at both ends of big electrolytic capacitor with the DC notch of universal meter There is malfunction for the...
- Page 55 Service Manual (5) Malfunction of Overload Protection (E8) Main check point: Whether the tube temperature sensor is normal? Whether the outdoor ambient temperature is within the normal range? Whether indoor fan and outdoor fan can operate normally? Whether radiation environment inside or outside the unit is good? Malfunction diagnosis process: Start Replace the tube temperature...
- Page 56 Service Manual (6) Malfunction of IPM Protection (H5) Main check point: Whether input voltage is within the normal range? Whether wires of compressor are connected reliably, tightly or correctly? Whether the resistance of compressor coil is normal? Whether the insulation between compressor coil and copper pipe is in good condition? Whether the unit is overloading? Whether the radiation for the unit is in good condition? Whether the volume of charged refrigerant is proper?
- Page 57 Service Manual (7) Malfunction of PFC Protection (HC) Main check point: Whether power supply is normal? Malfunction diagnosis process: Start Check whether power supply is normal Turn on the unit again after the power is Is power abnormal? resumed Replace main board of outdoor unit Installation and Maintenance...
- Page 58 Service Manual (8) Malfunction of Communication (E6) Main check point: Check whether connection wires between indoor unit and outdoor unit and wiring inside the unit are connected well? Check the main board of indoor unit or main board of outdoor unit is damaged? Malfunction diagnosis process: Communication malfunction De-energize the unit and then...
- Page 59 Service Manual (9) Malfunction of Failure Start-up of Compressor (LC) Main check point: Whether the compressor wires are connected correctly? Whether the stop time for compressor is enough? Whether compressor is damaged? Whether the refrigerant-charging volume is superfluous? Malfunction diagnosis process: Energize and turn on the unit Whether the stop time for...
- Page 60 Service Manual (10) Malfunction of Overcurrent Protection E5 Main detection points: ● Is the supply voltage unstable with big fluctuation? ● Is the supply voltage too low with overload? ● Hardware trouble? Malfunction diagnosis process: Start Normal fluctuation should be within 10 % Is malfunction Is the supply voltage unstable of the rated voltage on the nameplate...
- Page 61 Service Manual (11) Other Malfunction 1.IPM module temperature sensor is open-circuited (P7) Hardware of main board is damaged. Please replace main board. 2.Overheating protection of IPM module (P8) ① Poor radiation because the module radiator is dirty; ② IPM module is damaged; ③...
-
Page 62: Maintenance Method For Normal Malfunction
Service Manual 9.3 Maintenance method for normal malfunction 1. Air Conditioner Cant be Started Up Possible Causes Discriminating Method (Air conditioner Status) Troubleshooting Confirm whether its due to power failure. If yes, No power supply, or poor After energization, operation indicator isnt bright wait for power recovery. - Page 63 Service Manual 4. ODU Fan Motor Cant Operate Possible causes Discriminating method (air conditioner status) Troubleshooting Connect wires according to wiring diagram to Wrong wire connection, or poor Check the wiring status according to circuit make sure all wiring terminals are connected connection diagram firmly...
-
Page 64: Exploded View And Parts List
Service Manual 10. Exploded View and Parts List 10.1 Indoor Unit The component picture is only for reference; please refer to the actual product. Installation and Maintenance... - Page 65 Service Manual Part Code Description CH-S18FTXE-NG CH-S18FTXQ-NG Product Code Decorative Strip 200003000064 Front Panel 20000300106 300001000081 Display Board 30565260 11122089 Filter Sub-Assy 11122089 20192662 Decorative Board (Left) 20192662 2002248401 Front Case 2002248401 1051276501 Guide Louver 1051276501 10542036 Axile Bush 10542036...
-
Page 66: Outdoor Unit
Service Manual 10.2 Outdoor Unit 22 23 24 25 26 The component picture is only for reference; please refer to the actual product. Installation and Maintenance... - Page 67 Service Manual Part Code Description GWH18AAD-K6DNA1B/O Product Code CB476W00600 Big Handle 2623343106 Supporting Board 01173194 Fan Motor 011002000529 Motor Support 1501308507 Condenser Assy 01703136 Coping 01253081 Rear Grill 01475014 Clapboard Sub-Assy 01233180 Compressor and Fittings 00103925G Compressor Gasket 76710287 4-Way Valve Assy 030152000158 Big Handle 2623343106...
-
Page 68: Removal Procedure
Service Manual 11. Removal Procedure Caution: discharge the refrigerant 11.1 Removal Procedure of Indoor Unit completely before removal. 1.Remove fifter assy Front panel Open the front panel. Push the left and rightfilters to make them break away from thegroove on the front case. Then remove the leftand right filters one by one. - Page 69 Service Manual 4.Remove electric box cover 2 Remove the screws on the electric box cover 2 and detecting plate(WIFI), then remove the electric box cover 2 and detecting plate(WIFI). Electric box cover2 Screw Note:The position of detection Detecting plate(WIFI) Electric box cover board(WIFI) may be different for different models.
- Page 70 Service Manual Step Procedure 7.Remove vertical louver Loosen the connection clasps between vertical louver and bottom case to remove vertion louver. Swing motor Screw off the screws that are locking the swing motor and take the motor off. 8.Remove electric box assy Loosen the connection clasps between shield cover of electric box sub-assy and electric box,and then remove the shield...
- Page 71 Service Manual Step Procedure Rotate the electric box assy. Twist off the screws Rotate the electric box assy. Twist offthe that are locking the wire clip and loosen the Screws screwsthat are locking the wire clip and power cord. Remove the wiring terminal of loosen the power cord.
- Page 72 Service Manual Step Procedure Adjust the position of conncetion pipe on evaporator up wards to remove it. 10.Remove motor and cross flow blade Remove the screws fixing motor clamp and then remove the motor clamp. ① Remove the screws at the connection place of cross flow blade and motor;...
-
Page 73: Removal Procedure Of Outdoor Unit
Service Manual 11.2 Removal Procedure of Outdoor Unit Warning: Be sure to wait for a minimum of 20 minutes after turning off all power supplies and discharge the refrigerant completely before removal. Steps Procedure 1. Before disassembly 2.Remove big handle big handle big handle and then remove the handle. - Page 74 Service Manual Installation and Maintenance...
- Page 75 Service Manual Installation and Maintenance...
- Page 76 Service Manual Installation and Maintenance...
-
Page 77: Appendix
Service Manual Appendix: Appendix 1: Reference Sheet of Celsius and Fahrenheit Conversion formula for Fahrenheit degree and Celsius degree: Tf=Tcx1.8+32 Set temperature Fahrenheit Fahrenheit Fahrenheit display Fahrenheit display Fahrenheit display Fahrenheit Celsius( Celsius( Celsius( temperature temperature temperature 60.8 69/70 69.8 78/79 78.8 62/63... -
Page 78: Appendix 3: Pipe Expanding Method
Service Manual Appendix 3: Pipe Expanding Method Pipe Note: Pipe cutter Improper pipe expanding is the main cause of refrigerant leakage.Please expand the pipe according to the following steps: Leaning Uneven Burr A:Cut the pip ● Confirm the pipe length according to the distance of indoor unit and outdoor unit. ●... -
Page 79: Appendix 4: List Of Resistance For Temperature Sensor
Service Manual Appendix 4: List of Resistance for Temperature Sensor Resistance Table of Ambient Temperature Sensor for Indoor and Outdoor (15K) Temp( C) Resistance(kΩ) Temp( C) Resistance(kΩ) Temp( Resistance(kΩ) Temp( Resistance(kΩ) 138.1 18.75 3.848 1.071 128.6 17.93 3.711 1.039 121.6 17.14 3.579 1.009... - Page 80 Service Manual Resistance Table of Tube Temperature Sensors for Outdoor and Indoor (20K) Temp( C) Resistance(kΩ) Temp( C) Resistance(kΩ) Temp( Resistance(kΩ) Temp( Resistance(kΩ) 181.4 25.01 5.13 1.427 171.4 23.9 4.948 1.386 162.1 22.85 4.773 1.346 153.3 21.85 4.605 1.307 20.9 4.443 1.269 137.2...
- Page 81 Service Manual Resistance Table of Discharge Temperature Sensor for Outdoor (50K) Temp( C) Resistance(kΩ) Temp( Resistance(kΩ) Temp( C) Resistance(kΩ) Temp( Resistance(kΩ) 853.5 18.34 4.75 799.8 93.42 17.65 4.61 89.07 16.99 4.47 703.8 84.95 16.36 4.33 660.8 81.05 15.75 4.20 620.8 77.35 15.17 4.08...
