Summary of Contents for Halsey Taylor Double Bubbler LF SCWT14CB Series

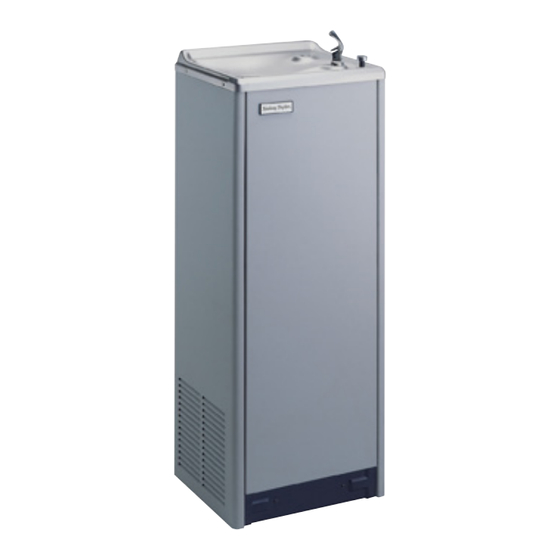

- Page 1 SCWT14ACBQ*1L Owners Manual SCWT14CB Series Barrier-Free Water Cooler...
- Page 2 SCWT14ACBQ*1L Note: Danger! Electric shock hazard. Disconnect power before servicing unit. USES HFC-134A REFRIGERANT 31 - SEE FIG. 5 1, 26 - SEE FIG. 4 2, 3 SEE FIG. 3 FIG. 1 1000002180 (Rev. C - 5/16) PAGE 2...
- Page 3 SCWT14ACBQ*1L...
- Page 4 SCWT14ACBQ*1L PUSH BUTTON VALVE ADJUSTMENT 1, 26 19, 23, 24 STREAM HEIGHT ADJUSTMENT SCREW ADJUST THIS SCREW TO ELIMINATE VALVE LEVER "FREE PLAY" OR CONTINUOUS FLOW FROM BUBBLER FIG. 3 PART OF ITEM 27 CORRECT STREAM HEIGHT FIG. 4 FIG. 5 1000002180 (Rev.
- Page 5 SCWT14ACBQ*1L Faucet Spout Chrome Cover Cover Set Screw Chrome Collar Handle Set Screw Faucet Spout Set Screw FIG. 6 Faucet Assembly Instructions 1. Place the faucet spout through the chrome cover with the smaller diameter end toward the faucet outlet. 2.
- Page 6 SCWT14ACBQ*1L ITEMIZED PARTS LIST ITEM PART NO. DESCRIPTION 98553C Kit - Bubbler/Gasket/Nipple 102639931640 Drain Plug 160270508640 Strainer Plate 28724C Basin 55880C Bracket-Regulator Mounting 98771C Kit - Evaporator/Drier/Cold Control 98773C Kit - Cold Control 36312C Compressor Serv. Pak FFII2HBX 98755C Kit - Elect (/Relay/Overload/Capacitor/Brkt.) 45897C Drain Tube 66252C...
