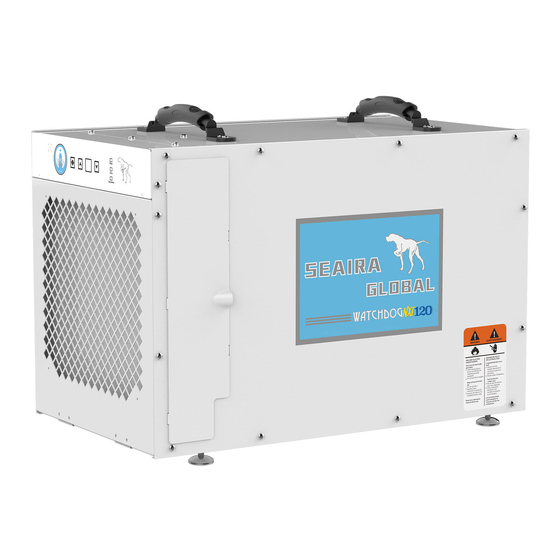

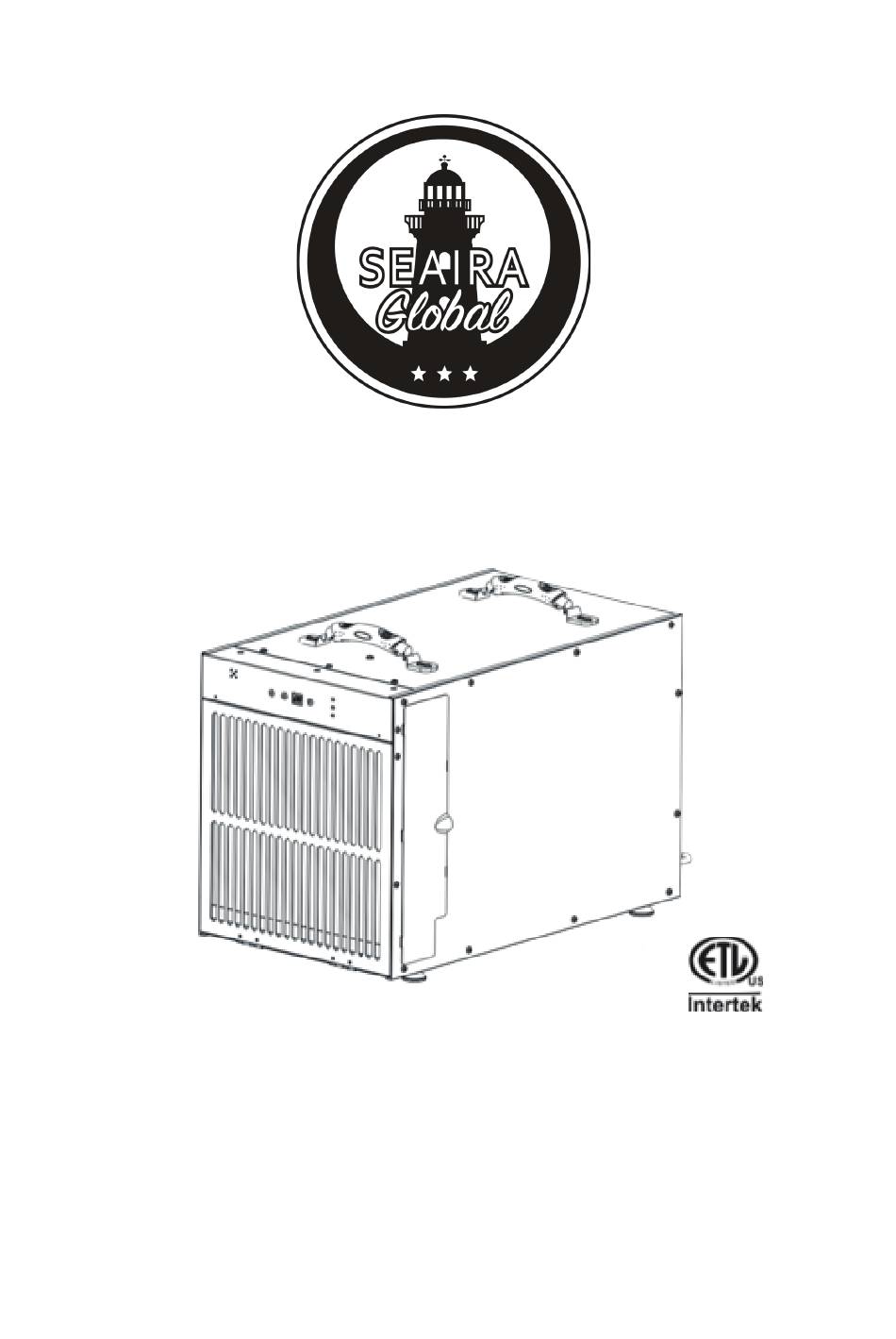

- Page 1 WatchDog NXT120 Installation and Operations Manual Seaira Global, LLC 14021 NC Highway 50 Surf City, NC 28445 (910) 660-0962...
-
Page 2: Table Of Contents
Table of Contents Important Notes Warranty Registration Specifications How it Works Installation Requirements Installation Key Functions Indicator Lights Remote Control Operating Instructions Unit Diagram Maintenance Dehumidifier Storage Ducted Applications Troubleshooting Spare Parts Warranty Information... -
Page 3: Important Notes
Model Number: Date Of Purchase: Serial Number: For additional questions concerning your dehumidifier, contact your local installer or call Seaira Global at (910) 660-0962. -
Page 4: Specifications
Specifications Capacity @ 80°F/60%RH: 120 Pints Per Day Airflow @ 0.0” SP: 300CFM Operating Temp. Range: 33-105°F Operating Relative Humidity Range: 36%-90% COP: 2.8 L/kWh Refrigerant: R410A Amperage Usage: 7.6 Amps Power Supply: 115V/60Hz/Single Phase Outlet Requirement: 15 Amp, 3 prong, GFCI Sound Level: 60 dBa Dimensions LxWxH: 23.75”... -
Page 5: Installation
Installation 1. Place dehumidifier on a level surface. • Do not place unit directly on vapor barrier. For example, use blocks or pavers to create a level surface. • If unit has been turned or flipped so that the compressor did not remain upright, place the unit on a level surface and wait a minimum of 2 hours before proceeding. - Page 6 2. Arrow Buttons • Use the up and down arrows to set the desired humidity setpoint on the display screen. • The setpoint can be any number between 36%-90%. When the indoor humidity is higher than the setpoint, the unit will operate. * Keep in mind that the displayed humidity levels are approximate ( +/-5%) 3.
-
Page 7: Indicator Lights
Indicator Lights 1. Humidity Display Screen • The display screen has two functions: 1. When the unit is powered on, it shows the humidity of the space 2. When setting the desired humidity level, the screen will show the set point. After a brief delay, it will revert to current humidity of the space. -
Page 8: Remote Control
Celsius. Press this button once to switch to Fahrenheit. 5. Continuous Press this button to switch the unit into continuous mode. “CONT.” will appear on the display screen. 6. Drain Pump This button is not applicable for WatchDog NXT120 models. -
Page 9: Operating Instructions
Operating Instructions 1. Start the machine • Press the power key to turn the dehumidifier on. 2. Adjust the settings • Use the up and down arrow keys to adjust your desired setpoint (typically 50-55%) 3. Stop the machine • Press the power button again and the dehumidifier will stop. Note that the fan will continue to operate for 1 minute after the unit has shut off. -
Page 10: Unit Diagram
Unit Diagram Maintenance **For more detailed instructions, visit www.SeairaGlobal.com** WARNING: Always unplug the unit before doing any maintenance. Cleaning the Machine Body • Use a soft, damp cloth to clean the exterior of unit. Do not use any soap or solvents Coil Maintenance •... - Page 11 Cleaning the Filter 1. Unplug the unit. 2. For PreFilter: a. Remove prefilter from inlet of machine. b. Vacuum or wash with warm water (no soap). 3. For MERV-10/HEPA/Carbon Filters: a. Replace as necessary- we recommend checking the filter at least 1x/year Electrical Access •...
-
Page 12: Dehumidifier Storage
Dehumidifier Storage If the unit will be stored for an extended period of time, complete the following steps: 1. Turn off the unit and allow it to dry. 2. Wrap and secure the power cord. 3. Cover the filter mesh. 4. -
Page 13: Troubleshooting
Troubleshooting... -
Page 14: Spare Parts
Spare Parts... -
Page 15: Warranty Information
4. If shipped, customer is responsible for all risk of loss or damage. Warranty Procedure: 1. Customer must mail in warranty registration card to Seaira Global. If no card is submitted, warranty period will begin the day the shipment left the warehouse. Please be sure to record serial # and date of installation in the spaces provided on page 2 of the manual. - Page 16 FOREGOING AS THE SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OR ALLEGED BREACH OF WARRANTY BY SELLER. ANY DISHONESTY OR FRAUD IN CONNECTION WITH SEAIRA GLOBAL WARRANTY THOROUGHLY VOIDS ALL WARRANTY POLICIES. SEAIRA GLOBAL EXPRESSLY RESERVES THE RIGHT TO PURSUE LEGAL ACTION IN THE EVENT OF DISHONESTY, FRAUD,...
