Summary of Contents for Seaira Global WATCHDOG550

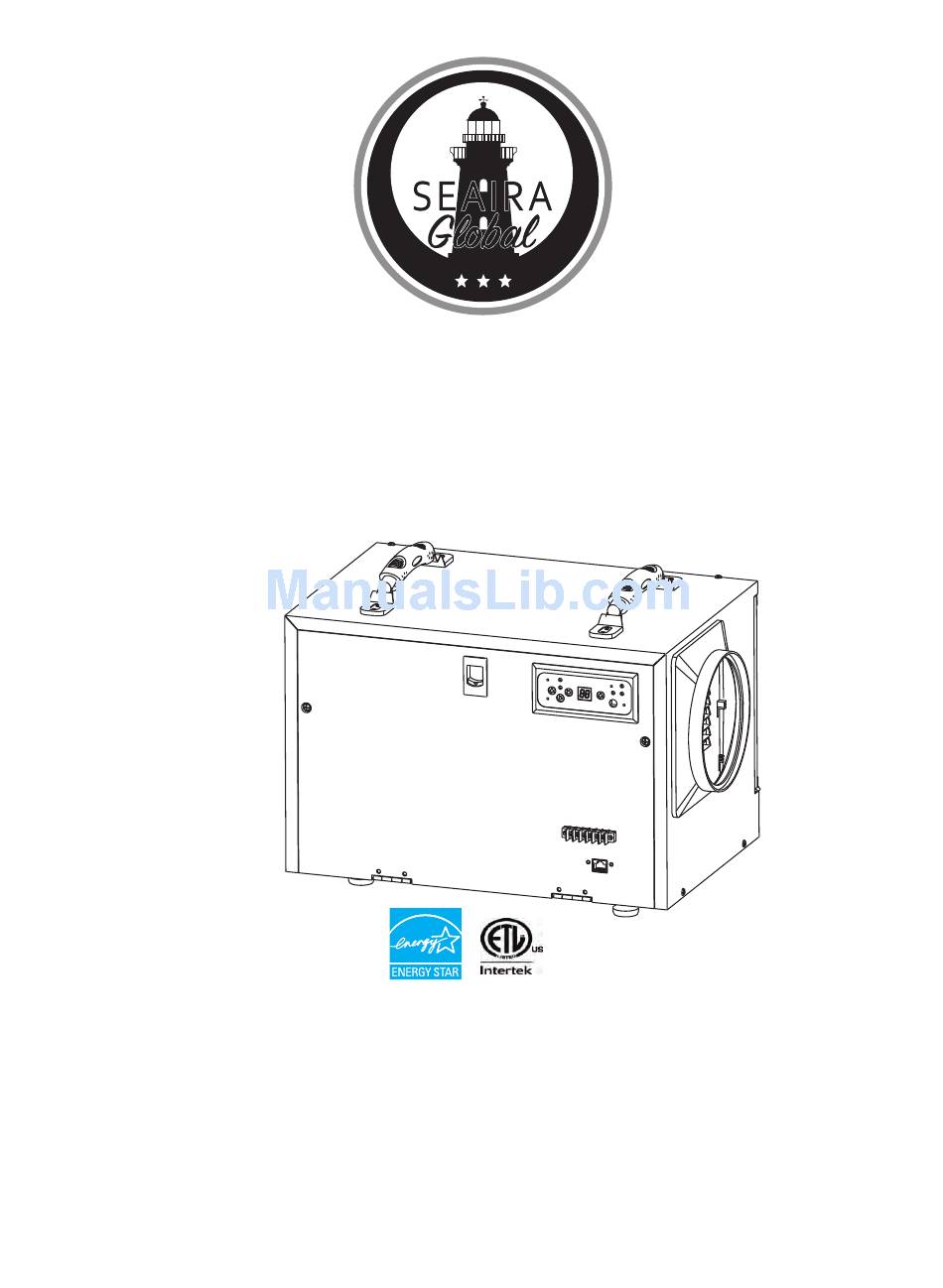

- Page 1 WatchDog550 Installation & Operations Manual Seaira Global, LLC 14021 NC Hwy 50, Surf City,NC, 28445 Phone:(910) 660-0962...
-
Page 2: Table Of Contents
Table of Contents Warranty Registration Safety Notes Electrical Supply Principle of Operation Installation Key Functions Indicator Lights Remote Control Operating Instructions Diagram Maintenance Ducted Applications Troubleshooting Spare Parts Warranty Information... -
Page 3: Warranty Registration
Warranty Registration Congratulations on purchasing a new Watchdog Dehumidifier. Your new dehumidifier comes with an extensive warranty plan. To register, simply fill out and return the warranty form provided in the dehumidfier box. Be sure to note your dehumidifier serial number as you will need it for registration. Safety Notes The Watchdog Series Dehumidifier must always be connected using a grounded electrical connection (as required for all electrical appliances). -
Page 4: Electrical Supply
Serial Number: Date of Purchase: For additional questions concerning your dehumidifier, the following options are available: Contact your installing contractor Call Seaira Global @ 910-660-0962 Electrical Supply Power Supply: 115 V, 60 Hz AC, Single Phase Outlet Requirement: 3-Prong, GFI... -
Page 5: Key Functions
If the unit is handled in such a manner that the compressor did not remain in the upright postion, NOTE: Watchdog550 Dehumidifiers can’t sit directly on floor unless the unit is feeding directly into a sump pump next to it. Elevation is required to allow gravity flow of condensate water drain. -
Page 6: Indicator Lights
will hear one beep as the machine shuts down. Note that there is a one minute fan delay on shut - down. 11.2. Arrow Buttons Use the up and down arrow buttons to set the desired humidity setpoint on the display screen. The setpoint can be any number between 36-90%. -
Page 7: Remote Control
4. Remote Indicator Light When the remote indicator light is green, it illustrates the unit is in remote mode. While in remote mode, the dehumidifier will use the sensor on the remote control unit. In this mode, the inlet and outlet of the dehumidifier can be ducted. If the light is off, the unit sensor is being used. -
Page 8: Operating Instructions
If you want to move or store your machine, wait at least 10 minutes to allow the machine to completely defost, then lean unit gently towards drain to ensure that it is completely drained. Watchdog550 Diagram Front View Drain Connect A5/A6 Aux. -
Page 9: Maintenance
Back View MERV 8 Filter Maintenance WARNING: Always unplug the unit before doing any maintenance. Cleaning the machine body Use a soft damp cloth to clean exterior of unit. Do not use any soap or solvents. Unplug the unit. 3. Clean the filter mesh by vacuuming or washing with warm water (no soap or solvents). -
Page 10: Ducted Applications
If the unit will be stored for an extended period of time, complete the following steps: 1. Turn o the unit and allow to dry 2. Wrap and secure the power cord. 3. Cover the filter mesh. 4. Store in a clean, dry space. Ducted Applications sure to secure the ducting with tie wrap. -
Page 11: Troubleshooting
Flex Duct Installation Flex Duct Removal Rotate flex duct clockwise. clockwise Troubleshooting Symptom Cause Solution Power Supply Verify that there is power to the outlet and that the plug is properly installed in outlet The unit is outside the operating (Display temperature range. -
Page 12: Spare Parts
W -104 Duct Collar Assembly Fan Components Fan Components WatchDog 550 Duct W -110 Kit Assembly (Includes W - 600 WatchDog550 Fan Motor W-104 and W-100) Watchdog550 Complete W - 601 Fan Assembly W -125 W -602 Fan Capacitor Display/Control Board... -
Page 13: Warranty Information
WARRANTY PROCEDURE: 1. Customer must mail in warranty registration card (on page 13) to Seaira Global. If no card is submitted, warranty period will begin the day the shipment left the Seaira warehouse. Please be sure to record serial # and date of installation in the spaces provided on page 2 of the manual. - Page 14 OR IMPLIED, IN LAW OR IN FACT, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. SEAIRA GLOBAL’S TOTAL LIABILITY, REGARDLESS OF NATURE OF CLAIM SHALL NOT EXCEED ORIGINAL PURCHASE PRICE OF THE PRODUCT. IF A PRODUCT OR COMPONENT IS REPLACED WHILE UNDER WARRANTY, THE APPLICABLE WARRANTY PERIOD SHALL NOT BE EXTENDED BEYOND THE ORIGINAL WARRANTY TIME PERIOD.
