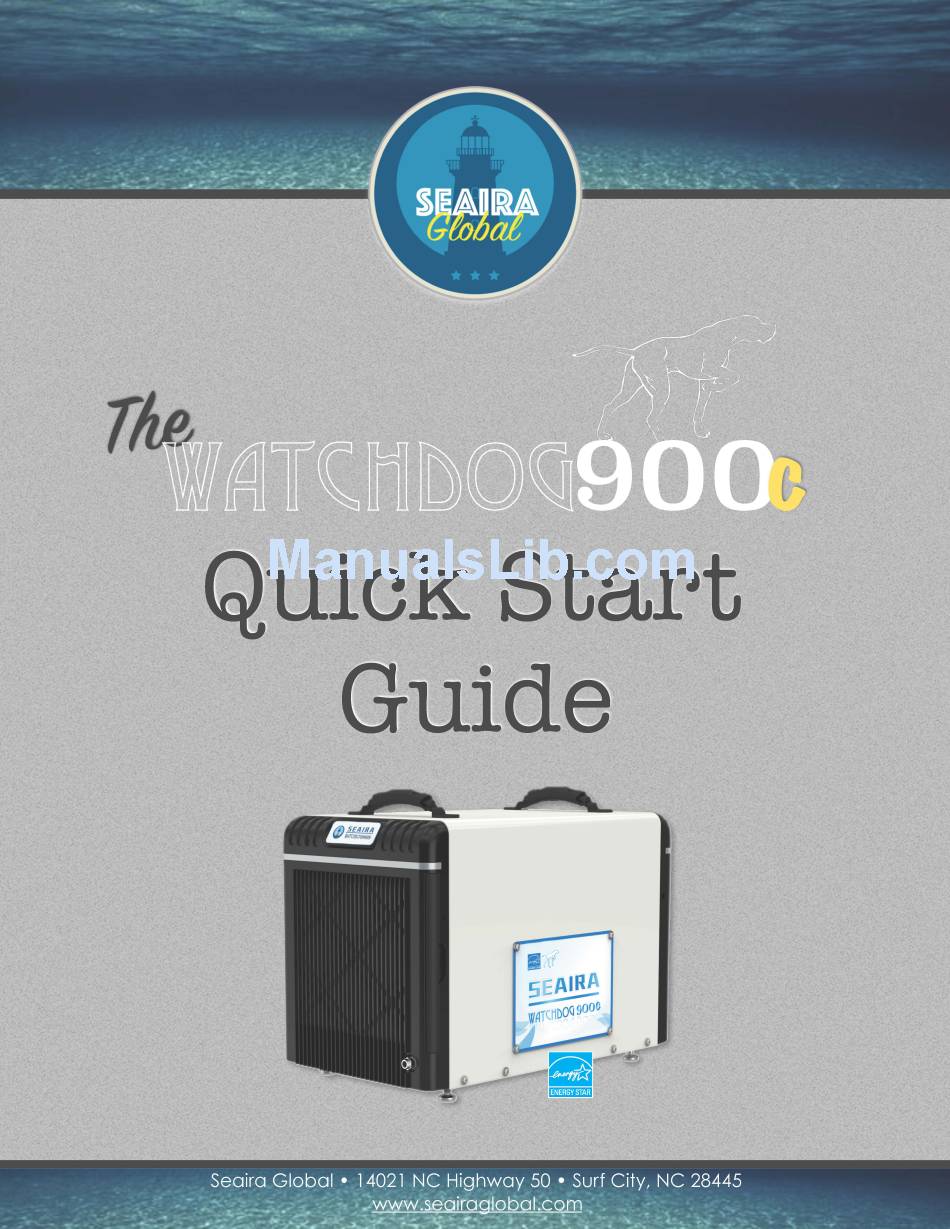

Seaira Global WatchDog 900c Quick Start Manual
Hide thumbs
Also See for WatchDog 900c:
- Installation and operation manual (15 pages) ,
- Cleaning manual (5 pages) ,
- Replacing (4 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Seaira Global WatchDog 900c
Summary of Contents for Seaira Global WatchDog 900c
- Page 2 WatchDog 900c Quick Start Guide • Prepare Crawl Space for Installation • Tips for Dehumidifier Installation • Operating Instructions • Benefits of a Dehumidifier • Common Terms • Parts Diagram • Trouble Shooting • Submit Warranty • Additional Resources While you’re waiting for your new dehumidifier to arrive, here are a few topics to keep in mind.
- Page 3 1. First, you will need clean out any debris that may be cluttering up the crawl space. This will make sure that there are no hidden problems such as cracks in the foundation. It will also ensure that the vapor barrier can be installed properly. In addition, cleaning out any unnecessary items will make it much easier to move around in the crawl space.
- Page 4 Tips for Dehumidifier Installation To help make dehumidifier installation hassle free, here are a few tips to keep in mind. 1. As we discussed earlier, it’s important to prep your crawl space prior to installation. It’s much easier to fix the problems now rather than let them get worse. If you need a refresher, refer back to the crawl space prep section.
- Page 5 4. Now that you have the base set up, you can finally add the machine. Carefully bring in the dehumidifier and set it on top of the base. Make sure that the dehumidifier is level before proceeding. 5. After the dehumidifier is level, you need to direct the exhaust outlet into the desired location. Typically, you will want to choose the longest, unobstructed dimension in the crawl space.
-
Page 6: Turning The Unit On/Off
Operating Instructions Turning the Unit On/Off • To turn the dehumidifier on, press the power button. You will hear one beep as the machine starts to run. In addition, the light will illuminate red. • Once running, the power light will illuminate red. •... -
Page 7: Adjusting The Settings
Adjusting the Settings Humidity Level • To adjust the humidity level, use the up arrow and the down arrow buttons until the desired level is displayed on your screen. The dehumidifier can be set anywhere between 35%-90%. The typical set point is between 50% and 55% humidity. •... - Page 8 Benefits of a Dehumidifier Now that you’ve purchased a dehumidifier, you will be able to eliminate many of the problems that have been plaguing your home. Here are just a few benefits that you can look forward to: • Pleasant Air Quality Although your dehumidifier will be located in the crawl space, it will affect the air quality in your entire home.
-
Page 9: Useful Terms
• Deter Pests Excess moisture and humidity is also very enticing to pests and bugs since they need moisture to survive. So, for instance, if there are puddles on the ground or moisture in the sub-flooring, your home will attract all sorts of pests from termites to cockroaches. By installing your dehumidifier, you can dry out the environment and discourage them in the future. - Page 10 The inlet protects the evaporator coil from dirt and debris as the air is being pulled into the dehumidifier to be conditioned. All Seaira Global dehumidifiers have a filter that protects the coils. The Watchdog 900 and 900c come standard with a washable prefilter. The Watchdog 550 comes standard with a Merv8 filter, which is also available for the Watchdog 900 series.
- Page 11 The Watchdog 900c has 20 feet of drain line to move the water away from the dehumidifier using the condensate pump.
- Page 12 Watchdog 900c Parts Diagram...
-
Page 13: Troubleshooting
Troubleshooting Issue Potential Cause Solution Dehumidifier Will Not Power On Power Supply • Make the unit is properly plugged in and that the outlet is functional t Low Air Flow Room Temperature is outside of • Modify the room conditions so operational range (over 105°F= the temperature is within Display HI or below 33°F =... -
Page 14: Additional Resources
4. Replace the hoses and/or pump, if maintenance alone is not sufficient. Activating Your Warranty Once you have your dehumidifier installed, it’s time to activate your warranty. All Seaira Global dehumidifiers include a 1 year warranty on all parts plus a 5 year warranty on the parts in the refrigeration circuit (for complete details, check your owner’s manual).
