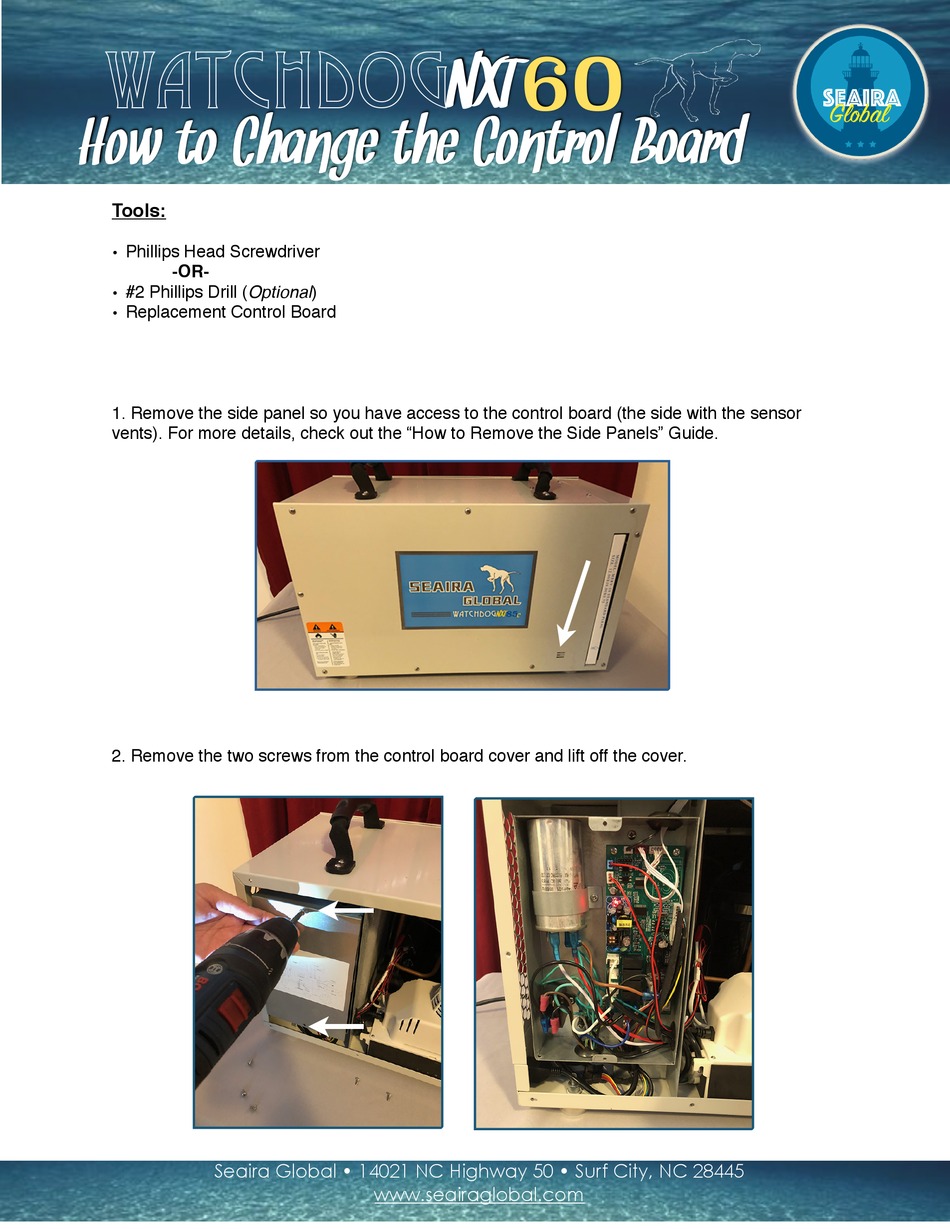

WatchDog NXT

How to Change the Control Board

Tools:

• Phillips Head Screwdriver

-OR-

• #2 Phillips Drill (Optional)

• Replacement Control Board

1. Remove the side panel so you have access to the control board (the side with the sensor

vents). For more details, check out the "How to Remove the Side Panels" Guide.

2. Remove the two screws from the control board cover and lift off the cover.

Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445

www.seairaglobal.com

Table of Contents

Do you have a question about the WATCHDOG NXT60 and is the answer not in the manual?

Page 1 For more details, check out the “How to Remove the Side Panels” Guide. 2. Remove the two screws from the control board cover and lift off the cover. Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445 www.seairaglobal.com...
Page 2 3. At this point you will need to unplug the wires from the control board. 4. Next, use a screwdriver to remove the 4 screws holding the control board in place (one in each corner). Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445 www.seairaglobal.com...
Page 3 5. Finally, lift the control board out and set aside. Insert the replacement control board. Reverse the process to install the board- insert the screws, rewire, and replace control board cover. Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445 www.seairaglobal.com...
