Installation and Operations Manual
USING THE ENERGY STAR MARKS CORRECTLY
A BRIEF INTRODUCTION TO THE MARK GUIDELINES
.
WatchDog 900C
KEY GUIDELINES
Seaira Global, LLC
Neither the marks nor the ENERGY STAR name may
be used in any other organization name, product
name, service name, domain name, or Web site title.
14021 NC Hwy 50 Surf City, NC 28445
The marks may never be associated with products,
homes, or buildings that do not qualify as
Phone:(910) 660-0962
ENERGY STAR.
The marks may not be altered, cut apart, separated,
or otherwise distorted in perspective or appearance.
This includes removing the words ENERGY STAR
from the mark.
If your organization is not an ENERGY STAR partner,
but offers ENERGY STAR certi ed products, you
ENERGY STAR mark.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seaira Global WatchDog 900C
Summary of Contents for Seaira Global WatchDog 900C

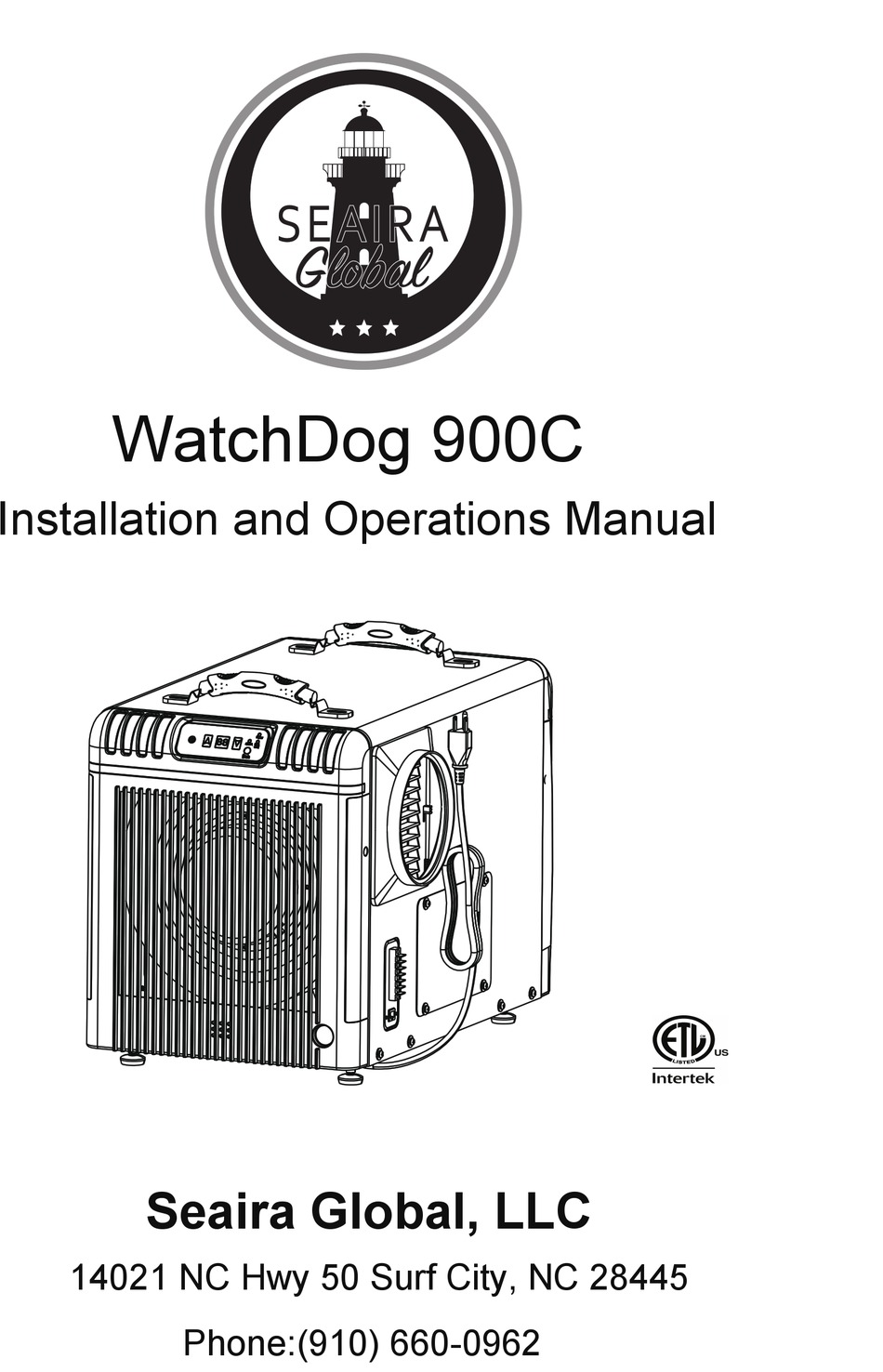

- Page 1 WatchDog 900C Installation and Operations Manual USING THE ENERGY STAR MARKS CORRECTLY A BRIEF INTRODUCTION TO THE MARK GUIDELINES The purpose of this document is to provide clarification KEY GUIDELINES about how the ENERGY STAR marks and ENERGY STAR Seaira Global, LLC name should be used in all mediums.
-
Page 2: Table Of Contents
Table of Contents Warranty Registration Safety Notes Electrical Supply Principle of Operation Installation Key Functions Indicator Lights Remote Control Operating Instructions Diagram Maintenance Ducted Applications Troubleshooting Spare Parts Warranty Information... -
Page 3: Warranty Registration
Warranty Registration Congratulations on purchasing a new Watchdog Dehumidifier. Your new dehumidifier comes with an extensive warranty plan. To register, simply fill out and return the warranty form provided in your dehumidifier box. Be sure to note your dehumidifier serial number as you will need it for registration. Safety Notes The Watchdog Series Dehumidifier must always be connected using a grounded electrical connection (as required for all electrical appliances). -
Page 4: Electrical Supply
This is extremely helpful if you need to seek assistance in the future. The data label on the side of your unit has the key characteristics of your specific unit. Model Number: Seaira Watchdog 900C Serial Number: Date of Purchase:... -
Page 5: Key Functions
36%. 4. Central Control • This mode is not applicable on the WatchDog 900c. 5. Manual Drain Button • For extended storage or movement of the machine, press the “Drain” button to remove water from... -
Page 6: Indicator Lights
6. Pump Trouble Warning When the pump reservoir water level is too high, the high water sensor will activate to prevent over- flow. When this occurs, the dehumidifier will stop the compressor automatically and the display will show “E4”. After a 1 minute delay, the fan motor will turn off and the machine will not operate until the problem is resolved. -
Page 7: Remote Control
Remote Control Instructions Watchdog Dehumidifiers can be controlled using an optional remote accessory.The Watchdog Remote Control connects to your Watchdog Series Dehumidifier via a 25’ CAT 5 cable. The remote control contains an integrated sensor which gives you multiple options for remotely controlling your unit, in addition to monitoring the conditions surrounding the dehumidifier. -
Page 8: Diagram
The Watchdog 900C has both automatic and manual draining. During normal operation, the Watchdog 900C will automatically drain as required. If you would like to store or move the machine, you may press the drain button to drain the water from the pump reservoir. The drain will operate for 15 seconds each time the button is pushed. -
Page 9: Maintenance
Always unplug the unit before doing any maintenance. Condensate Pump Your Watchdog 900C is equipped with an integral condensate pump designed to pump water from your dehumidifier out to the desired drain. This pump requires routine maintenance that is not covered by your 1 year parts warranty. -
Page 10: Ducted Applications
Cleaning/Disinfecting the Pump Basic Cleaning (Complete about once a year, depending on environment) 1. Open the end cap on the filter side of the unit. Press the drain button to drain the resevoir. 3. Mix a 16 oz solution of either (1 oz bleach + 15 oz water) OR (4 oz white vinegar + 12 oz water). 4. - Page 11 Be sure to secure the ducting with tie wrap. Also, keep in mind, that the supply ducting can be screwed into an adapter if necessary. Ducting Installation 1. Remove inlet grille from end cap 2. Connect duct to inlet grille 3.
-
Page 12: Troubleshooting
Troubleshooting Symptom Cause Solution Power Supply Verify that there is power to the outlet and that the plug is properly installed in outlet (Display The unit is outside the operating temperature (Display LO) range. Modify the room conditions so the operation will commence. -
Page 13: Spare Parts
Watchdog 900c Spare Parts WatchDog 900- Parts Part # Description W-900 Fan Motor W-901 Complete Fan Assembly W-902 Fan Capacitor W-903 Compressor W-904 Compressor Capacitor W-905 Coil Assembly W-906 Hot Gas Bypass Coil W-907 Condensate Pump Assembly W-908 RH/Temperature Sensor Cable... -
Page 14: Warranty Information
WARRANTY PROCEDURE: 1. Customer must mail in warranty registration card (on page 13) to Seaira Global. If no card is submitted, warranty period will begin the day the shipment left the Seaira warehouse. Please be sure to record serial # and date of installation in the spaces provided on page 2 of the manual. - Page 15 OR ALLEGED BREACH OF WARRANTY BY SELLER. ANY DISHONESTY OR FRAUD IN CONNECTION WITH SEAIRA GLOBAL WARRANTY THOROUGHLY VOIDS ALL WARRANTY POLICIES. SEAIRA GLOBAL EXPRESSLY RESERVES THE RIGHT TO PURSUE LEGAL ACTION IN THE EVENT OF DISHONESTY, FRAUD, OR ATTEMPTED FRAUD.
