- Page 1 INSTALLATION GUIDE OCULAR IQ COMMERCIAL IOCAW05C-7S/7T / IOCAW05C-22S/22T ocularcharging.com.au sales@ocularcharging.com.au 1300 912 650...
-
Page 2: Table Of Contents
CONTENTS Specifications Features Product Overview Safety Instructions Installation Tools Required Overview of Steps Step One - Check Box Contents Step Two - Concrete Anchoring Step Three - Power Cable Wiring Step Four - Internet Connection Step Five - Verify The Installation Step Six - Secure Cover LCD Display Details Troubleshooting... -
Page 3: Specifications
SPECIFICATIONS Model IOCAW05C-7S/7T IOCAW05C-22S/22T 230V AC single-phase: 400V AC three-phase: Voltage and Wiring LIVE, NEUTRAL, and EARTH. L1, L2, L3, NEUTRAL, and EARTH. Current and Power Maximum 32A and 7kW Maximum 32A and 22kW Frequency 50-60 Hz Internal RCD RCD Type-B Data Protocol OCPP 1.6J IEC62196 Type-2 socket or 5m type-2 cable... -
Page 4: Features

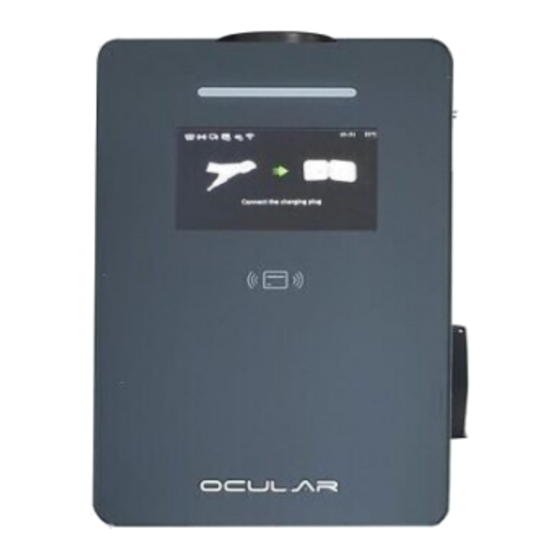

LCD Screen & RFID Reader The Ocular IQ Commercial is equipped with a 7 inch LCD screen allowing users to know the status of the charger. Details about the LCD screen can be found on pages 10 – 12. -
Page 5: Safety Instructions
SAFETY INSTRUCTION WARNING! Do not install or use the charger near flammable, explosive, harsh, or combustible materials, chemicals, or vapors. Turn off input power at the circuit breaker before installing or maintaining. Do not use or stop using the charger if it is defective, appears cracked, frayed, broken or other- wise damaged, or fails to operate. -
Page 6: Installation
Verify the installation. Secure cover and power up. Step 01 Check Box Contents If any components are damaged or missing, please contact your installer or Ocular charging. EV Charger RCD Box Key x 1 Screw M6*10 x 2 Wall Mounting Bracket x 1... - Page 7 INSTALLATION Step 02 Wall Mounting Mount the backplate to the wall. Fix 2 x M6*10 screws to the back of the EV Charger and hang on the backplate. Fix the EV charger to the backplate with M6*12 screw. Step 03 Power Cable Wiring Connect the power wires to the terminal Cross the power wires through...
-
Page 8: Step Four - Internet Connection
INSTALLATION Step 04 - Internet Connection Option 01. Cellular & Ethernet Item Insert SIM card to the card slot for cellular connection. Connect the internet cable for Ethernet connection. Option 02. Wi-Fi a) Connect your device to the charger Wi-Fi SSID ‘ioc-XXXXXX’, and enter default password ‘IOC12345’. -
Page 9: Step Five - Verify The Installation
INSTALLATION Step 05 - Verify The Installation Steps Verify the power cables are wired properly. Close the RCD to power on the charger unit, and you should see the LED lights sequentially illuminate green. If the LED red light illuminates or flashes, refer to the Troubleshooting table on page 11. - Page 10 LCD DISPLAY SCREEN Scan the QR code or swipe Welcome Screen Connect the charging plug the RFID card to start charging Charging in process Suspended by EV Suspended by EVSE Remove the charging plug Automatic upgrade Software downloading and mode activated upgrading automatically Network upgrade mode Micro SD card...
-
Page 11: Troubleshooting
Ocular Charging. MAINTENANCE & REPAIR • Regularly inspect the Charger. If damage is found, contact your installer or Ocular Charging. • The Charger contains no user-serviceable components. If unit is not operating correctly, contact your installer or Ocular Charging. - Page 12 CHARGE WITH VISION...
