Summary of Contents for Challenge Xtreme PFS200F

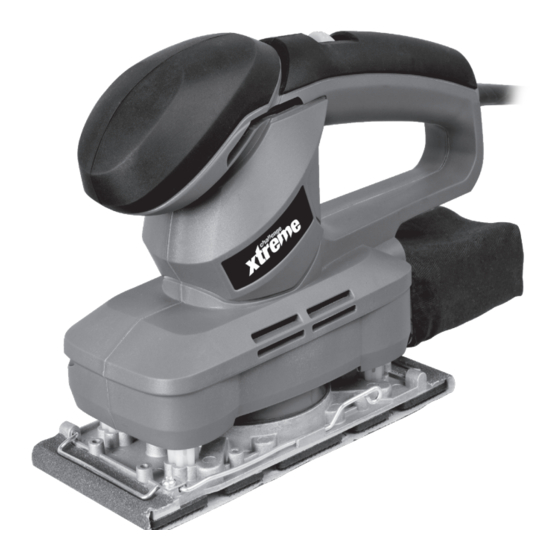

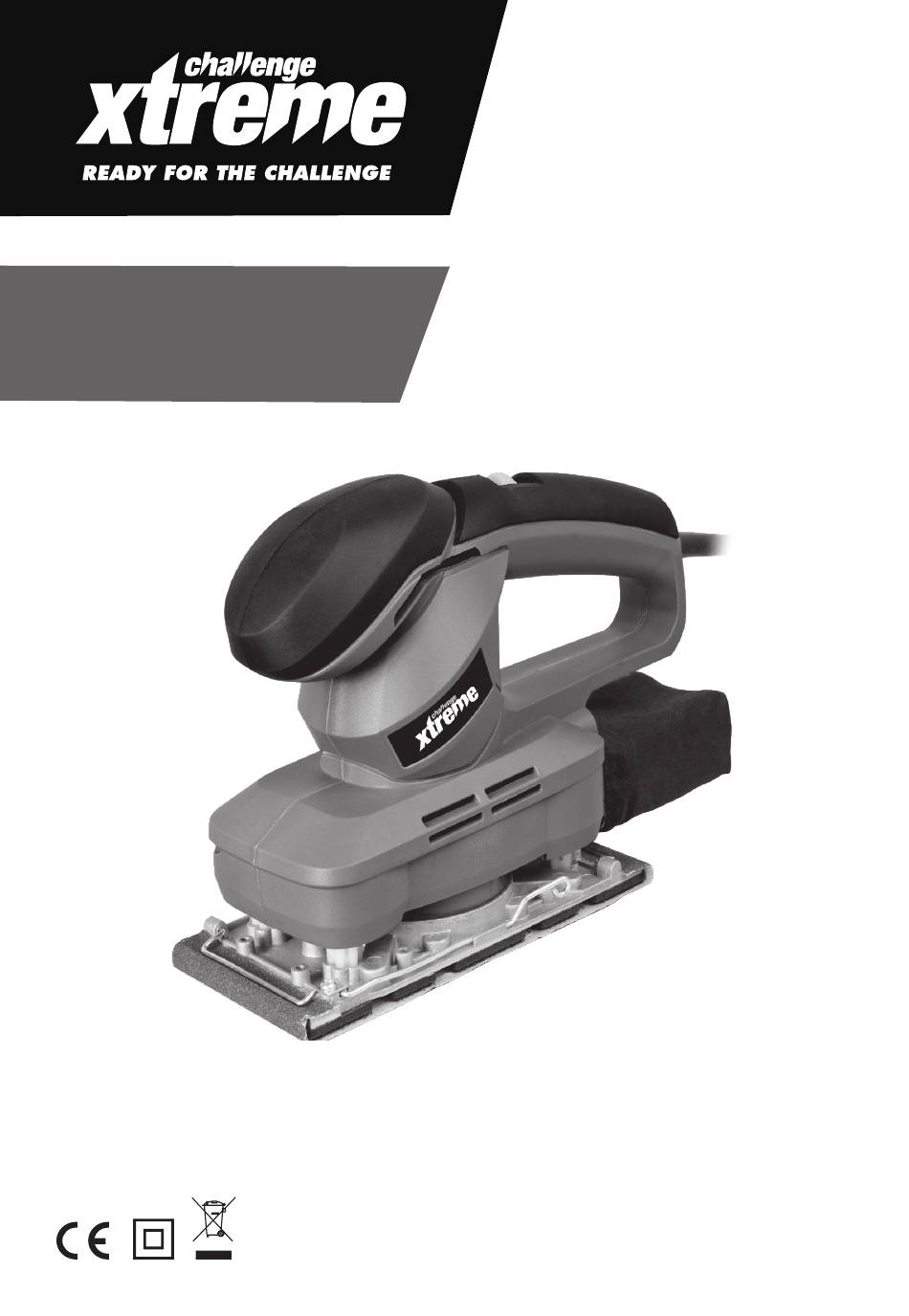

- Page 1 200W SheeT SANdeR PFS200F ORIGINAL INSTRUCTIONS...
-
Page 2: General Power Tool
OrIgINaL INstructIONs gENEraL POWEr tOOL location is unavoidable, use a residual current device (rcD) protected supply. Use saFEtY WarNINgs of an RCD reduces the risk of electric shock. WarNINg: read all safety warnings and all instructions. Failure to follow the 3) PErsONaL saFEtY warnings and instructions may result in electric a) stay alert, watch what you are doing and... -
Page 3: Additional Safety Rules
OrIgINaL INstructIONs dangerous and must be repaired. provided, no others. c) Disconnect the plug from the power source 7) If the replacement of the supply cord is and/or the battery pack from the power tool necessary, this has to be done by the before making any adjustments, changing manufacturer or his agent in order to avoid a accessories, or storing power tools. - Page 4 OrIgINaL INstructIONs sYMBOLs To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear eye protection Wear ear protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice HELPLINE NO 08448012949...
- Page 5 OrIgINaL INstructIONs HELPLINE NO 08448012949...
-
Page 6: Component List
OrIgINaL INstructIONs cOMPONENt LIst 1 On/off switch 2 Hand grip area 3 Dust collecting bag 4 Sanding paper retaining clip 5 Sanding base plate 6 Vacuum adapter Not all the accessories illustrated or described are included in standard delivery. accEssOrIEs Dust bag 80 grit sanding paper 100 grit sanding paper... -
Page 7: Noise Information
OrIgINaL INstructIONs tEcHNIcaL Data Type PFs200F (PFs-designation of machinery, representative of Finishing sander) Voltage 230-240V~50Hz Rated power 200W No load speed 12000/min Base size 90*187mm Protection class Machine Weight 1.6kg NOIsE INFOrMatION A weighted sound pressure :78dB(A) A weighted sound power :89dB(A) &K... -
Page 8: Intended Use
Fig. A OrIgINaL INstructIONs OPEratINg INstructIONs NOtE: Before using the tool, read the instruction book carefully. INtENDED usE The machine is intended for dry sanding of wood, Fig. A plastic, filler and coated surfaces. 1. a)FIttINg tHE saNDINg PaPEr (see Fig. Fig. -
Page 9: Operating The On/Off Switch
Fig. D OrIgINaL INstructIONs 4. Dust EXtractION aDaPtEr (see Fig. H) Your sander is equipped with a dust extraction adapter, which is designed for collect dust task. Insert the dust adapter into the rear dust outlet of Fig. D sander. Then pull the dust adapter and make sure it is tightened securely on the dust outlet. -
Page 10: Maintenance
OrIgINaL INstructIONs PLug rEPLacEMENt 60 grade) and change to a higher, finer grade (i.e. 100 or 120) for finishing. If you use a fine (uK & IrELaND ONLY) grade for rough surfaces it will soon clog and If you need to replace the fitted plug then follow need changing. -
Page 11: Environmental Protection
OrIgINaL INstructIONs ENvIrONMENtaL PrOtEctION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. If faults can not be remedied, contact the Helpline on 08448012949 guaraNtEE This product is selected for DOMESTIC USE ONLY and not for business use.
