Summary of Contents for Challenge Xtreme PBP180

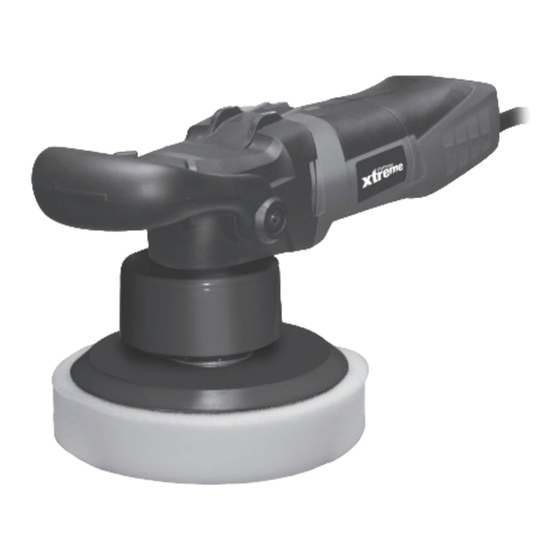

- Page 1 600W DUAL ACTION CAR POLISHER PBP180 ORIGINAL INSTRUCTIONS...
-
Page 2: General Power Tool Safety Warnings
ORIGINAL INSTRUCTIONS GENERAL POWER TOOL 3. PERSONAL SAFETY a) Stay alert, watch what you are doing and SAFETY WARNINGS use common sense when operating a power WARNING! Read all safety warnings tool. Do not use a power tool while you are and all instructions. - Page 3 ORIGINAL INSTRUCTIONS with the power tool or these instructions SYMBOLS to operate the power tool. Power tools are dangerous in the hands of untrained users. To reduce the risk of injury, user e) Maintain power tools. Check for must read instruction manual misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
-
Page 4: Component List
ORIGINAL INSTRUCTIONS COMPONENT LIST 1. Front Handle 2. On/Off Switch 3. Variable Speed Switch 4. Sanding Pad 5. Foam Disc HELPLINE NO 03448012949... -
Page 5: Technical Data
ORIGINAL INSTRUCTIONS TECHNICAL DATA Type Designation: PBP180 (PBP-designation of machinery, representative of polisher) Rated voltage: 230-240V~50Hz Rated input power: 600W No-load speed: 1500-6800/min Max. pad diameter: 180mm Protection class: Weight: 2.46kg NOISE AND VIBRATION DATA A weighted sound pressure 80dB(A) - Page 6 ORIGINAL INSTRUCTIONS Avoid using tools in temperatures of 10 C or less. Plan your work schedule to spread any high vibration tool use across a number of days. ACCESSORIES Spanner Sanding pad Foam disc We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name.
- Page 7 ORIGINAL INSTRUCTIONS OPERATION INSTRUCTIONS 2. FITTING THE SANDING PAPER (NOT Fig. A2 SUPPLIED) OR FOAM PAD (See Fig. NOTE: Before using the tool, read the B1,B2) instruction book carefully. 1. ASSEMBLING OR CHANGING THE SANDING PAD (See Fig.A1-A2) WARNING!Disconnecet polisher from power source.
- Page 8 Fig. B2 ORIGINAL INSTRUCTIONS Fig. C 6. VARIABLE SPEED SWITCH (See FIG.F) Fig. B2 Fig. D The speed increases as you turn the Variable Speed Switch(3) towards the higher number and decreases on the lower number. Thumbwheel position 1 provides the slowest operating speed and position 6 the fastest.
-
Page 9: Troubleshooting
ORIGINAL INSTRUCTIONS 8. FINAL WORK (See Fig. H) parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe Use long, sweeping strokes in a criss-cross Fig. G clean with a dry cloth. Always store your power pattern to bring out the shine. -
Page 10: Plug Replacement (Uk & Ireland Only)
ORIGINAL INSTRUCTIONS PLUG REPLACEMENT (UK & IRELAND ONLY) Your power tool is supplied with a fitted plug, however if you need to fit a new plug follow the instruction below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue = Neutral Brown = Live As the colors of the wires in the mains lead of this... - Page 11 ORIGINAL INSTRUCTIONS If faults can not be remedied, contact the Helpline on 03448012949 GUARANTEE This product is selected for DOMESTIC USE ONLY and not for business use. This product is guaranteed against manufacturing defects for a period of 12 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations, or has been the subject of commercial use.
