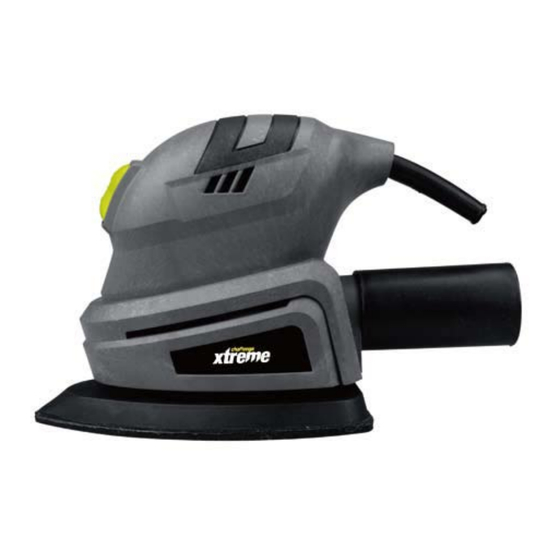

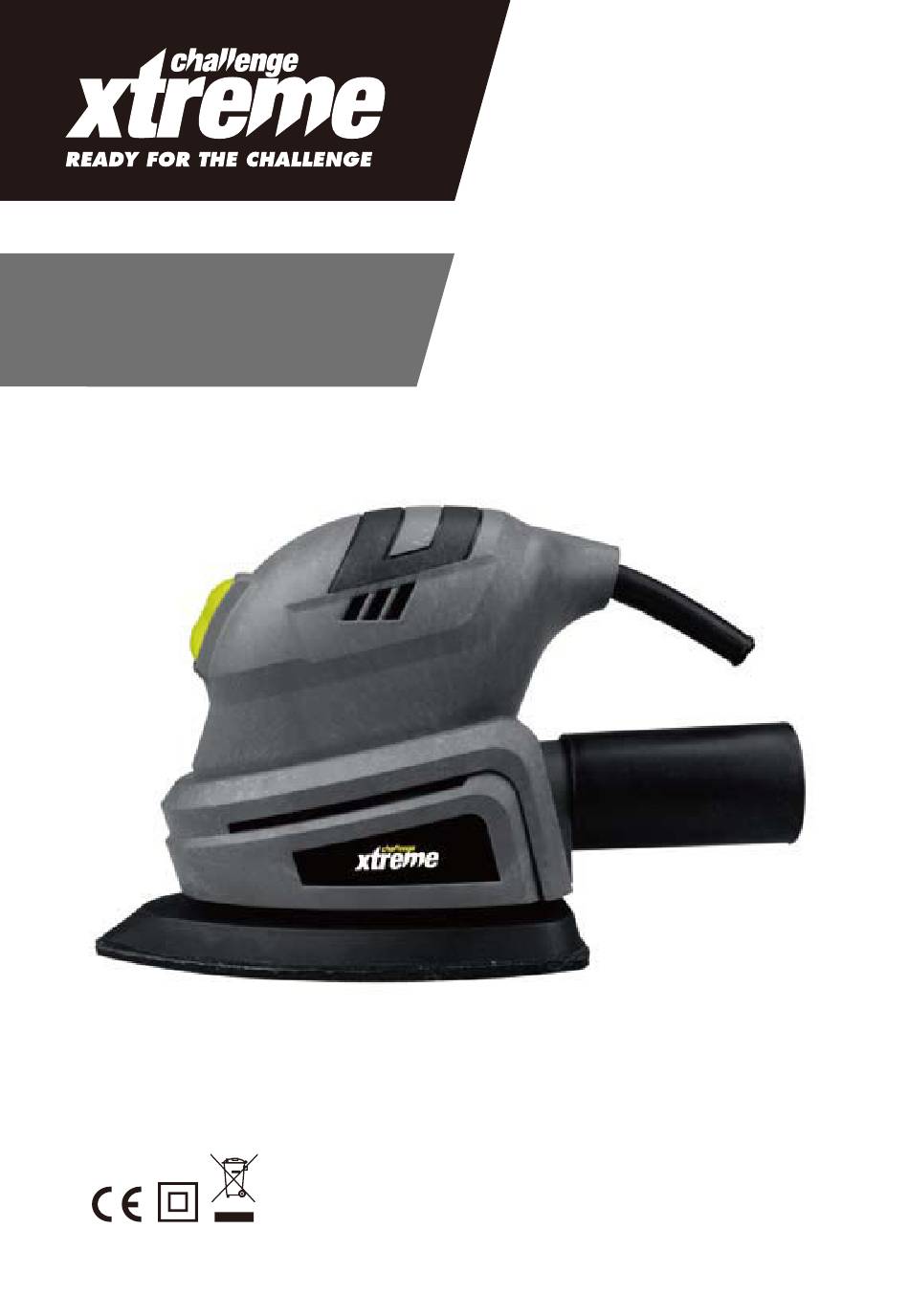

- Page 1 135W PALM DETAIL SANDER FS-CG-140X140X80-135A ORIGINAL INSTRUCTIONS...
-
Page 2: General Power Tool Safety Warnings
Your FS-CG-140X140X80-135A palm sander • Avoid body contact with earthed is suitable for surface sanding on wood, metal, or grounded surfaces, such as plaster and filler surfaces, removal of layers of... - Page 3 ORIGINAL INSTRUCTIONS • Do not use the power tool if the • Use personal protective equipment. switch does not turn it on and off. Always wear eye protection. Any power tool that cannot be controlled Protective equipment such as dust mask, with the switch is dangerous and must be non-skid safety shoes, hard hat, or hearing repaired.
- Page 4 ORIGINAL INSTRUCTIONS • Never use the machine with a This will ensure that the safety of the damaged cable. Do not touch the power tool is maintained. damaged cable and pull the mains ADDITIONAL SAFETY plug when the cable is damaged RULES FOR YOUR while working.
- Page 5 ORIGINAL INSTRUCTIONS SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear ear protection Wear dust mask Double insulation Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 6 ORIGINAL INSTRUCTIONS Pic A HELPLINE NO 08454 505299...
-
Page 7: Component List
ORIGINAL INSTRUCTIONS COMPONENT LIST 1. Sanding pad 2. On/Off switch 3. Dust extractor connection 4. Dust port 5. Soft touch handle CHECK THE DELIVERY PARTS Carefully remove the machine from its packaging and check as the following parts are complete: -- Palm sander -- Sandpaper x 6 -- dust port... -
Page 8: Technical Data
ORIGINAL INSTRUCTIONS TECHNICAL DATA Voltage 230-240V~50Hz Power 135W Rated speed 13000/min Pad size: 140x140x80mm Protection class Machine weight 0.9kg NOISE INFORMATION A weighted sound pressure 83dB(A) A weighted sound power 94dB(A) & K 3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745:... - Page 9 ORIGINAL INSTRUCTIONS WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
- Page 10 ORIGINAL INSTRUCTIONS OPERATING 2. Fitting the sand paper To fit the sand paper : INSTRUCTIONS Disconnect the plug from the electricity supply. Fix one side of the sandpaper, flush with one NOTE: Before using the tool, read the side of the backing pad, then attach the instruction book carefully.
-
Page 11: Maintenance
ORIGINAL INSTRUCTIONS 2. Switching On and Off that it runs at a higher stroke rate and high material removal is achieved. Switch on: 5. Fine Sanding Press ON/OFF switch. at the position “I” Attach a sanding sheet with fine grain. By lightly varying the application pressure or Switch off: changing the orbital stroke rate,... -
Page 12: Plug Replacement
ORIGINAL INSTRUCTIONS CAUTION Water must never come If the supply cord is damaged it must be into contact with the tool. replaced by a service agent or a similarly qualified person in order to avoid hazard. If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organisation. - Page 13 ORIGINAL INSTRUCTIONS DISPOSAL Do not dispose of electrical appliances with your domestic waste! The packaging comprises exclusively environmentally- friendly material. Dispose of it in your local recycling containers. GUARANTEE This product is selected for DOMESTIC USE ONLY and not for business use. This product is guaranteed against manufacturing defects for a period of 12 months.
- Page 14 We hereby certify that the product stipulated above complies with all the relevant provisions of the following EC new approach directive/s. This declaration of conformity is issued under the sole responsibility of the manufacturer Type of Product: 135W Palm Detail Sander Model Number: FS-CG-140X140X80-135A Cat / Article Number:7113897 Product Description: Photograph:...
