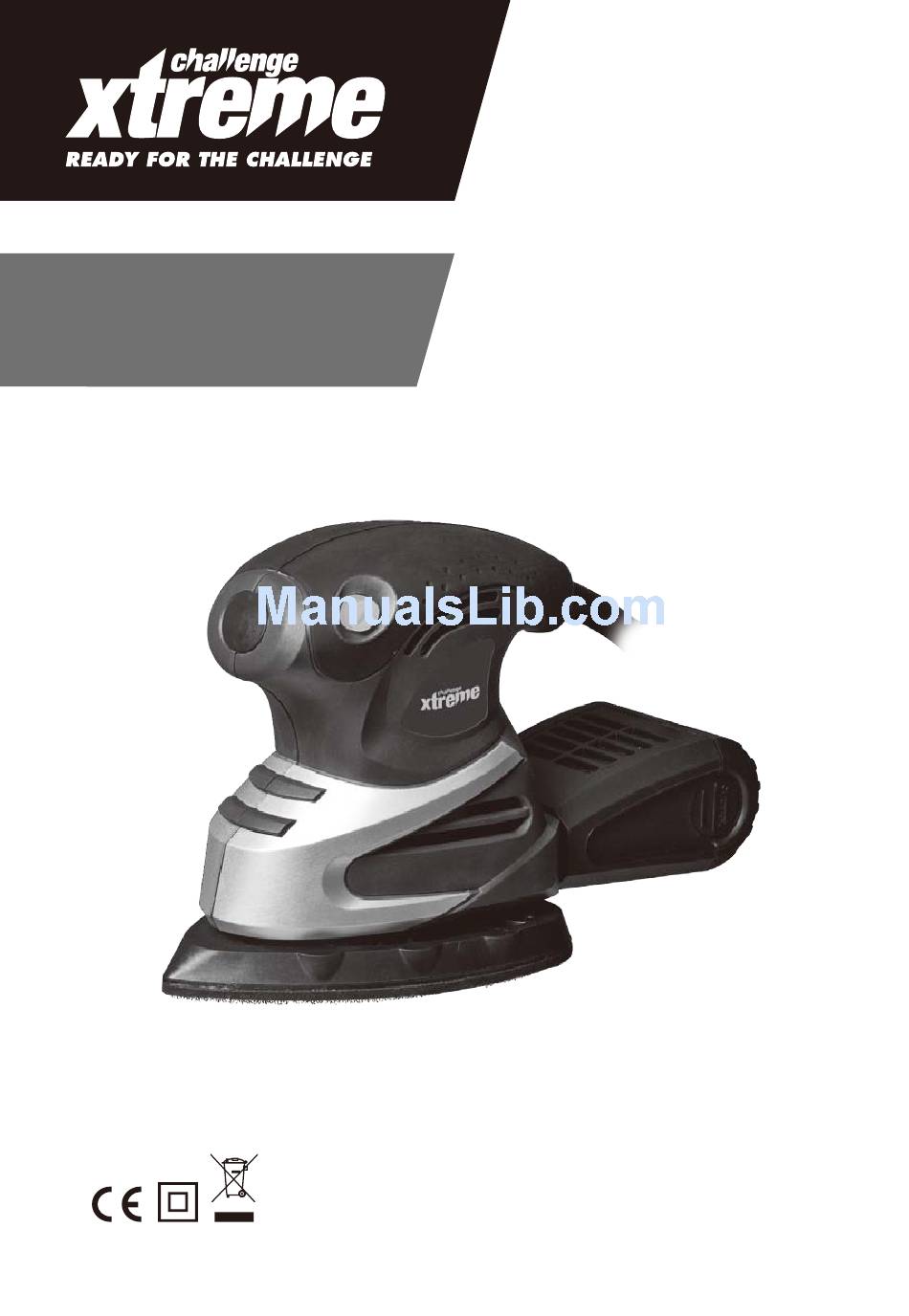

- Page 1 200W MULTI SANDER AJ56C ORIGINAL INSTRUCTIONS...
-
Page 2: General Power Tool Safety Warnings
2) Electrical safety INTRODUCTION • Power tool plugs must match the Thank you for purchasing a CHALLENGE XTREME 200W Multi Sander. outlet. Never modify the plug in We would like you to be completely any way. Do not use any adapter satisfied with your new product and... - Page 3 ORIGINAL INSTRUCTIONS • Do not use the power tool if the • Use personal protective equipment. switch does not turn it on and off. Always wear eye protection. Any power tool that cannot be controlled Protective equipment such as dust mask, with the switch is dangerous and must be non-skid safety shoes, hard hat, or hearing repaired.
- Page 4 ORIGINAL INSTRUCTIONS Replace damaged cords immediately. This will ensure that the safety of the power tool is maintained. • Unplug your tools before mounting or replacing accessories. • If the replacement of the supply • Caution, fire hazard! Avoid cord is necessary, this has to be done by the manufacturer or his agent overheating the object being in order to avoid a safety hazard.
- Page 5 ORIGINAL INSTRUCTIONS SYMBOLS WARNING! Whilst working with this power tool, To reduce the risk of injury, user hand/arm vibrations occur. Adopt must read instruction manual the correct working practices in order to reduce the exposure to vibration. Warning CAUTION! Do not let familiarity with Wear eye protection your sander make you careless.
- Page 6 ORIGINAL INSTRUCTIONS HELPLINE NO 08454 505299...
-
Page 7: Component List
ORIGINAL INSTRUCTIONS COMPONENT LIST 1 On/off switch 2 Soft grip handle 3 Dust box cover clamp 4 Dust collection box 5 Hook and loop base plate 6 Sanding paper 7 Motor housing ACCESSORIES Dust collection box Finger sanding pad 9 x mouse sanding paper ( 3 x 80#, 100#, 120#) 9 x finger sanding paper ( 3 x 80#, 100#, 120#) We recommend that you purchase your accessories from the same store that sold you the tool. -
Page 8: Technical Data
ORIGINAL INSTRUCTIONS TECHNICAL DATA Rated voltage 230-240V~50Hz Rated power 200W No load speed 15000/min Sanding base size 140x140x80mm Protection class Machine weight 1.6kg NOISE INFORMATION A weighted sound pressure 71dB(A) A weighted sound power 82dB(A) & K 3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745:... - Page 9 ORIGINAL INSTRUCTIONS WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being sandered.
- Page 10 ORIGINAL INSTRUCTIONS OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. 1) SWITCHING ON AND OFF (See Fig. A1,A2) Fig. B 3) EMPTY DUST BOX (See Fig. C) Fig. A1 Fig. C For more efficient operation, please empty the dust box every 15 minutes.
- Page 11 ORIGINAL INSTRUCTIONS • Before fitting sanding paper, remove any dust or debris from the hook and loop system on the base. • Match the holes in the sanding paper with the holes in the base. • Simply press the sanding paper to the base to attach it.
- Page 12 ORIGINAL INSTRUCTIONS • You can buy 40#, 60# sanding paper for Switch the sander on whilst it is resting on very corst sanding. the workpiece. Take care to hold the whole area of the base plate on the work. You can buy 180#, 240#, 320#, 400# Move the sander over the surface of the sanding paper for very fine sanding.
-
Page 13: Troubleshooting
ORIGINAL INSTRUCTIONS MAINTENANCE TROUBLESHOOTING Remove the plug from the socket • If your sander will not operate, check the before carrying out any power at the mains plug. • If the sander does not abrade surface, adjustment, servicing or checking the sanding paper. If the maintenance. -
Page 14: Plug Replacement
ORIGINAL INSTRUCTIONS PLUG REPLACEMENT Your Power Tool is supplied with a fitted plug, however if you need to fit a new plug follow the instruction below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown –... - Page 15 We hereby certify that the product stipulated above complies with all the relevant provisions of the following EC new approach directive/s. This declaration of conformity is issued under the sole responsibility of the manufacturer 200W Multi Sander AJ56C Type of Product: Model Number:...
