Page 2: Operation

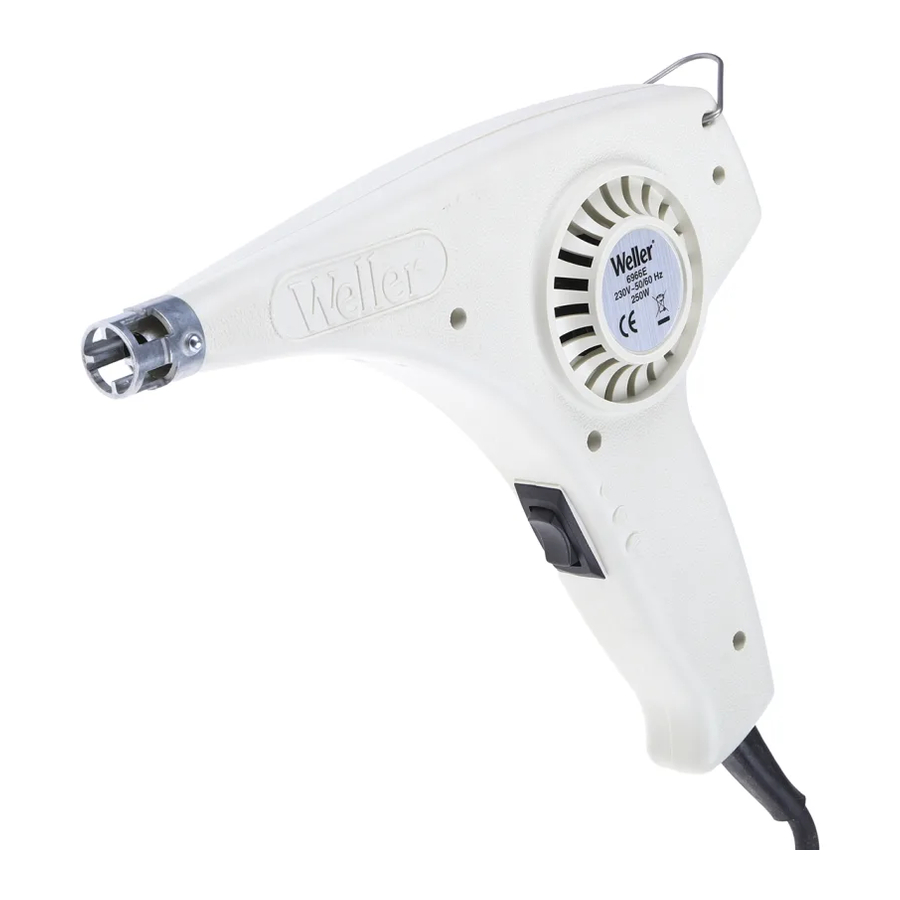

6966 HEAT GUN READ SAFETY INSTRUCTIONS ON PAGE 3 BEFORE OPERATING HEAT GUN. OPERATION 1. Connect power cord to main AC outlet. (Do not use DC). 2. Place appropriate baffle over nozzle of gun before turning power switch on. 3. The trigger power switch has three positions. - Page 3 Important Safety Instructions Read These Instructions Hidden areas such as behind walls, ceilings, floors, soffit boards and other panels may contain flammable materials that could be ignited by the heat gun when working in these locations. The ignition of these materials may not be readily apparent and could result in property damage and injury to persons.
- Page 4 II. Disassembly a. Insert diagonal pliers under head of ferrule drive screw (1) and remove. b. Slide ferrule (25) forward to remove. c. Open wire hanger (7) and remove. d. Remove screws (18) and (23) and screw and nut (8). e.
- Page 5 VI. Motor and Scroll Assembly a. For removal of motor and scroll assembly (10) follow steps 1 through 5 in Section II, and steps 1 through 5 in Section V. b. Remove motor and scroll assembly (10) without disconnecting heating element with diode assembly (4). c.
- Page 6 This warranty does not apply if the Heat Gun has been misused, abused, altered, tampered with, or used on voltage other than specified on the nameplate. At the end of the warranty period, Weller shall be under no further obligation expressed or implied.
