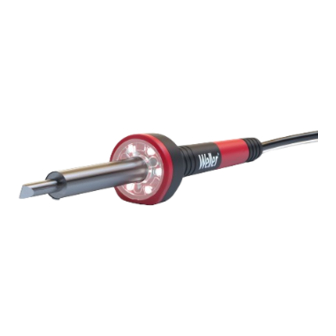

Weller WLIR30 Instruction Manual

WLIR30
WLIR60
WLIR80
WLIRPK80
EN

Translation of the original instructions

1
WLIR30 | WLIR60 | WLIR80
SI 120, SI 175, SI 251 SI 120, SI 175, SI 251
DE Betriebsanleitung ����������������7 CZ Návod k pouÏití ���������������������20 DE Betriebsanleitung ����������������7 CZ
GB Operating Instructions ��������8 PL Instrukcja obsługi ����������������21 GB Operating Instructions ��������8 PL
ES Manual de uso �����������������������9 HU Üzemeltetési utasítás �������22 ES Manual de uso �����������������������9 HU
FR Mode d'emploi ���������������������10 SK Návod na pouÏívanie ���������23 FR Mode d'emploi ���������������������10 SK
IT Istruzioni per l'uso �������������� 11 SL Navodila za uporabo ���������24 IT Istruzioni per l'uso �������������� 11 SL
NL PT Manual do utilizador Gebruiksaanwijzing ����������12 LV EE Lietosanas instrukcija Kasutusjuhend ���������������������25 NL PT Manual do utilizador Gebruiksaanwijzing ����������12 EE LV
SV Instruktionsbok ��������������������14 �����������13 LT Naudojimo instrukcija �������27 �������26 SV Instruktionsbok ��������������������14 �����������13 LT
DK Betjeningsvejledning ���������15 HEB ‫הוראות ההפעלה‬ ���������������������28 DK Betjeningsvejledning ���������15 HEB
FI Käyttöohjeet �������������������������16 BG български �����������������������������29 FI Käyttöohjeet �������������������������16 BG
GR Οδηγίες Λειτουργίας ��������17 RO România ��������������������������������30 GR Οδηγίες Λειτουργίας ��������17 RO
TR Kullanım kılavuzu ���������������18 HR Hrvatski ����������������������������������31 TR Kullanım kılavuzu ���������������18 HR
AR ‫التعليمات األساسية‬ �������������������19 AR ‫التعليمات األساسية‬ �������������������19
6x LED
2
3
WLIR30 | WLIR60 | WLIR80
LED
WLIRPK80
4
°C °F °C
EN
Read these instructions and the safety guidelines carefully
before starting up the unit and starting work.
Failure to observe the safety regulations results in a risk to life
and limb.
Keep these instructions in a place that is accessible to all users.
Please adhere to the operating instructions of the connected devices.

Safety information

Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury. Save all
warnings and instructions for future reference. Keep your work area clean and
tidy. Untidy workplaces and workbenches increase the risk of accidents and
injuries. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the appliance.
The device and packaging are not toys.Comply with the local injury prevention
regulations and safety regulations in the work area.
WLIRPK80
Keep other persons well away from your workplace.
The work area is out of bounds for children and unauthorised persons. Never
allow other persons to touch the soldering tool or cable.
WARNING Electrical shock
Do not use the soldering tool in a damp or wet environment.
„
Návod k pouÏití ���������������������20
Instrukcja obsługi ����������������21
Üzemeltetési utasítás �������22
Návod na pouÏívanie ���������23
Navodila za uporabo ���������24
Kasutusjuhend Lietosanas instrukcija ���������������������25
Naudojimo instrukcija �������26 �������27
‫הוראות ההפעלה‬ ���������������������28
български �����������������������������29 Never work on voltage-carrying parts.
România ��������������������������������30 „
Hrvatski ����������������������������������31
WARNING Fire hazard
Covering the soldering iron or the safety holder poses a fire hazard. Al-
ways keep objects well away from the soldering iron and safety holder.
Always keep objects well away from the soldering iron and safety
„
holder.
Keep all combustible objects, liquids or gases well away from the hot
„
soldering tool.
Do not place or leave the hot soldering tip on the worktop or on
„
plastic surfaces.
Avoid unintentional operation.
„
Disconnect the soldering tool from the power supply while not in
„
use.
45° Keep explosive and flammable objects well away from the device.
„
WARNING Risk of burns
The soldering tip becomes very hot during soldering work. There is a
risk of burns from touching the tips. After the soldering process, the
soldering tool and the workpiece holder are still hot.
Always place the soldering tool in the safety rest while not in use.
„
Make sure the safety holder is stable.
Do not touch the hot soldering tips and keep them away from
„
45°
inflammable objects.
Only replace solder tips when cold
„
Risk of burning through liquid solder. Protect yourself against solder
splashes.
Wear appropriate protective clothing to protect yourself against
„
burns. Protect your eyes by wearing eye protection.
When working with adhesives, special attention must be paid to the
„
warning information provided by the adhesive manufacturer.
Store your soldering tool in a safe place..When not in use, units and tools
should be stored in a dry, high or locked area out of the reach of children.
Make sure that unused soldering tools are free of voltage and de-pressurised.
Always place the soldering tool in the safety rest while not in use.
Prevent the soldering tip from becoming seized. A thin graphite layer applied
to the thin end of the soldering tip, plus frequent withdrawal of the soldering
tip, prevents unpleasant seizure. During soldering breaks, always ensure that
the soldering tip is well tin-coated.
Always use the correct soldering tin. For normal electrical connections, use
a solder with as low an acid content as possible together with a mild fluxing
agent. Soldering tip range: Please visit www.apex-tools.eu. www.apex-tools.
eu.
Do not use the cable for purposes other than those for which it is inten-
ded. Never carry the unit by the cable. Do not use the cable to pull the plug
out of the socket. Protect the cable against heat, oil and sharp edges.
Be alert. Pay attention to what you are doing. Be smart when using the unit.
Do not use the soldering tool if you are having difficulty concentrating.
Avoid abnormal posture. Arrange your work station in an ergonomically cor-
rect way. Avoid bad posture when using the unit, as this can lead to postural
problems.
The soldering tool must be operated only in perfect technical
working order. Safety devices must not be deactivated.
Faults and defects must be repaired immediately. Before using the unit
/ tool, safety devices must be carefully checked to make sure that they are
functioning properly and in the manner intended. Check that moving parts are
functioning properly and are not sticking, and whether parts are damaged. All
parts must be correctly fitted and must satisfy all the requirements necessary
to guarantee troublefree operation of the unit.
Use the correct tool. Use only accessories or auxiliary devices which are in-
cluded in the list of accessories or approved for use by the manufacturer. Use
WELLER accessories or auxiliary devices on original WELLER equipment
only. The use of other tools and other accessories can cause injury.
Secure the workpiece. Use clamping fixtures to hold the workpiece.
Use a solder fume extraction unit. If appliances for connecting solder
fume extraction units are available, ensure that they are connected and used
properly.
°F

Specified Conditions Of Use

Use the soldering iron exclusively for the purpose indicated in the Operating
Instructions of soldering and desoldering under the conditions specified here.
The unit must not be exposed to temperatures above 50°C, naked flame or
condensed solvents. Protect against moisture and direct sunlight.

Care and maintenance

If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Use original
replacement
parts only.
Risk of burns
WARNING
English
Only replace solder tips when cold
„
The soldering tool must be left switched off in the safety rest for at least 3
minutes until the soldering tip has cooled down.

Warranty

Limited Warranty – Warranty Periods and Exceptions ATG warrants to each
original Customer of Products sold by ATG that such Products are, at the time
of delivery to the original Customer and for the applicable period of 7 years,
free of material and workmanship defects for the applicable periods noted
('the Warranty Period")
For more information please visit
www.weller-tools.com.

Symbols

Caution!
Australian Conformity
Mark

Technical Data

Soldering iron
High temperature Limit °C
High temperature Limit °F
Power consumption
Mains supply voltage
Tip type series
LED Lights
Subject to technical alterations and amendments.
Soldering iron
High temperature Limit °C
High temperature Limit °F
Power consumption
Mains supply voltage
Tip type series
LED Lights
Subject to technical alterations and amendments.
GERMANY
Weller Tools GmbH
Carl-Benz-Strabe 2
74354 Besigheim
Tel: +49 (0)7143 580-0
Fax: +49 (0)7143 580-108
AUSTR ALIA
Apex Tool Group Pty Ltd
519 Nurigong Street, Albury
NSW 2640
salesaus@apextoolgroup.com
Tel: +61 (2)6058-0300
Fax: +61 (2)6021-7403
GREAT BRITAIN
Apex tool Group (UK Operations)
Limited
Piccadilly, Tamworth
Staffordshire B78 2ER
www.weller-tools.com
© 2021, Apex Tool Group, LLC.
Weller® is a registered Trademark and registered
Design of Apex Tool Group, LLC.
Check all connected cables on a
regular basis. If power tools are
damaged, they must be immediately
removed from use.
Repairs must always be referred
to a Weller-trained specialist.
Warning! Risk of burns
Read the operating
instructions!
British Conformity Mark
WLIR30 WLIR60
400 °C 485 °C
750 °F 900 °F
30 W 60 W
230 VAC / 50 Hz
4 mm (5/16") 6 mm (1/4")
Yes
WLIR80 WLIRPK80
485 °C 485 °C
900 °F 900 °F
80 W 80 W
230 VAC / 50 Hz
10 mm (3/8")
10 mm (3/8")
Yes No
