DC M2 OLED Meter Instructions
PN 1830 / PN 1832 / PN 1833 / PN 1834
Installation Checklist
• Check for components included
• Read Warning and Cautions
• Read QuickStart Installation Guide for mounting instructions
• Read System Overview, Mounting Considerations, Detailed Wiring,
and Sensing Description
• Read QuickStart Installation Guide for installation notes
• Follow Initial System Setup instructions
• Configure Displays
• Configure Alarms
• Configure Relays
Display Size
Power Supply
Power Consumption
* Variable with voltage, display intensity, and sleep mode
Regulatory
Monitor face is IP66 – protected against powerful water jets
when installed according to instructions
1830 Specifications
Voltage
Voltages
12V, 24V, 48V
Range
8V–70V DC
Resolution
0.01V DC
Current
Shunt Included
1 × PN 8255 (500A /50mV)
Range
−500A to 500A
Resolution (100 to 500)
1A
Resolution (0.0 to 99.9)
0.1A
Alarm / Relay Activation
High and Low Voltage, High Current,
and Low Battery
1832 Specifications
Current
Shunt Included
1 × PN 8255 (500A /50mV)
Range
−500A to 500A
Resolution (100 to 500)
1A
Resolution (0.0 to 99.9)
0.1A
Alarm / Relay Activation
High Current
1833 Specifications
Voltage
Range
8V–70V DC
Resolution
0.01V DC
Alarm / Relay Activation
High and Low Voltage
1834 Specifications
Voltage
Range
8V–70V DC
Resolution
0.01V DC
Current
Shunt Included
1 × PN 8255 (500A /50mV)
Range
−500A to 500A
Resolution (100 to 500)
1A
Resolution (0.0 to 99.9)
0.1A
Alarm / Relay Activation
High and Low Voltage, and High Current
55mm x 28mm
7V–70V DC
0.3W–1.0W*

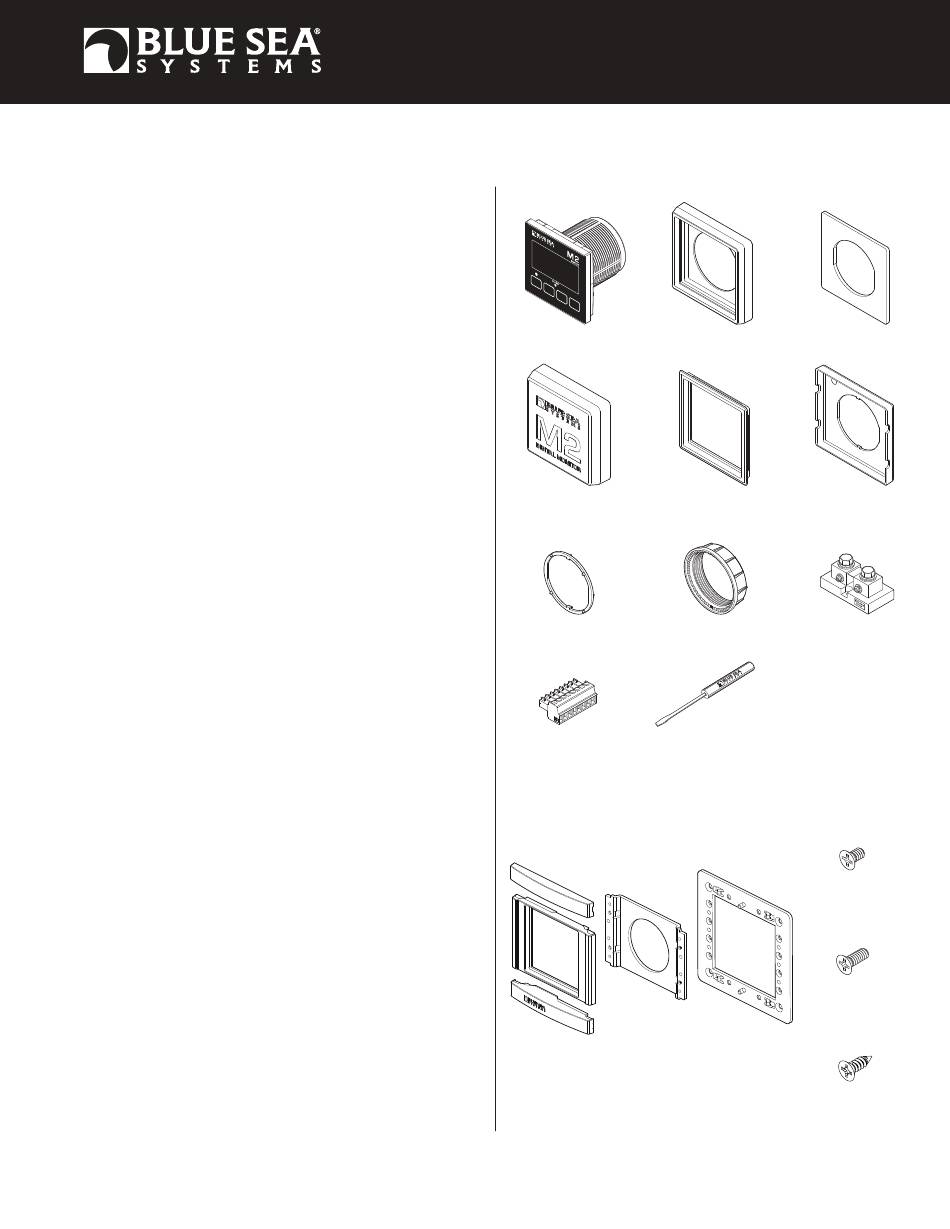

Components Included
M2 Head Unit
Surface Mount Bezel
Surface Mount Cover
Flat Mount Bezel
Mounting Ring
Mounting Nut
Connector
Screwdriver
Retail Package Only
360 Panel Mounting Kit
(PN 1525 sold separately)
Header
Bezel
Mount
Carrier
Mount
Footer
Surface Mount Gasket
and Seal
Flat Mount Clamp
PN 8255 Shunt (1X)
1830, 1832, 1834 Only
#6-32 x 1/4"
Flat Head
Machine Screws
(4X)
Panel
Frame
#6-32 x 3/8"
Flat Head
Machine Screws
(4X)
#8 x 1/2"
Flat Head Sheet
Metal Screws
(4X)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue Sea Systems 1830
Summary of Contents for Blue Sea Systems 1830
- Page 1 DC M2 OLED Meter Instructions PN 1830 / PN 1832 / PN 1833 / PN 1834 Components Included Installation Checklist • Check for components included • Read Warning and Cautions • Read QuickStart Installation Guide for mounting instructions • Read System Overview, Mounting Considerations, Detailed Wiring, and Sensing Description •...
-
Page 2: Resource Information
Resource Information State of Charge (SOC) http://bluesea.com/viewresource/1324 AC Current Measurement http://bluesea.com/viewresource/86 Warning and Caution Symbols WARNING: The symbol refers to possible injury to the user or significant damage to the meter if the user does not follow the procedures. CAUTION: The symbol refers to restrictions and rules with regard to preventing damage to the meter. -
Page 3: Mounting Considerations
Mounting Considerations M2 Digital Meters have three mounting methods: Surface mount, Flat panel mount, and 360 panel mount. When surface mounted per instructions the unit face is waterproof to IP66. Flat panel and 360 mounting systems are not waterproof. The unit should not be flat panel or 360 mounted if used in an exposed location. -
Page 4: Pin-Out Tables
DC Functions (1830, 1832, 1833, 1834) 1830 DC SoC Monitor measures the voltages of up to three battery banks and current draw on one battery bank. Provides battery State of Charge (SoC), capacity, amp hours (Ah) remaining, and charge cycles. -
Page 5: Detailed Wiring
Detailed Wiring 1830 DC SoC Monitor 1832 DC Ammeter Battery 2 Battery 1 Battery 1 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Optional Shunt Battery 2 Battery 3 Relay Alarm LED 12/24V... - Page 6 Detailed Wiring continued 1830 & 1834 Multiple Batteries Battery 1 1 2 3 4 5 6 7 8 Battery 2 Battery 3 Relay Alarm LED 12/24V 7713, 12V 1070 8033, Amber 7717, 24V 8171, Red 8172, Green 1830 & 1834 Single Battery...
- Page 7 In addition, an inline fuse rated at 5A should be used to protect against shorts. In typical applications, a power source is connected to the Relay+ pin and a load is connected to the Relay Out to Load connection. In the P/Ns 1830, 1833, and 1834 meters, the Relay+ connection can also be used to monitor a voltage.
- Page 8 External Alarm (1070 Floyd Bell Turbo) The Relay+ terminal can support an external audible alarm. Such as the Floyd Bell Turbo Alarm (PN 1070). External Alarm Supply 5 to 30V DC 1 2 3 4 5 6 7 8 + Red - Silver 1070 External Relay...
-
Page 9: Getting Started
Example Screens From PN 1830 SoC Monitor When an M2 Meter is initially powered up, it will display the Blue Sea Systems Logo,its serial number and its Software revision. After a couple of seconds, the unit will display a high-level System Summary screen. -
Page 10: Configuring The Meter
Menu Press the Menu button to bring up a shortcut menu to for additional summary screens as well as to access the Setup menus. Press the UP ↑ and DOWN ↓ arrow buttons to move the cursor over the options and press the Select button to see a selected display. -
Page 11: Current Alarm
Voltage alarms can be set for high (Hi) or low (Lo) voltage conditions. Current Alarm The current alarm can only be set for over current conditions. State-of-Charge (SoC) Alarm (PN 1830 Only) The state-of-charge alarm can only be set if the state of charge is below a certain threshold. DC Alarm Dly An alarm delay can be specified so that alarms don’t immediately trigger. - Page 12 Notification The Notification setting controls whether or not a notification is displayed when a relay is activated. Notifications will show which relay threshold was surpassed and for which channel. Scroll to Notification and press Select to change the setting. Press the LEFT ← or RIGHT → arrow buttons to choose either ON or OFF.
-
Page 13: Display Setup
AUTO dim mode. In this mode the meter will automatically dim after two minutes when the ambient light is low (night mode). When the light comes back on, the meter will revert to its normal brightness. Units (1830 Only) Select either °F or °C. These are the units used to specify the battery temperature. - Page 14 However, any associated alarm or relay settings are still activate. To de-active the alarm or relay, disable them in the Alarm Setup and Relay Setup menus. Set State-of-Charge (SoC) to FULL (1830 Only) When this option is selected, the meter will consider the battery’s present State-of-Charge to be FULL. To do this, scroll to Ok and press Select. The screen will then return to the meter summary display.
- Page 15 Full Chrg Volts (PN 1830 Only) This setting indicates the voltage at which the battery is considered to be fully charged. The available range is 0.1 V to 70.0V. This should be set to the absorption voltage of your charger. If you don’t know the absorption voltage, you can figure the absorption voltage out by observing the output voltage of the charger once it enters the absorption phase.
-
Page 16: Version Info
DC2, DC3, DC4 Setup Enable Turn the channel on or off. If Enable is set to OFF then the channel will not be displayed in the main menus. The alarms and relay functions for that channel will not be disabled. To disable the alarm and relay for a channel, set the alarm and relay for each channel to OFF. Version Info The Version Info option in the Setup menu displays the product name, serial number, and software version. -
Page 17: Software Upgrade
• File Not Found - A valid flash image was not found on the meter. The downloaded upgrade filename should be image.xxxx.bin, where xxxx is the model number of the meter. i.e., image.1830.bin, image.1832.bin, etc. • Corrupted File - The image is not valid or corrupted. Re-download the updated image from www.bluesea.com. - Page 18 425 Sequoia Drive Bellingham, WA 98226 USA p 360.738.8230 p 800.222.7617 USA and Canada Customer Service f 360.734.4195 conductor@bluesea.com www.bluesea.com 980022180 Rev. 004...
