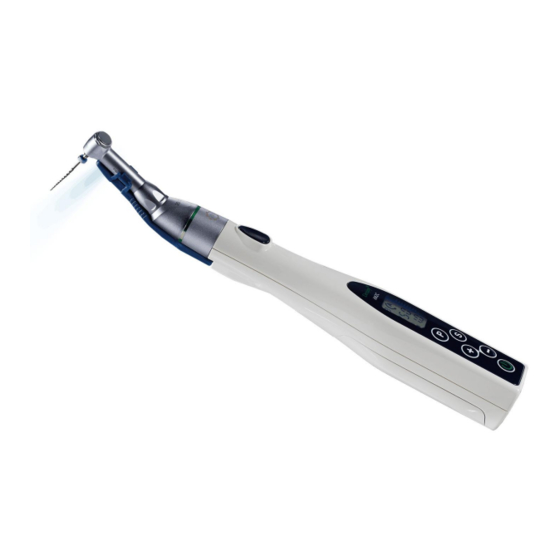

Denjoy iMate-II User Manual

Cordless endo motor
Hide thumbs Also See for iMate-II:
Table of Contents

Advertisement

Quick Links

Download this manual

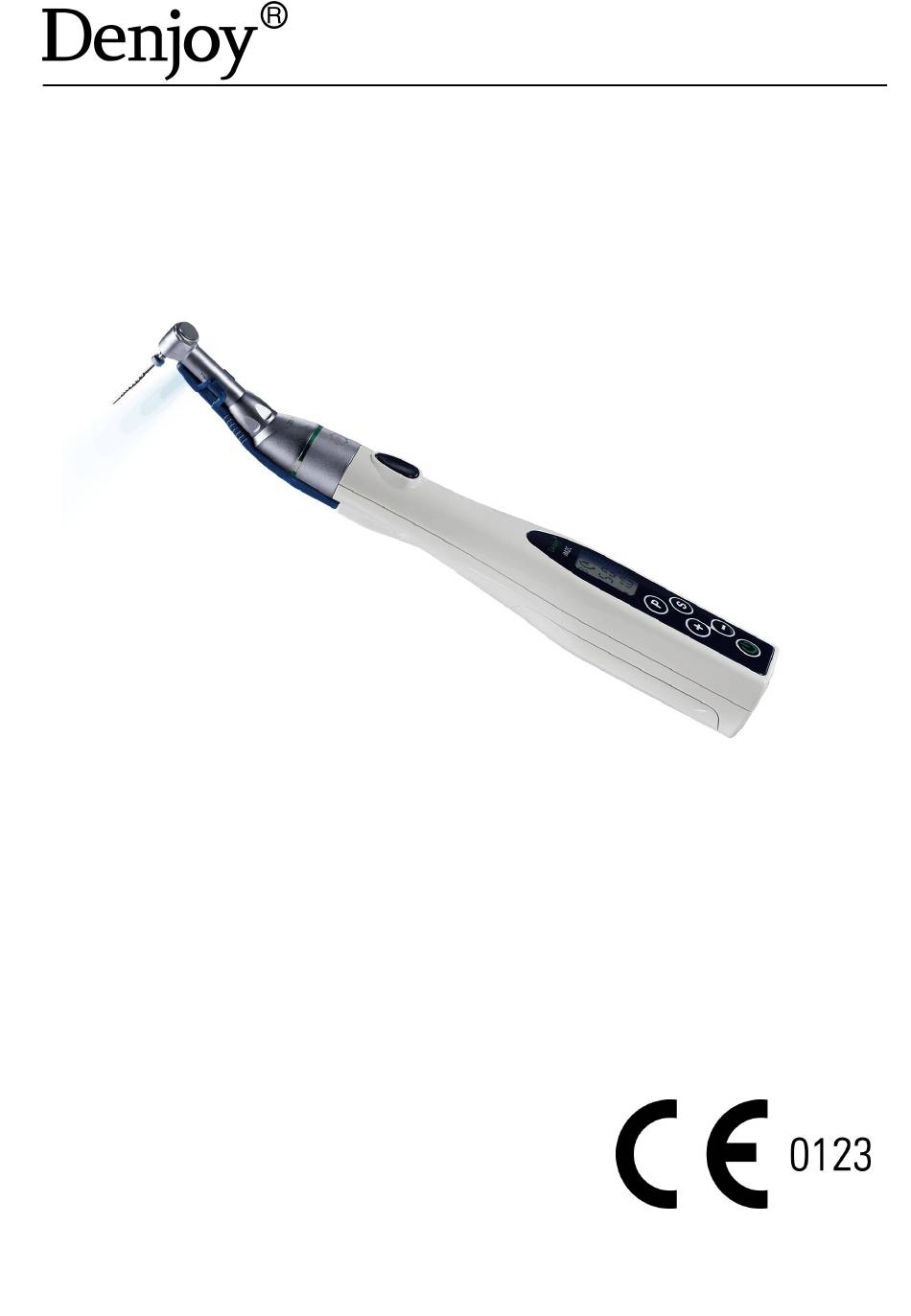

USER MANUAL
iMate-II Cordless Endo Motor
*The unit must be installed by a qualified engineer
*Only for user by dental professionals
*Read this manual carefully before installation or operation
Rev. 02/01/18 VER SMS-IM2C20180102-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMate-II and is the answer not in the manual?

Questions and answers

Related Manuals for Denjoy iMate-II

Summary of Contents for Denjoy iMate-II

  • Page 1 Rev. 02/01/18 VER SMS-IM2C20180102-EN USER MANUAL iMate-II Cordless Endo Motor *The unit must be installed by a qualified engineer *Only for user by dental professionals *Read this manual carefully before installation or operation...

  • Page 2: Table Of Contents

    Rev. 02/01/18 VER SMS-IM2C20180102-EN CONTENTS SECTION 1: GENERAL INTRODUCTION SECTION 2: MAIN TECHNICAL INDEX SECTION 3: SYMBOL SECTION 4: PRODUCT STRUCTURE SECTION 5: OPERATION PANEL AND LCD SCREEN SECTION 6: OPERATION SECTION 7: NOTICE SECTION 8: TOUBLESHOOTING SECTION 9: MANTENANCE & SERVICE SECTION 10: STERILIZATION SECTION 11: ENVIRONMENTAL REQUIREMENTS SECTION 12: PACKING LIST...
  • Page 3 DENJOY DENTAL CO., LTD has right to improve shape and structure of the device, change any information and technical specification of this manual all the time, and no...
  • Page 4 Rev. 02/01/18 VER SMS-IM2C20180102-EN CONTACT INFORMATION The device is manufactured by: DENJOY DENTAL CO., LTD Address: F4, Building A4, Lugu Medical Device Park, No.229 Guyuan Road, Changsha, 410205 P. R. China Authorized European Representative: Company name: LANDLINK GMBH Address: DORFSTRASSE 2/4, 79312 EMMENDINGEN,...

  • Page 5: Section 1: General Introduction

    Rev. 02/01/18 VER SMS-IM2C20180102-EN SECTION 1：GENERAL INTRODUCTION Cordless Endo Motor is an endodontic operation instrument. Endo motor function is a kind of endodontic micromotor to drive Ni-Ti instruments, which can assist the dentists to shape more standard root-canal in the process root-canal treatment...
  • Page 6 Rev. 02/01/18 VER SMS-IM2C20180102-EN 1, This product is based on ergonomic design, compact body and easy to carry. 2, Optional 20:1 mini reciprocating push-style contra angle can be used with universal Hand file 3, 6 different programs setting can be preset and saved according the requirement of the operator.

  • Page 7: Section 2: Main Technical Index

    Rev. 02/01/18 VER SMS-IM2C20180102-EN SECTION 2： MAIN TECHNICAL INDEX Model: iMate-II Trade Name: iM2C Type of protection against electric shock: - Class II equipment: Degree of protection against electric shock: - Type B applied part: Degree of protection against ingress of water: IPX0...
  • Page 8 Rev. 02/01/18 VER SMS-IM2C20180102-EN Cautions Authorized Representative European Community Mark: conforms essential requirements of the Medical Device Directive 93/42/EEC. Date of manufacture. Manufacturer Specifies serial number Type B applied part Refer to instruction manual / booklet The device should not be used after the end of the shown or the day...

  • Page 9: Section 4: Product Structure

    Rev. 02/01/18 VER SMS-IM2C20180102-EN DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Battery power sign displayed on the LCD screen SECTION 4：PRODUCT STRUCTURE 1 Contra-angle 2 Handpiece 3 Charging stand...

  • Page 10: Section 5: Operation Panel And Lcd Screen

    Rev. 02/01/18 VER SMS-IM2C20180102-EN SECTION 5：OPERATION PANEL AND LCD SCREEN OPERATION PANEL...
  • Page 11 Rev. 02/01/18 VER SMS-IM2C20180102-EN Switch-on and Switch-off the Unit (POWER key Switch-on ● Holding down the POWER key for more than one second, and the LCD panel lights. Switch-off ● Holding down the POWER key for more than one second. Note: If 5 minutes pass without operation, the power turns off automatically.
  • Page 12 Rev. 02/01/18 VER SMS-IM2C20180102-EN The speed and torque settings can be changed during operation. Its switching sequence is same as above (User can not manually set the torque under the program P2 and P4 ). PROGRAM The present program number can be displayed. The program number is available from 1 to 6.
  • Page 13 Rev. 02/01/18 VER SMS-IM2C20180102-EN P3：Reverse rotation 360°. Auto-forward when blocked. Recover reverse when load moves. P4：Exclusive for forward-reciprocating system. Forward rotation 150°. Reverse rotation 30°(Approx.) P5： Forward rotation 360°. Stopped when blocked. For manual-file reciprocating contra angle Or taking out broken needle by reverse-blade file.
  • Page 14 Rev. 02/01/18 VER SMS-IM2C20180102-EN Note: 1) For P5 and P6 mode, the torque can be higher than 4.0N.cm.When appears, it means that the torque is over 4.0N.cm, it’s a special torque for taking out broken file. 2) Definition of forward: clockwise rotation. UP/DOWN To adjust the set value for each parameter Speed: rpm, Torque: N.CM...
  • Page 15 Rev. 02/01/18 VER SMS-IM2C20180102-EN means program 1, 2, 3, 4,5, 6. 6 different programs setting can be preset and saved according the requirement of the operator Speed of 450 rpm. Torque of 2.4. Battery remaining ·MODE DISPLAY Display present mode(Torque can not be adjusted when reciprocate-system used, P2 and P4) ：...
  • Page 16 Rev. 02/01/18 VER SMS-IM2C20180102-EN ：Forward-reciprocating ：Forward rotation 360°. Stopped when blocked（no reverse） ：Reverse rotation 360°. Stopped when blocked. Reverse-reciprocating, adjustable speed 200～400. Reverse rotation 150°,forward rotation 30°(approx.). Forward-reciprocating, adjustable speed 200～400. Forward rotation 150°,reverse rotation 30°(approx.) BATTERY REMAINING Displays the present remaining amount of the battery,The mark is animated when the battery is charging.
  • Page 17 Rev. 02/01/18 VER SMS-IM2C20180102-EN :Full charge : Approximately 30-80% remains : Less than 30% remains. In this case, the auto reverse function may not activate : Battery is drained or very low battery voltage. Charge the battery. Note: It’s normal to find that the mark animated during the operation, for safety, the motor will shut down when the battery charged.

  • Page 18: Section 6: Operation

    Rev. 02/01/18 VER SMS-IM2C20180102-EN 4. Click ON/OFF button when appears, “ ” subsequently ,one “click” will be heard, cancellation begins, after finished, two “click” followed, and return to home screen) 5. Initialization is completed, when LCD panel display normally. Note: initialization is chose when the LCD screen does not appear in accordance with the selected mode or settings.
  • Page 19 Rev. 02/01/18 VER SMS-IM2C20180102-EN Disconnecting When removing the contra-angle, pull it straight out (as above) Note: ^ When attaching and detaching the contra-angle, turn the power off beforehand. ^ Check that the contra-angle is securely assembled to the motor handpiece. 3, Inserting and Removing the File File insertion: Insert the file into the chuck until is stops.
  • Page 20 Rev. 02/01/18 VER SMS-IM2C20180102-EN Note: ^ When attaching and detaching the file, turn the power off beforehand. ^ After the file is locked in place, lightly pull out the file to make sure the file is locked. ^ Always clean the shank of the file to be installed. Allowing dirt to enter the chuck could cause deterioration of chucking force.
  • Page 21 Rev. 02/01/18 VER SMS-IM2C20180102-EN The LED lamp holder can be autoclaved at 135℃. 5, Operation: Press the Power button to start the machine, press the engine on/off button to start the rotation,and the LED lighted.Press again the engine on/off button to stop the rotation,and the LED light will be off 8 seconds later.

  • Page 22: Section 7: Notice

    Rev. 02/01/18 VER SMS-IM2C20180102-EN The device will turn off automatically after 5 minutes of no-operation. Program memory setting. Because last time you already saved the program setting, this program setting will remain the same until you change the program and save again. SECTION 7：NOTICE Follow the file manufacturer’s instructions for use of ·...

  • Page 23: Section 8: Toubleshooting

    Rev. 02/01/18 VER SMS-IM2C20180102-EN charging stand. Please use our power adapter for charge the device. · Please use the contra-angle we approved to avoid the · possible fault . Our Motor handpiece will not make electromagnetic · interference to other equipment. Forbidden: Don’t use this device with high-frequency surgical equipment simultaneously,...
  • Page 24 Rev. 02/01/18 VER SMS-IM2C20180102-EN The press of the power button is short. Please long press the power button The POWER button is broken. Contact with your dealer. The battery The adapter didn’t connect well. can’t Please recheck the connection charged. The major machine didn’t put on the charger base correctly.

  • Page 25: Section 9: Mantenance & Service

    Rev. 02/01/18 VER SMS-IM2C20180102-EN The motor will shut off in Energy 15 minutes if the operation consumption situation without heavy Protection change Fault Calibration. Exit Correcting calibration directly When current over theoretical Protection value Note: Relief Measures：For all the fault codes，please press any button to eliminate fault code except the POWER.
  • Page 26 Rev. 02/01/18 VER SMS-IM2C20180102-EN spray. ^ Lubricate after each use and before sterilization. ^ Screw the spray nozzle onto the spray with approx. 10 turns . ^Insert the spray nozzle into the rear part of the contra-angle and lubricate for 2-3 seconds until oil comes out from the contra-angle head.

  • Page 27: Section 10: Sterilization

    Rev. 02/01/18 VER SMS-IM2C20180102-EN nearby the fire. SECTION 10：STERILIZATION Please note: Please autoclave contra angle,file and LED holder only Before autoclave contra angle, please use AR spray for cleaning the contra angle. Don’t over 135℃ during the autoclave for accessories(121℃ for 20 minutes or 132℃ for 15 minutes) Please seal the unused device into the sterilization bag and store it in a clean place.

  • Page 28: Section 12: Packing List

    Rev. 02/01/18 VER SMS-IM2C20180102-EN OPERATING CONDITIONS Ambient temperature: 5℃ ~ 40℃ Relative humidity range: ≤80% Atmospheric pressure: 70kPa~ 106kPa STORAGE AND SHIPPING CONDITIONS Ambient temperature: -40℃ ~ 55℃ Relative humidity range: ≤80% Atmospheric pressure: 50kPa ~ 106kPa Equipment is not suitable for storage in the presence of sunlight, rain, dust, aggressive gas and chemical volatiles, keep it in good ventilation.
  • Page 29 Rev. 02/01/18 VER SMS-IM2C20180102-EN The device is maintained free of charge and doesn't require any routine maintenance within warranty period. Do not modify and disassemble the device. This instrument described below has been fully inspected and confronts to the current products specification.
  • Page 30 Guidance and manufacturer’s declaration - electromagnetic emissions The [iMate-II] is intended for use in the electromagnetic environment specified below. The customer or the user of the [iMate-II] should assure that it is used in such an environment Emissions Compliance Electromagnetic...
  • Page 31 It may be necessary to take mitigation measures, such as re-orienting or relocating the [iMate-II] or shielding the location. Table 2 Guidance and manufacturer’s declaration - electromagnetic emissions...
  • Page 32 Rev. 02/01/18 VER SMS-IM2C20180102-EN The [iMate-II] is intended for use in the electromagnetic environment specified below. The customer or the user of the [iMate-II] should assure that it is used in such an environment Immunity Complian Electromagne Test 60601 ce level...
  • Page 33 Rev. 02/01/18 VER SMS-IM2C20180102-EN The electrical fast transient burst (EFT) is generated by the switching of inductive loads. Separation between the equipment and other loads shall be considered before installation. Mains filter is required, if necessary. Mains power Surge ±1 kV ±1 kV quality should line(s) to...
  • Page 34 70% U (30% dip mains (30% dip in U interruptions, it in U for 25 recommended for 25 cycle the [iMate-II] cycle be powered <5% U from an <5% U (>95% dip uninterruptible (>95% in U power supply dip in U for 5s or a battery.
  • Page 35 Guidance and manufacturer’s declaration - electromagnetic emissions The [iMate-II] is intended for use in the electromagnetic environment specified below. The customer or the user of the [iMate-II] should assure that it is used in such an environment Immunit Compli Electromagnetic...
  • Page 36 Rev. 02/01/18 VER SMS-IM2C20180102-EN calculated from the equation applicable to Conduct 3Vrms the frequency of the ed RF 150KHz transmitter. Recommended 61000-4- 80MHz separation distance 3 V/m d=1.2 3 V/m d=1.2 80MHz 80MHz to 800MHz Radiated d=2.3 2.5GHz 800MHz to 2.5GHz where p is the maximum output 61000-4-...
  • Page 37 Rev. 02/01/18 VER SMS-IM2C20180102-EN electromagnetic site survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
  • Page 38 VER SMS-IM2C20180102-EN transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the [iMate-II] is used exceeds the applicable RF compliance level above, the [iMate-II] should be observed to verify normal operation. If abnormal...
  • Page 39 Rev. 02/01/18 VER SMS-IM2C20180102-EN Rated Separation distance according to maximum frequency of transmitter output power of 150 kHz to 80MHz to 800MHz to transmitt 80 MHz 800MHz 2.5GHz d=1.2 d=1.2 d=2.3 0,01 0.12 0.23 0.38 0.73 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is...
  • Page 40 Rev. 02/01/18 VER SMS-IM2C20180102-EN WARRANTY REGISTRATION FORM Item Name: Model Name: Serial No.: Date of Purchase: Name: Address: Phone: Email: Name of Distributor: Authorized Distributors: Stamp and Signature...
